Features:

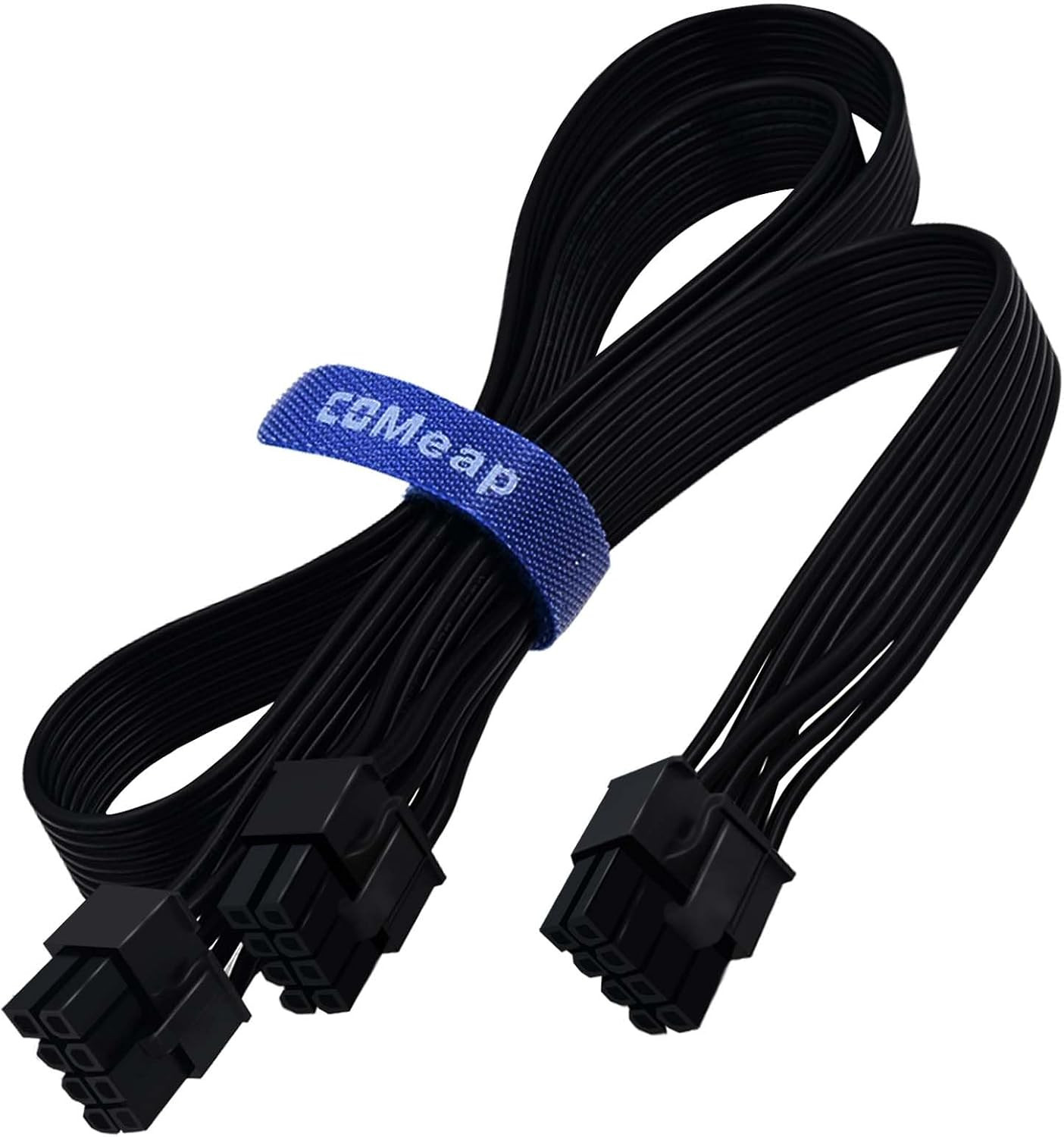

The COMeap 8 Pin male to Dual 2x 8 Pin (6+2) male cable is to provide a convenient solution for adding two extra PCI Express connectors to your existing power supply;

Support:

Silverstone, EVGA semi-modular 650GQ/750GQ/850GQ/1000GQ 1600T2/1000T2/850T2/750T2 1600P2/1200P2/1000P2/850P2/750P2/650P2 1000G3/850G3/750G3/650G3/550G3 NEX650G/NEX750G NEX750B/750B1 SUPERNOVO B2 850w 450B3/550B3/650B3/750B3/850B3 Supernova 850 GA 850BQ/750BQ 650GS/550GS(Doesn't work with 1000PS/850GS/1050GS) some types of Thermaltake & COUGAR PSU with 8 pin PCIe port.

Specification:

Cable Length: 24-inch + 8-inch(62cm+21cm) Connectors: 2x 8 pin (6+2) PCIe male, 1x 8 pin PCIe male Gauge: 1007-18AWG(standard tin-coating copper wire) Including: PCIe 8 Pin male to Dual 2x 8 Pin (6+2) male cable*1pcs; Self-adhesive tape*1pcs;

Note:

1.Please check the specifications of your graphics card and PSU for power requirements when to use this cable. 2.PCle male connector with a latch provide a safe connection to prevent accidental disconnection.Please depress the button before unplugging; 3.This cable was only designed for graphics vedio cards, it does not work with motherboards; 4.This cable is NOT compatible with Seasonic and Corsair power supply; 5.This cable is NOT compatible with EVGA 1000PS, 850GS and 1050GS.

• 『Compatibility』Compatible with EVGA G+ G2 G3 G5 G6 GA GM GT P2 P3 B2 B3 B5 P5 P6 P+ T2 T3 NEX650G/750G 550GS/650GS (Doesn't work with 1000PS/850GS/1050GS), some types of Thermaltake, Silverstone, COUGAR PSU with 8 pin PCIe port.(NOTE: NOT compatible with Thermaltake smart series, Seasonic ,Sentey and Corsair PSU. );
• 『PCIe 8P - Dual 8P(6+2)』PCIe 8 pin male end to plug into the power supply(Please make sure that the 8 pin port on your power supply is pcie 8 pin port , not cpu 8 pin port when to buy it.) and two 8 pin(6+2) male ends to plug into the video graphics card.(NOTE: the 8 pin end and two 8 pin(6+2) male ends cannot be used interchangeably);
• 『Only designed for graphics vedio cards, it doesn't work with motherboards』Compatible with 6-pin & 8-pin graphics cards from popular manufacturers such as: ASUS, ASRock, Gigabyte, Radeon, Sapphire, NVIDIA Tesla Referral GPU, etc. (The 8 pin (6+2) ends could be used as 6 pin or 8 pin end by sliding on/off the 2 connectors): 25-inch + 9-inch(63cm+23cm), Gauge: 1007-18AWG(standard tin-coating copper wire), Quantity: 1pcs, Self-adhesive tape*1pcs (only designed for graphics vedio cards, it will not work with motherboards);
• 『Note』This cable was ONLY designed for the brand and model as listed in the 3rd Point. If you use other incompatible brand PSUs or types, it will definitely burn or damage the PSUs or graphics cards and we won’t take any responsibility for wrongly using or installing. Please carefully check the compatible types or contact us if you are not sure if it supports your power supply;
