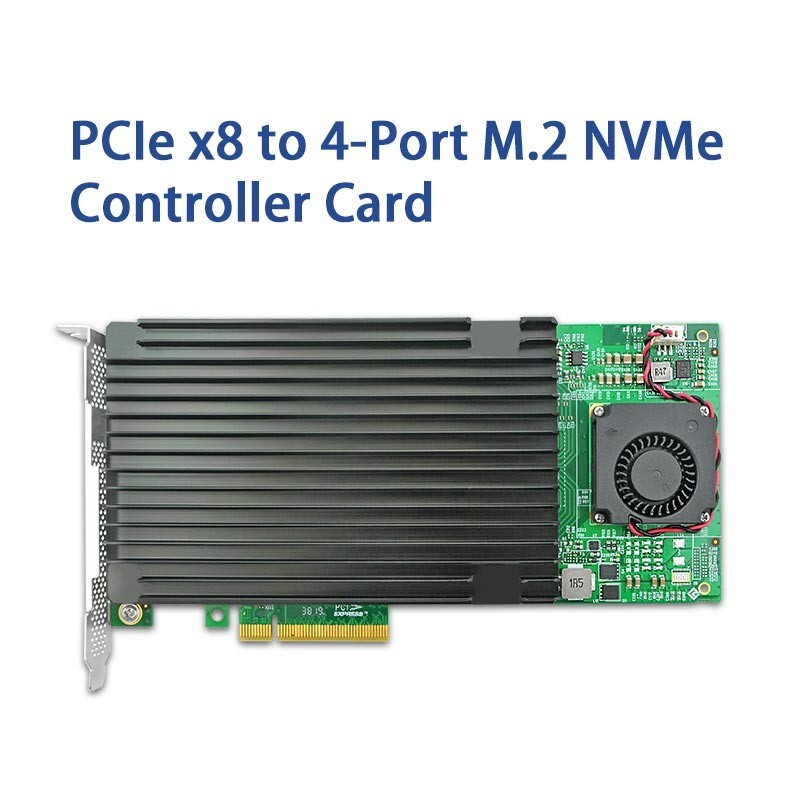

PCIe 3.0 x8 to 4 xM.2 SSD NVMe Switch Adapter Switch Card with heatsink

Price: CN $140.00

Controller: PEX8724/PEX8725Interface Type:4*M.2 ConnectorsHost Bus Type: PCIe 3.0 x8Support Equipment: 4*NVMe SSD for 2242,2260,2280 and 22110mm
STC PE382-4I is a PCI Express x8Gen3 PCIe switch Card provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M. 2 SSD, and unlocks the true performance potential of NVMe based storage configurations. Ideal for servers & high-end desktop/workstation platforms.The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.
The adapter has a PCIe 3.0 x8 upstream port as well as four PCIe 3.0 x4 downstream ports.
Dedicated PCIe 3.0 x8 bus bandwidth fully maximizes AHCI/NVMe SSDs performance, And dedicated PCIe 3.0 x4 bandwidth for each NVMe M. 2 SSD.
This card does not rely on PCIe bifurcation supported by CPU or PCH
AHCI/NVMe RAID is supported base on the motherboard chipsets & macOS Disk Utility
Independent, Stand Alone NVMe SSD Solution
Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later

Technical Specification

HARDWARE

Model

STC PE382-4I

Number of Drives

4 internal

Bus Type

PCIe3.0 x8

Compatible Drive Types

M.2 NVMe SSD

Drive Connectors

4- M.2 (PCIe,M-Key, NGFF)
