M2880-2QSFP28 is a PCIe x16 dual optical port 100G developed based on Mellanox MT28808A0 controllerQSFP28 Ethernet Network Adapter is designed to meet the strict requirements for high performance, high bandwidth, and network stability in server centers and big data storage fields. And Mellanox's infiniBand technology fully meets the high bandwidth and low latency requirements in big data, on virtual IO, InfiniBand's aggregated and flat network architecture provides a huge pipeline for dynamic on-demand allocation to improve availability and load balancing, while the 100Gbps transmission speed of each port ensures excellent data throughput performance. The PCIe x16 interface is highly scalable, meeting future growth needs and providing optimal performance. In addition, M2880-2QSFP28 also has data center optimization and advanced security features to reduce energy costs, protect data confidentiality and integrity, and is suitable for multiple fields such as data center network interconnection, large-scale data storage, cloud computing, and high-performance computing. M2880-2QSFP28 provides users with a reliable solution to meet the challenges of modern data transmission needs.Unique functional design1. Having advanced multi host and socket direct technology.2. Equipped with advanced Open vSwitch offloading capabilities to reduce CPU resource consumption, thereby driving extremely high packet rates and throughput.3. Network Function Virtualization (NFV) enables virtual machines to be used as virtual devices. The complete data path operation offloading, hairpin hardware capabilities, and service chain enable data to be processed by virtual devices while having the lowest CPU utilization.Controller Mellanox MT28808A0Cable Media Fiber OpticCable types 1000BASE-SX, 1000BASE-LX10GBASE-SR, 10GBASE-LR, 10GBASE-ER25GBASE-SR, 25GBASE-LR40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER450GBASE-SR, 50GBASE-LR100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4Half height and full height configuration of the bafflePort type: 2 * 100G QSFP28PCIe bus :PCIe 4.0 (16GT/s) x16Port speed:1G/10G/25G/40G/50G/100GbpsPower supply :PCIe power supplyESD contact discharge :± 8KVCompliant with the standard IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet
IEEE 802.3by, Ethernet Consortium 25,50 Gigabit Ethernet, supporting all FEC modesIEEE 802.3ba 40 Gigabit EthernetIEEE 802.3ae 10 Gigabit EthernetIEEE 802.3az Energy Efficient Ethernet (fast wake) IEEE 802.3ap based auto-negotiation and KR startup IEEE 802.3ad,802.1AX Link AggregationIEEE 802.1Q,802.1P VLAN tags and priorityIEEE 802.1Qau(QCN)-Congestion Notification IEEE 802.1Qaz(ETS) IEEE 802.1Qbb(PFC)IEEE 802.1Qbg IEEE 1588v2PXE support YesDPDK supports YesWoL supports NoYes, support for SCSIGiant frame support YesFCoE support NoSR-IOV YesGiant data frame Max 9.5KBNetwork virtualization VXLAN Geneve、NVGREIEEE 1588 YesRDMA YesWoL No1G/10G/25G/40G/50G/100Gbps link green light constantly onTransmission green light flashingWorking environment temperature: 0 ℃ to 70 ℃ (-32 ℉ to 158 ℉)Storage temperature -55 ℃ to 105 ℃ (-67 ℉ to 221 ℉)Storage humidity: 90% non condensing relative humidity at 35 ℃Product size (unit: mm) 142.1*68.5*1.6Packaging size (unit: mm) 222*147*28* Windows 10 /11 * Windows Server 2016 R2 /2019 R2* Windows Server 2022 R2 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.7 * RHEL/CentOS 7.6 /7.9 /8.2 /8.3 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * SUSE 12.5 /15.4 * FreeBSD 13.2 * Mikrotik *Yiming Operating System*ZTE's new pivot 5.0.5/3.2.2*Galaxy Kirin V10*Winning the offer for Kirin 7.6*Open Kirin 0.7.5*Unified UOS 20*Love Fast Routing*Red Flag Asianux Operating System V7.0*Zhongke Fangde Desktop Operating System 4.0*Zhongke Fangde Server Operating SystemProduct Number Description Remarks

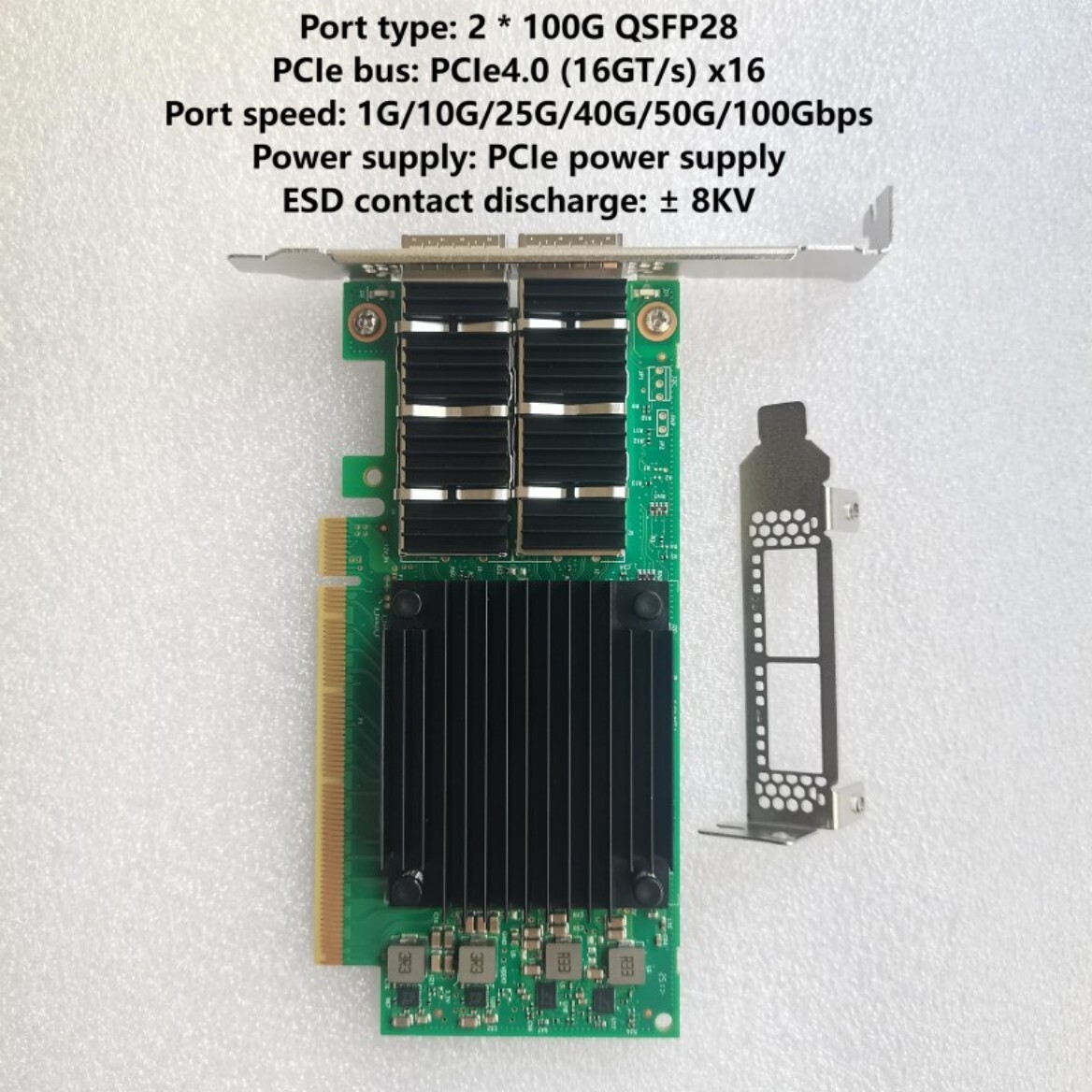

M2880-2QSFP28 PCIe x16 dual port 100G QSFP28 Ethernet network adapter based on Mellanox MT28808A0, 2U/3U baffle
