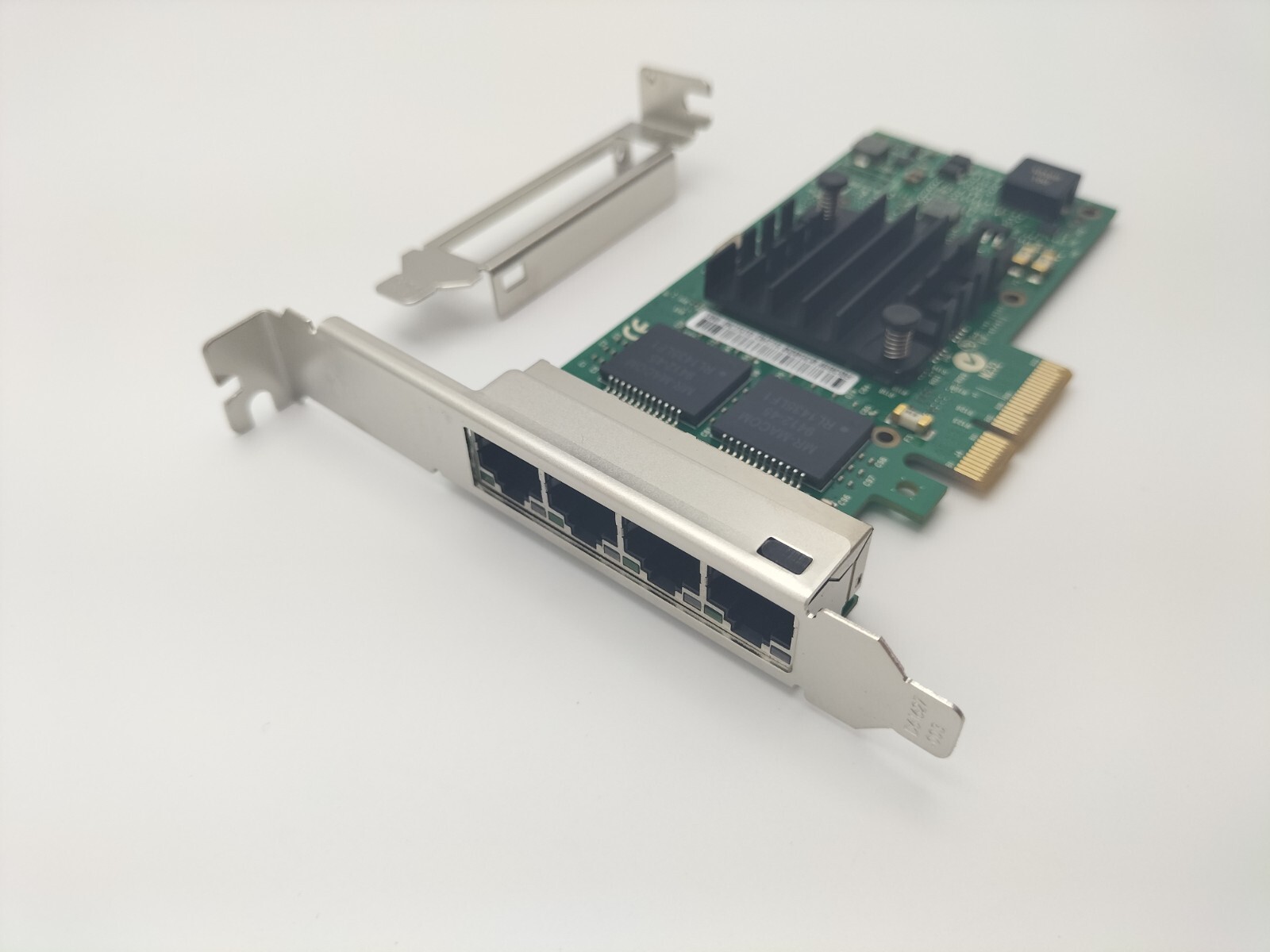

I350-4RJ45 Ethernet Server Adapter Gigabit Adapter
Based on the new I350-RJ45 Gigabit Ethernet Controller for IBM ® The Intel Ethernet dual port and four port server adapters for System x are Intel's fourth generation PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated multi port PCIe 2.1 GbE controller, with a smaller footprint and lower power consumption.
In addition, these adapters also offer advanced features, including support for multi-core processors and server virtualization, as well as expandable PCI Express 2.1 interfaces. Intel's first environmentally friendly, halogen-free design combines low power consumption and low cost, making it one of the most cost-effective multi port solutions available today.
The adapter has the following functions:Four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cablesBased on Intel I350-T4V2 ASIC (four port MAC/PHY controller)PCIe 2.1 x4 host interfaceLow profile card appearance specificationsLAN wake-up supportPre boot Execution Environment (PXE) boot supportSupports VLAN tag insertion, stripping, and packet filtering, supporting up to 4096 VLAN tagsSupport for SCSI boot (with built-in software for SCSI initiator)Support for local operating system initiator for SCSIMega frame supportIntel I/O Acceleration Technology (I/OAT) AccelerationIntel Virtual Machine Device Queue (VMDq) supports VMware, with 8 queues per portTCP/IP checksum uninstallationTCP/IP segment offloading/large end offloading support
