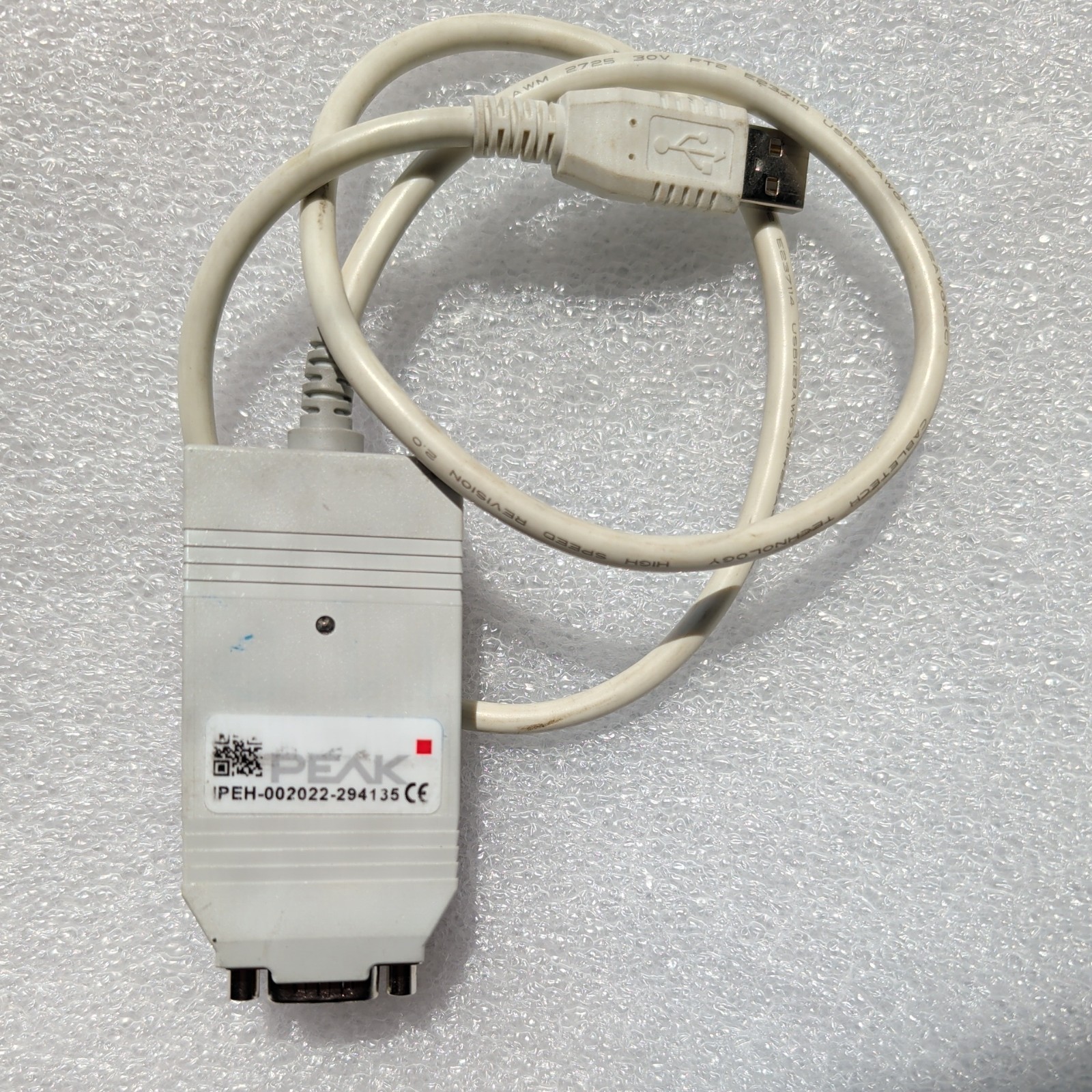

Makes it possible to connect any PC with a USB slot into a CAN network.
Galvanic isolation of up to 500V between the CAN signals and the host-PC is achieved with the help of an integrated DC/DC converter. The CAN is connected via a 9-pin SUB-D plug according to CiA standard recommendation DS 102-1. The LED integrated in the housing shows the operating state of the PCAN-USB adapter. Also available without galvanic isolation.(used)The PCAN-USB Adapter package includes device drivers for Windows® 11 (64-bit) and 10 (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available. For customers needing more sophisticated CAN Analyzing software we have PCAN-Explorer 6.Interface in compact plastic casing
Transfer rates up to 1 Mbit/s
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus connection via D-Sub, 9-pin (to CiA® 102)
NXP SJA1000 CAN controller, 16 MHz clock frequenc
82C251 CAN transceiver
Hardware can be reset via software
5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
Voltage supply through USB bus
USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)
Galvanic isolation on the CAN connection up to 500 V
