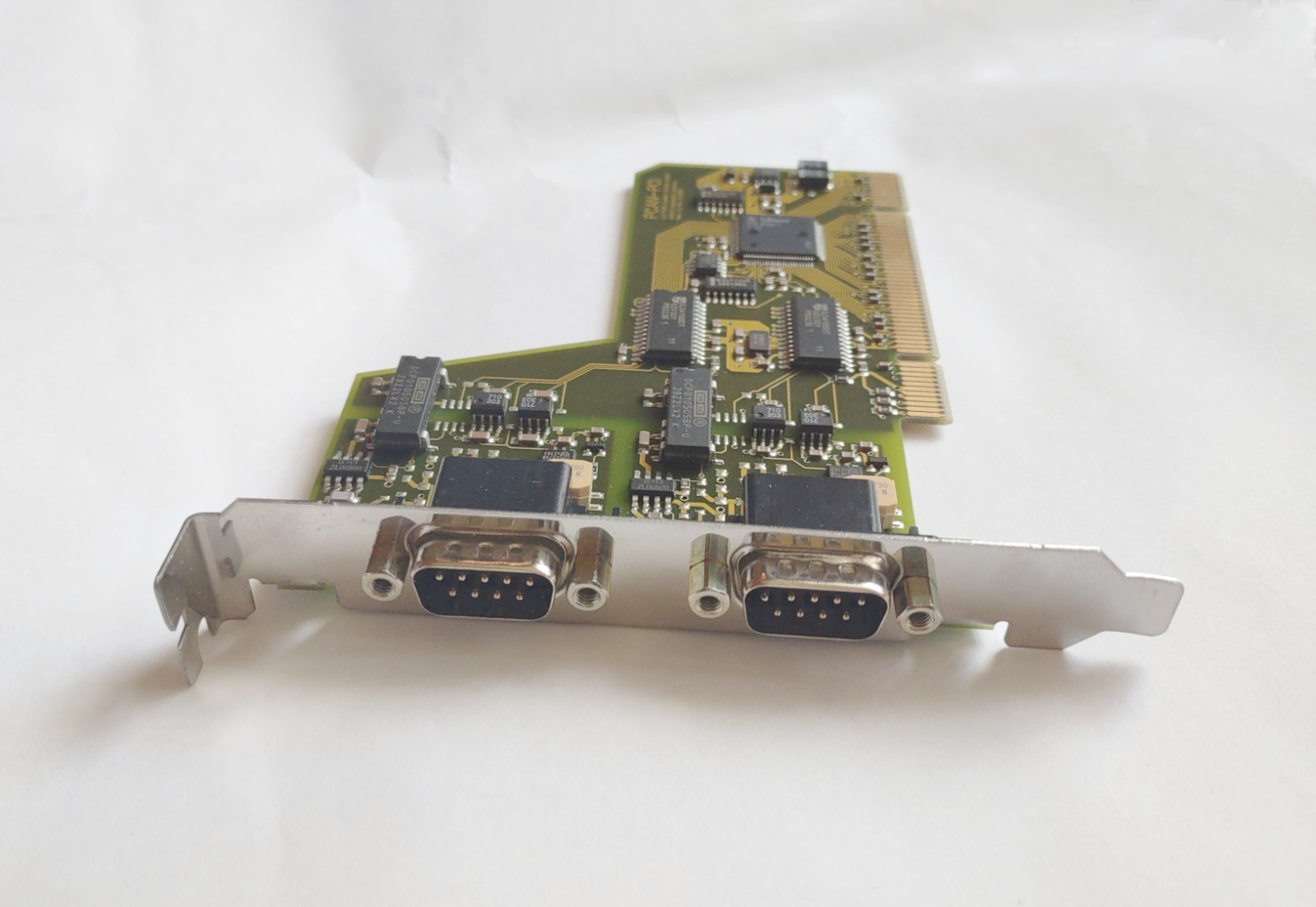

PEAK System PCAN-PCI 2-Port PCI CAN Interface Card rev 1.3
Price: US $155.00
The PEAK-System PCAN-PCI 2-Port PCI CAN rev 1.3 adapter is an internal legacy expansion card designed to connect conventional desktop computers with standard 5V PCI slots to standard High-Speed Controller Area Networks (CAN).Key Technical Specifications
CAN Controller: Powered by a 16 MHz NXP SJA1000 controller.
CAN Transceiver: Uses NXP PCA82C251 chips.
Protocols & Compliance: Fully compliant with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID) specifications. It does not support newer CAN FD standards.
Bit Rates: Operates reliably from 5 kbit/s up to 1 Mbit/s.
Connectors: Built with a 9-pin D-Sub (DB9) plug assignment aligned with the CiA 106 standard.
Software SupportDrivers are heavily integrated into PEAK's native ecosystem, making them robust across multiple Operating Systems:
Windows Support: Offers full compatibility with Windows 11 and Windows 10.
Linux Support: Supported via proprietary kernel modules or natively through the unified Linux SocketCAN framework.
Included Tools: Packaged directly with the PCAN-View protocol analyzer software and the PCAN-Basic API
