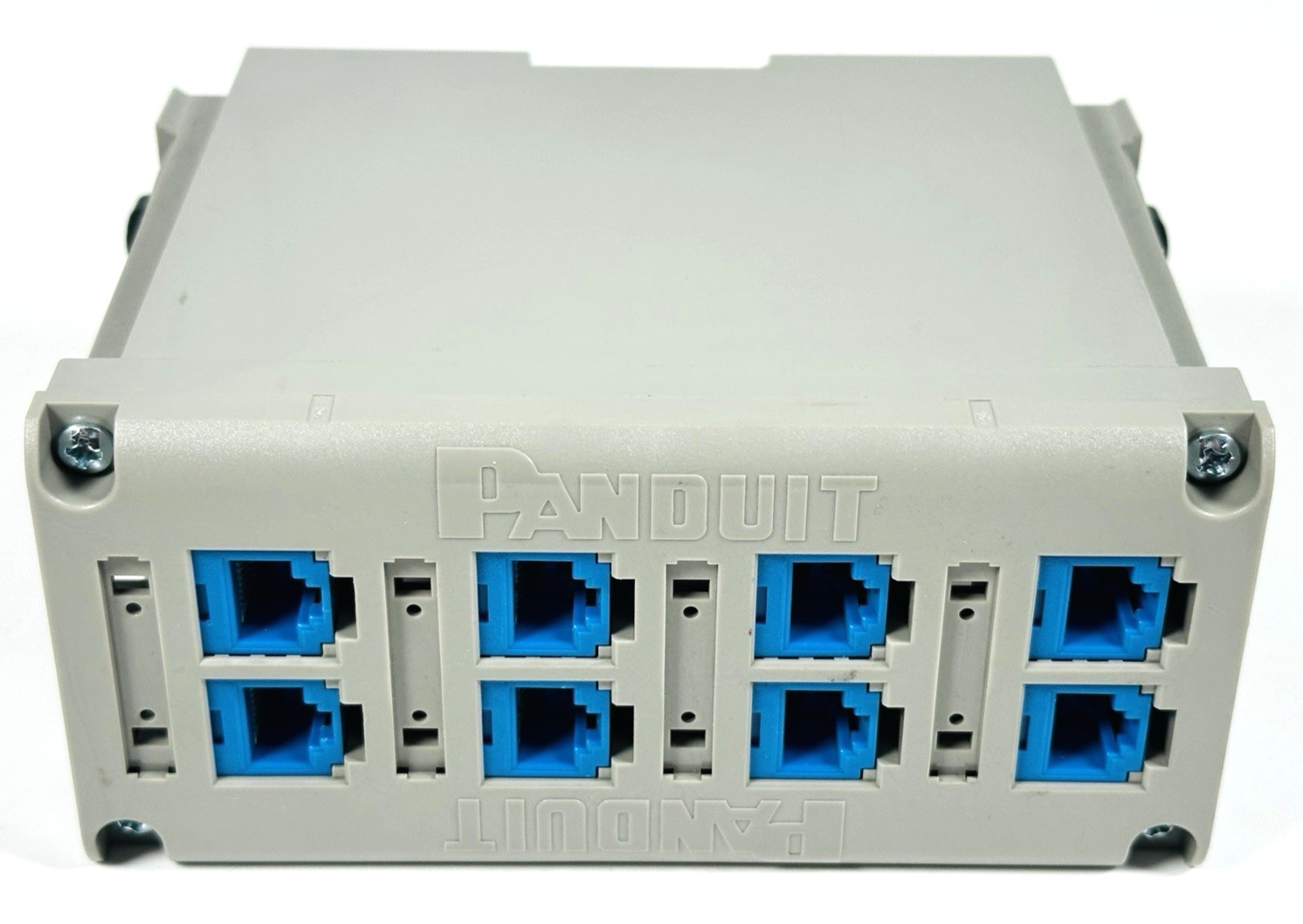

✓ 30-Day Returns ✓ Ships Next Business Day ✓ Fully Tested Panduit / IndustrialNet™ Copper Patch Panel Panduit CDPP8RG IndustrialNet 8-Port DIN Rail Patch Panel + 8 Cat 6 Keystones Fully Functional ● Loaded with 8 Cat 6 Modules ● DIN-Rail Mount Condition
- Fully functional and in very good condition.
- Includes the patch panel and 8 Cat 6 keystones (female RJ45 receptacles). Patch cables and male RJ45 plugs are not included.
- Ultimate ID® label inserts and clear covers not included.
Panduit IndustrialNet™ 8-port DIN-rail copper patch panel pre-loaded with 8 Panduit Mini-Com® Category 6 RJ45 keystone modules. Designed for industrial control panels, factory automation networks, and machine cell installations where a compact DIN-rail patch field is preferred over a 19-inch rack panel.
Catalog NumberCDPP8RG ManufacturerPanduit Corp. Product FamilyIndustrialNet™ Mini-Com® Copper Patch Panel TypeDIN-rail mount 8-port copper patch panel, loaded Loaded Modules8 × Panduit Mini-Com® Cat 6 RJ45 keystone modules (blue) — verified Cat 6 per markings on module body Port Configuration8 × RJ45 (Cat 6, 8P8C, 4-pair UTP) Speed SupportGigabit Ethernet (1000Base-T) standard; 10GBASE-T over short channels per Cat 6 spec Wiring StandardsT568A / T568B (universal color-code labels on each module) TerminationPunchdown style (110-style or compatible); 4-pair, 22–26 AWG twisted pair cable MaterialHigh-impact polycarbonate (housing); Rock Gray finish Mounting35mm DIN rail (adjustable latches) / flat-surface or vertical bulkhead mount via housing holes Dimensions5.92 in × 2.65 in × 4.6 in (H × W × D) — per Panduit datasheet Standards MetIEC 60715, DIN EN 60715, DIN EN 50022, DIN 46277-3, BS 5584:1978, IEC 60068, cULus Listed to UL1863, RoHS Please confirm compatibility with your application before purchasing.
As with all our listings, only what is pictured is included. ✓ Securely Packaged ✓ 30-Day Returns ✓ Ships Next Business Day
