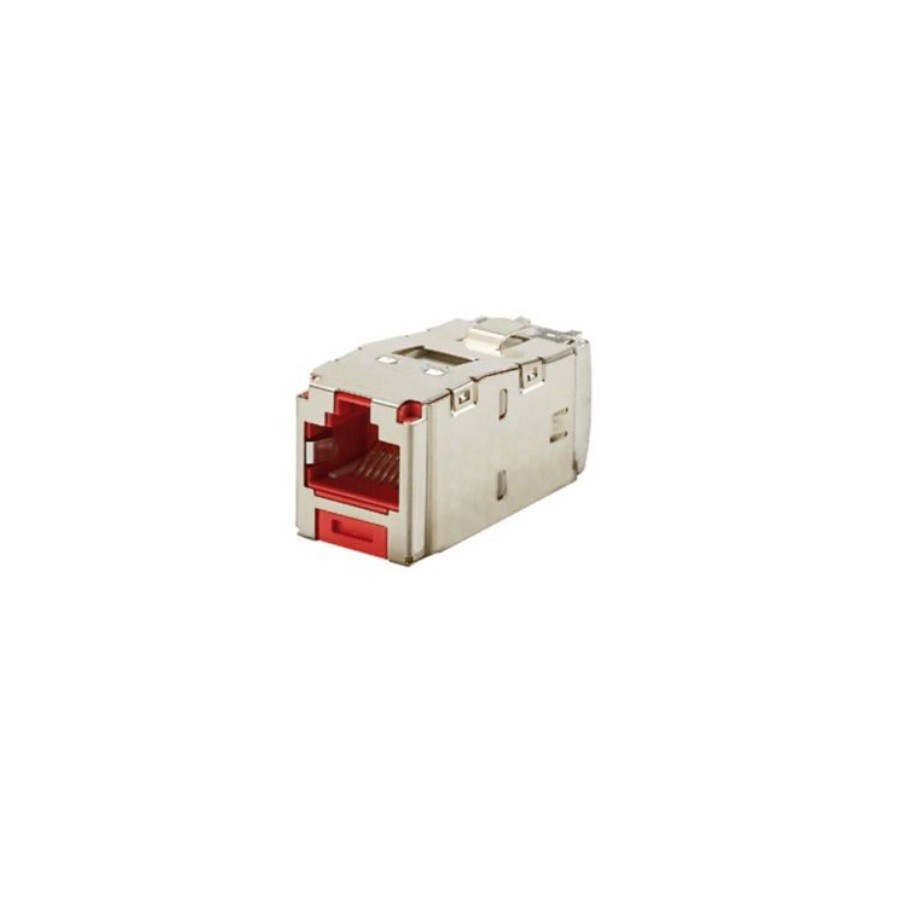

Panduit CJS688TGRDY Cat-6 Shielded Jack Module STP RJ45 8P8W TG-Style Red Click Thumbnails to EnlargeDESCRIPTION
• The Mini-Com Cat 6 Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
STANDARDS
• Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant..
PRODUCT SPECIFICATIONSProduct Type Jack Module
Performance Level Category 6Connector Type
Jack Module - Standard
Termination Style TG StyleBody Material PolycarbonateContact Material Plated Phosphor BronzeModule Type Mini-ComWiring Scheme
T568A/T568BShield Type
Shielded (STP)Color RedOverall Length (inch) 1.5Overall Width(inch) 0.62Overall Depth(inch) 1.5Overall Height(inch) 0.74Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
