Description:

LC 10Gig 50 Micron Multimode Simplex Fiber Optic Connector for 900 Micron tight-buffered fiber installation, TIA/EIA-604 FOCIS-10 compatible connectors, Exceed TIA/EIA-568-B.3 requirements, Spring-loaded Senior rear pivot latch LC connector, Quick installation; provide field termination in less than half the time of field polish connectors, Patented re-termination capability provides yield rates approaching 100 percent, Factory pre-polished fiber endface eliminates time-consuming field polishing to reduce installation costs, labor, scrap and the number of tools required, Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention - less sensitivity to fiber tensile loading, No separate clamps, tools, or steps are required to secure both the fiber and the buffer, OptiCam Termination Tool simplifies tooling and termination, and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed, Cable retention boot assemblies consistently provide higher than industry standard cable retention, Non-optical disconnect maintains data transmission under tensile loads for jacketed cable, Fiber cable size accept 900 Micron tight-buffered fiber with included boot or boots accept 1.6mm - 2.0mm and 3.0mm jacketed cable with available OptiCam Cable Retention Boot Assemblies (ten per package), For 250 Micron coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits, Ferrule type, 1.25mm zirconia ceramic (highest durability for repeated matings) Use OptiCam Termination Kit (FCAMKIT).
Features:

• TIA/EIA-604 FOCIS-10 compatible connectors
• Exceed TIA/EIA-568-B.3 requirements
• Insertion loss: 0.10dB average (multimode and singlemode)
• Return loss: >20dB (multimode), >40dB (singlemode)
• Non-optical disconnect maintains data transmission under tensile loads for jacketed cable
• Each simplex connector includes the following: one connector body/ferrule assembly, one crimp sleeve, one dust cap, and depending on the part number ordered, one boot for 900u m buffered fiber and one boot for 1.6mm– 2.0mm jacketed cable or one boot for 3.0mm jacketed cable
• Each duplex connector includes two connector body/ferrule assemblies, two crimp sleeves, two dust caps, one duplex clip, and depending on the part number ordered, two boots for 1.6mm - 2.0mm jacketed cable, two boot for 3.0mm jacketed cable, or two boots for 900u m buffered fiber
• LC duplex clip available separately for duplexing two simplex Panduit LC Connectors
• Fiber cable type: tight-buffered recommended
• Fiber cable size: accept 1.6mm – 2.0mm or 3.0mm jacketed cable, 900um buffered fiber (noted in part description)
• For 250um coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits
• Ferrule type: 1.25mm zirconia ceramic (highest durability for repeated matings)
• Field polish termination – Panduit recommends anaerobic adhesive
• Use field polish termination kit Number FLCSMCXAQY
• Marketing Region JAPAN Y
• Marketing Region USA Y
• RoHS Compliancy Status Intended for use in fixed installations which are outside the scope of RoHS
• Note FLCSMCXAQY replaces FLCSMCXAQ

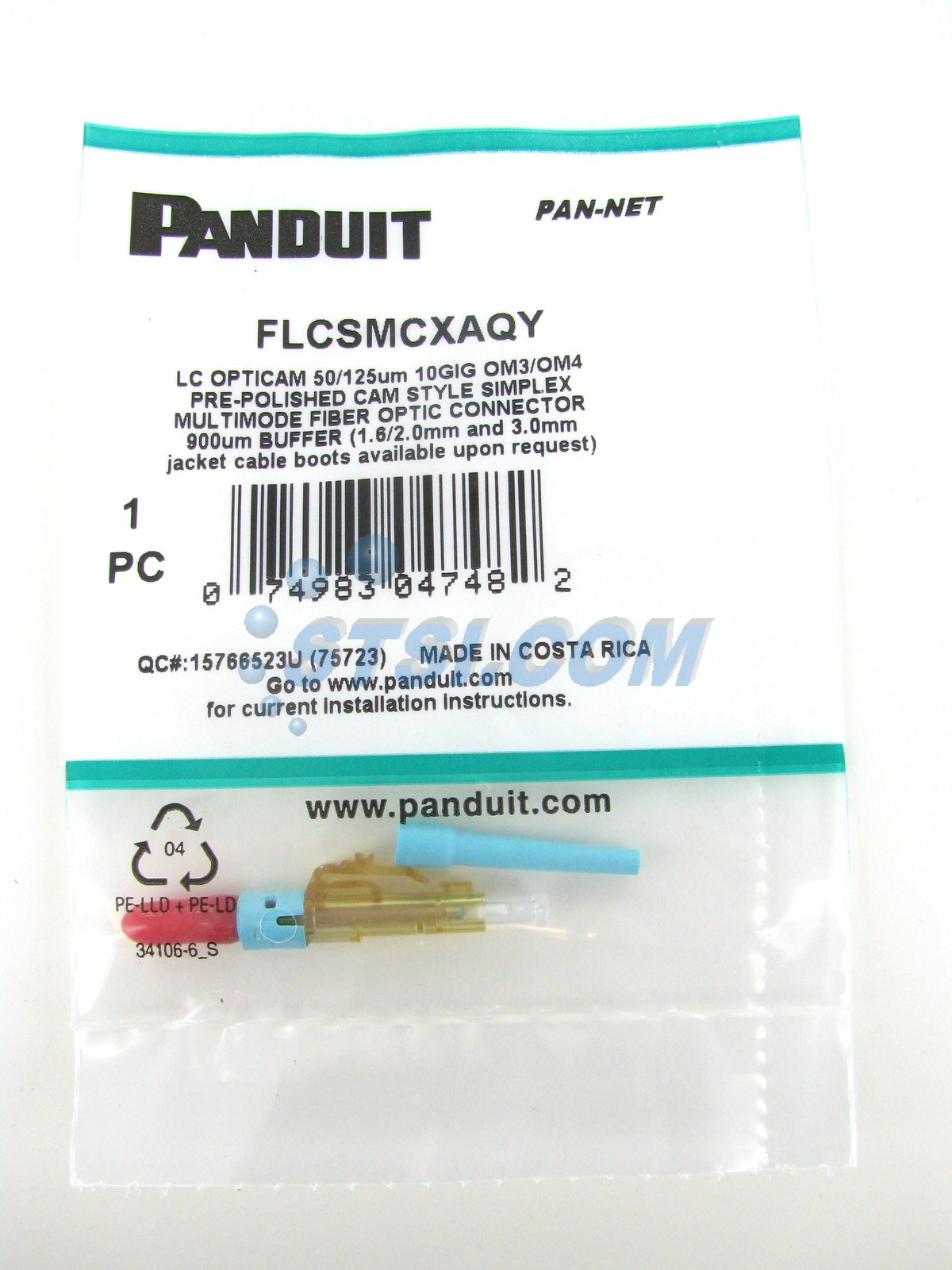

• Part Description LC OptiCam® 10Gig™ 50/125um OM3/OM4 Multimode Simplex Fiber Optic Connector for 900um tight-buffered fiber installation.
• Product Type LC Simplex Connectors
• Color Aqua
• Fiber Compatibility 10Gig™ 50/125um
• Fiber Cable Size 900um
• Fiber Cable Type Tight-buffered only
• Fiber Type Multimode
• Termination Style Pre-Polished Cam
• CE Compliant No
• Connector 1 Type LC
• Ferrule Type Zirconia Ceramic
• Long Desc - No Special Characters LC 10Gig 50 Micron Multimode Simplex Fiber Optic Connector for 900 Micron tight-buffered fiber installation, TIA/EIA-604 FOCIS-10 compatible connectors, Exceed TIA/EIA-568-B.3 requirements, Spring-loaded Senior rear pivot latch LC connector, Quick installation; provide field termination in less than half the time of field polish connectors, Patented re-termination capability provides yield rates approaching 100 percent, Factory pre-polished fiber endface eliminates time-consuming field polishing to reduce installation costs, labor, scrap and the number of tools required, Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention - less sensitivity to fiber tensile loading, No separate clamps, tools, or steps are required to secure both the fiber and the buffer, OptiCam Termination Tool simplifies tooling and termination, and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed, Cable retention boot assemblies consistently provide higher than industry standard cable retention, Non-optical disconnect maintains data transmission under tensile loads for jacketed cable, Fiber cable size accept 900 Micron tight-buffered fiber with included boot or boots accept 1.6mm - 2.0mm and 3.0mm jacketed cable with available OptiCam Cable Retention Boot Assemblies (ten per package), For 250 Micron coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits, Ferrule type, 1.25mm zirconia ceramic (highest durability for repeated matings) Use OptiCam Termination Kit (FCAMKIT).
• Pricing Description LC OptiCam 10 GbE 50um mm OM3/OM4 Simpl Connector Aqua Boot
