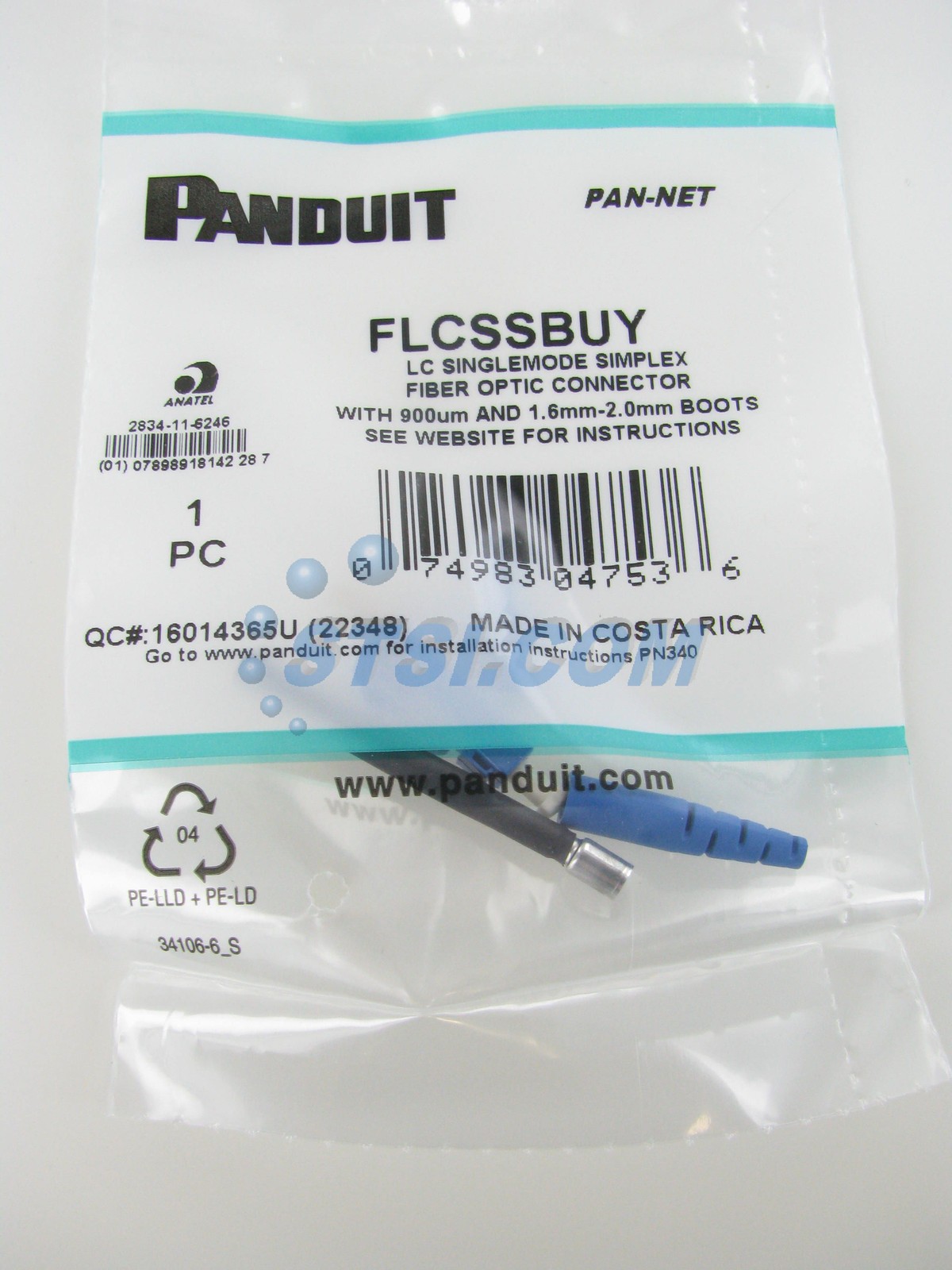

Panduit FLCSSBUY LC Simplex OS2 Singlemode Field Polish Fiber Optic Connector

Description:

Panduit Field Polish LC Simplex Connector, OS1/OS2, Blue
Part # FLCSSBUYThe field polish LC fiber optic connector is a singlemode 9/125μm OS1/OS2 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. The LC connector has a blue-colored body, backbone, and 900μm boot.
Features:

• Polish Type Field Polish
• Fiber Type OS1/OS2
• Connection Type LC
• Application Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions.
• Body Style Simplex
• Color Blue
• Boot Color Blue
• Backbone Color Blue
• Fiber Diameter (µm) 900
• Maximum Operating Temperature (°C) 60
• Maximum Operating Temperature (°F) 140
• Minimum Operating Temperature (°C) 0
• Minimum Operating Temperature (°F) 32
• Standards Met RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements
• Product Type Fiber Optic Connectors, Field FLCSSBUY replaces FLCSSBU
• Product Type LC Simplex Connectors
• Color Blue
• Fiber Compatibility OS2 9/125μm
• Fiber Cable Size 1.6mm - 2.0mm or 900µm
• Fiber Cable Type Tight-buffered recommended
• Fiber Type Singlemode
• Termination Style Field Polish
• CE Compliant No
• Cable Type 1.6/2.0 mm
• Connector 1 Type LC
• Connector 2 Type Zirconia
• Connector Type LC
• UPC 07498304753
• Std. Pkg. Qty. 1
• Std. Pkg. Volume (cf) 0.0032
