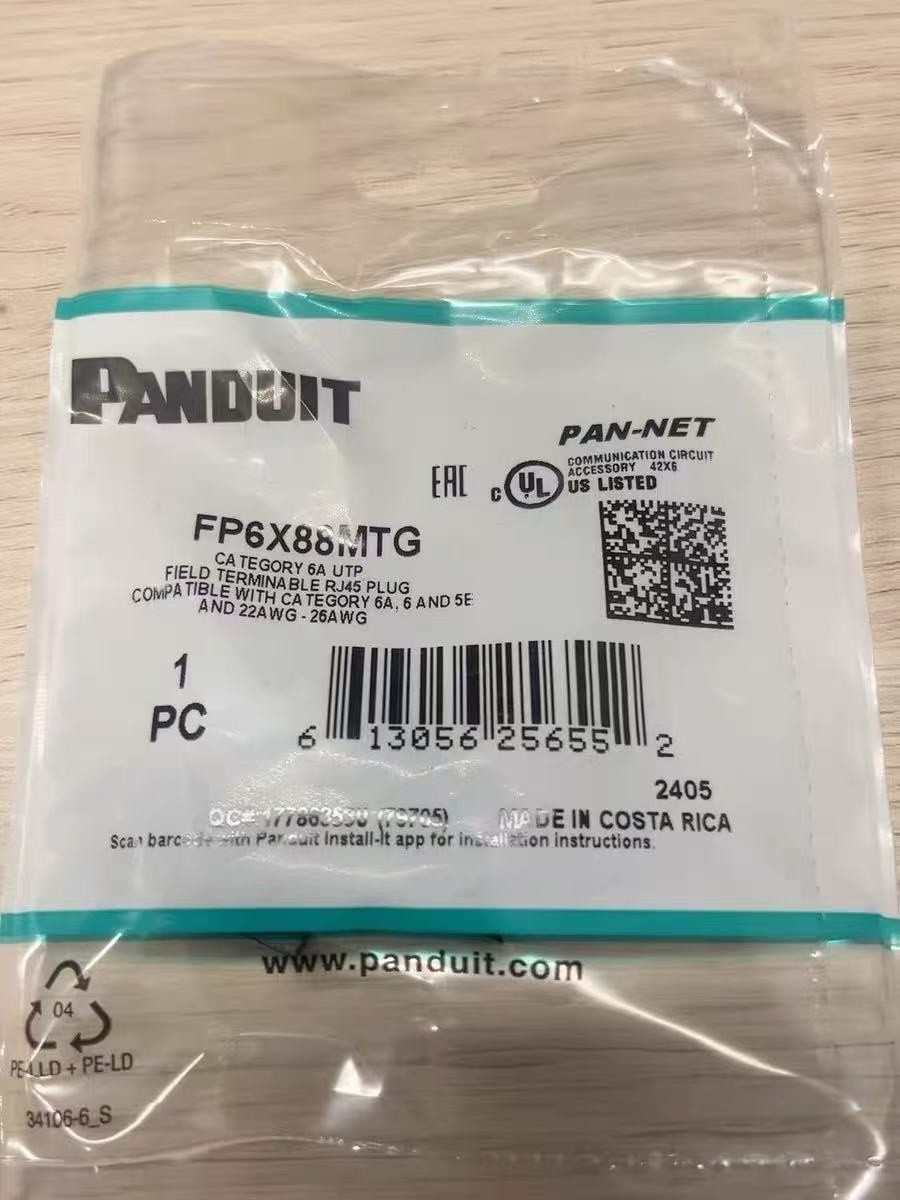

Panduit FP6X88MTG TX6A UTP Cat6a RJ45 Field Terminable Plug 22-26awg Lot of 10
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Panduit FP6X88MTG TX6A UTP Cat6a RJ45 Field Terminable Plug 22-26awg Lot of 10
Price: CN $139.89
Panduit FP6X88MTG TX6A UTP Cat6a RJ45 Field Terminable Plug, 22-26awg(Lot of 10)


Description:

Panduit TX6A UTP Cat6a RJ45 Field Termination Plug, Type UTP Field Term Plug

  • Performance Level Category 6A
  • Connector Type Field Terminable Plug
  • Body Material Polycarbonate
  • Contact Material Gold Plated Phosphor Bronze
  • Number of Plugs 1
  • Wiring Scheme T568A/T568B
  • Overall Length (In.) 1.82
  • Overall Length (mm) 46.2
  • Shield Type Unshielded (UTP)
  • Overall Width (In.) 0.53
  • Overall Width (mm) 13.5
  • Overall Height (In.) 0.62
  • Overall Height (mm) 15.8
  • Maximum Operating Temperature (°C) 75
  • Maximum Operating Temperature (°F) 167
  • Minimum Operating Temperature (°C) -40
  • Minimum Operating Temperature (°F) -40
  • Compatible Wire Gauge (AWG) 22-26
  • Color Black
  • Standards Met Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant
  • IP Rating IP20
  • Flammability Rating UL94V-0
  • Sub Brand Pan-Net®
  • Part Features Proven electrical performance and quick installation speed from the same forward-motion termination technology used in Panduit�s Mini-Com TG modular item will be sent in 3 business days after receive your cleared payment.
