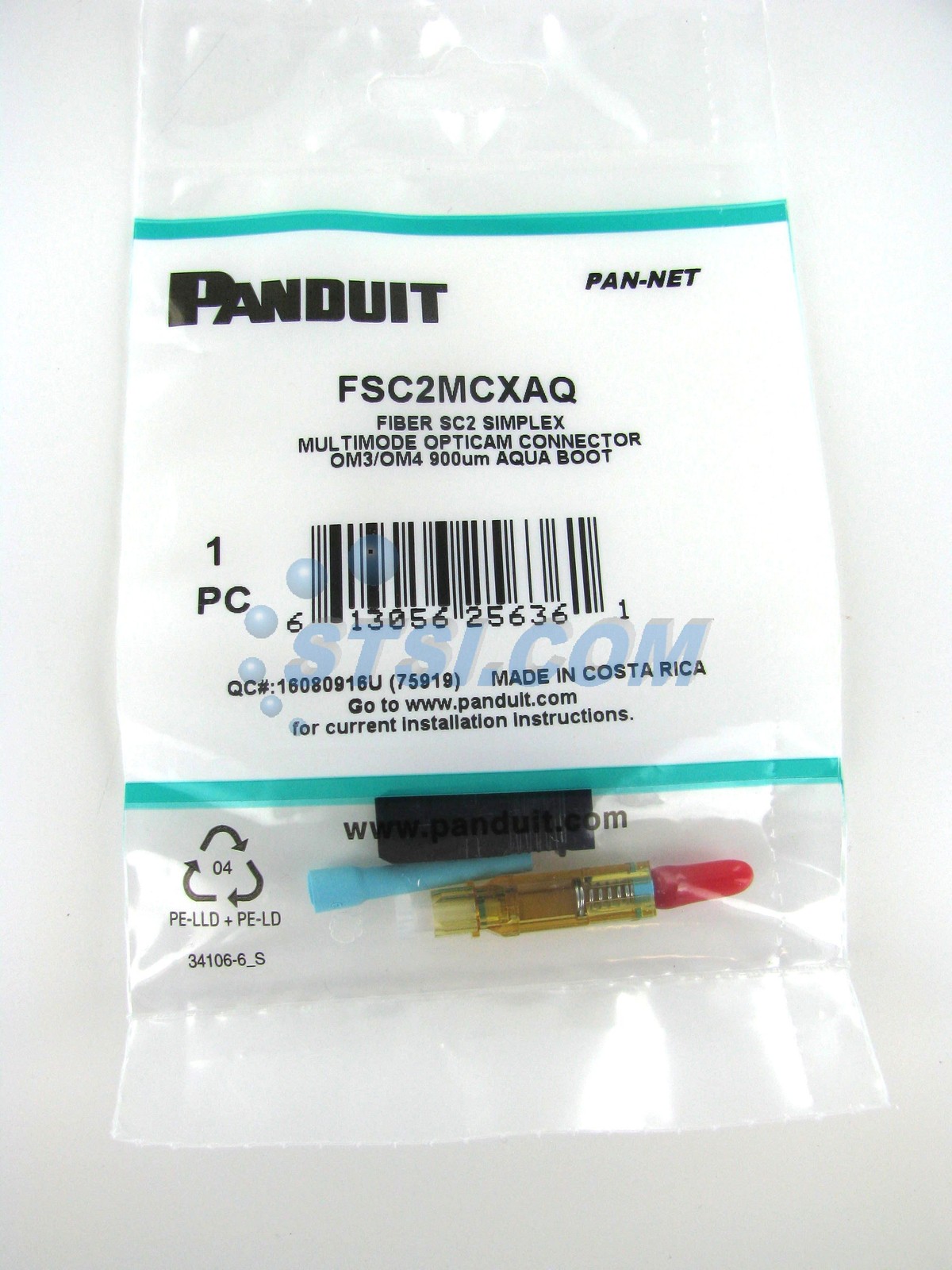

Panduit Opticam SC Simplex 10Gig OM3/OM4/OM5 Multimode 50 Fiber Optic Connector (For 900um Tight-Buffered Fiber)
Description:
Panduit Opticam SC Simplex 10Gig OM3/OM4/OM5 Multimode 50 Fiber Optic Connector (For 900um Tight-Buffered Fiber)The OptiCam® SC Fiber Optic Connector is a multimode 50/125μm OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with an aqua-colored backbone, outer housing, and 900μm boot.Specifications:
- Note For use with the OptiCam 2 Termination Tool
- Polish Type Pre-Polished
- Fiber Type OM3/OM4/OM5
- Connection Type SC
- Sub Brand OptiCam®
- Application Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.
- Body Style Simplex
- Color Aqua
- Boot Color Aqua
- Backbone Color Natural
- Fiber Diameter (µm) 900
- Maximum Operating Temperature (°C) 60
- Maximum Operating Temperature (°F) 140
- Minimum Operating Temperature (°C) 0
- Minimum Operating Temperature (°F) 32
- Standards Met RoHS Compliant; TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements
- Product Type Fiber Optic Connector
