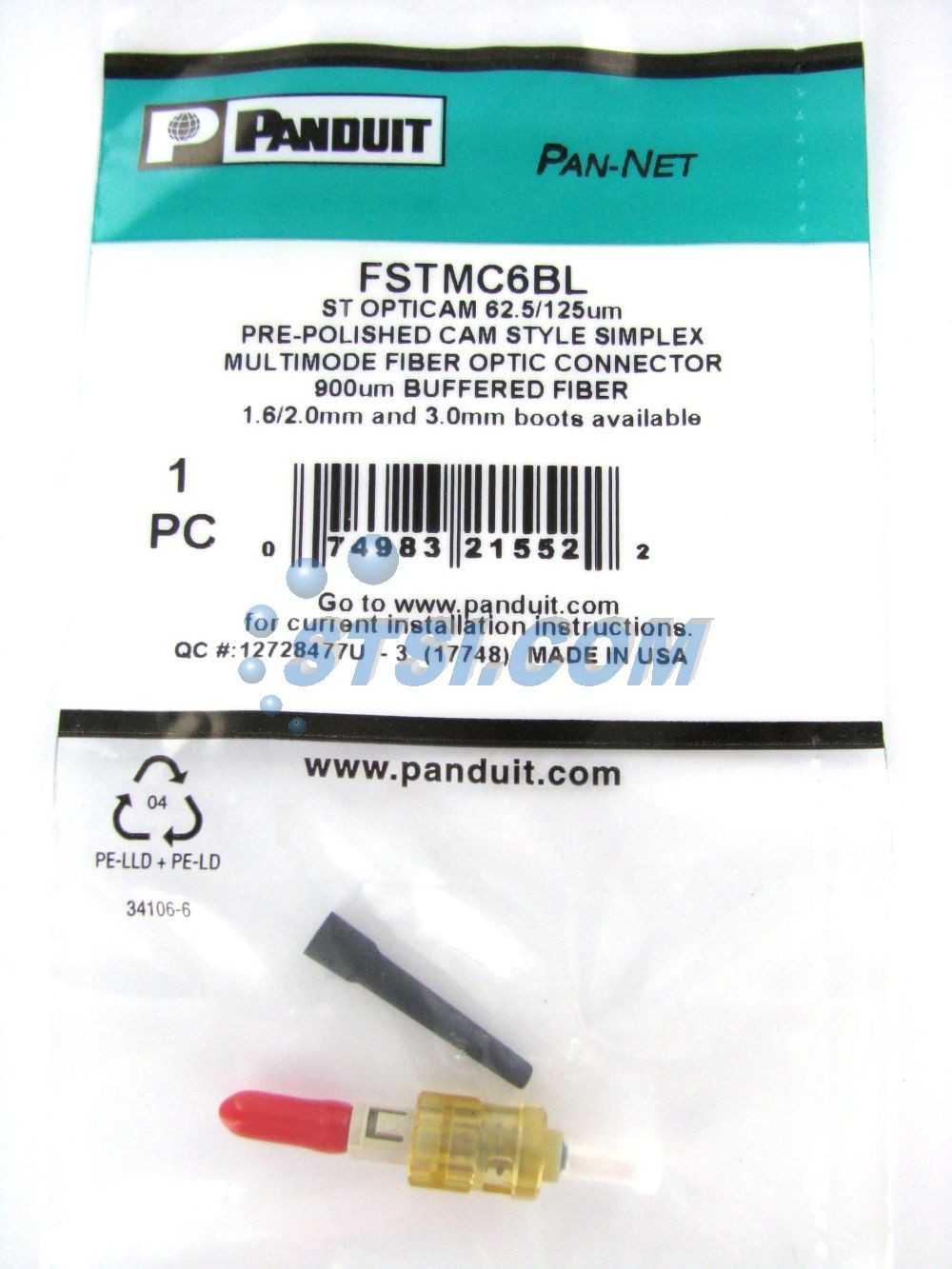

Panduit FSTMC6BL Opticam ST Simplex OM1 Multimode 62.5 Fiber Optic Connector (For 900um Tight-Buffered Fiber)

Description:

ST OptiCam® 62.5/125um Multimode Simplex Fiber Optic Connector for 900um tight-buffered fiber FOCIS-2 compliant connectors

Exceed TIA/EIA-568-B.3 requirements

Insertion loss: 0.3dB average (multimode and singlemode)

Return loss: >26dB (10Gig™ multimode), >20dB (multimode), >50dB (singlemode)

Quick installation; provide field termination in less than half the time of field polish connectors

Patented re-termination capability provides yield rates approaching 100%

Factory pre-polished fiber endface eliminates time-consuming field polishing to reduce installation costs, labor, scrap and the number of tools required

Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention – less sensitivity to fiber tensile loading

No separate clamps, tools or steps are required to secure both the fiber and the buffer

OptiCam® Termination Tool (OCTT) simplifies tooling and termination, and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed

Cable retention boot assemblies consistently provide higher than industry standard cable retention

Fiber cable size: accept 900um tight-buffered fiber with included boot(s); accept 1.6mm - 2.0mm and 3.0mm jacketed cable with available OptiCam® Cable Retention Boot Assemblies (ten per package)

Use OptiCam® Termination Kit Type Pre-Polished

Fiber Type OM1

Connection Type ST

Sub Brand OptiCam®

Application Used in fiber optic backbone and horizontal applications for high-speed data transmission.

Body Style Simplex

Color Electric Ivory

Boot Color Black

Backbone Color Natural

Fiber Diameter (µm) 62.5

Maximum Operating Temperature (°C) 60

Maximum Operating Temperature (°F) 140

Minimum Operating Temperature (°F) 32

Maximum Installation Temperature (°C) 42

Maximum Installation Temperature (°F) 108

Minimum Installation Temperature (°C) 38

Minimum Installation Temperature (°F) 100

Maximum Connector Insertion Loss (dB) 0.3

Minimum Connector Return Loss (dB) 50

Standards Met TIA/EIA-604 FOCIS-2 compliant; exceeds TIA/EIA-568-D.3 requirements
