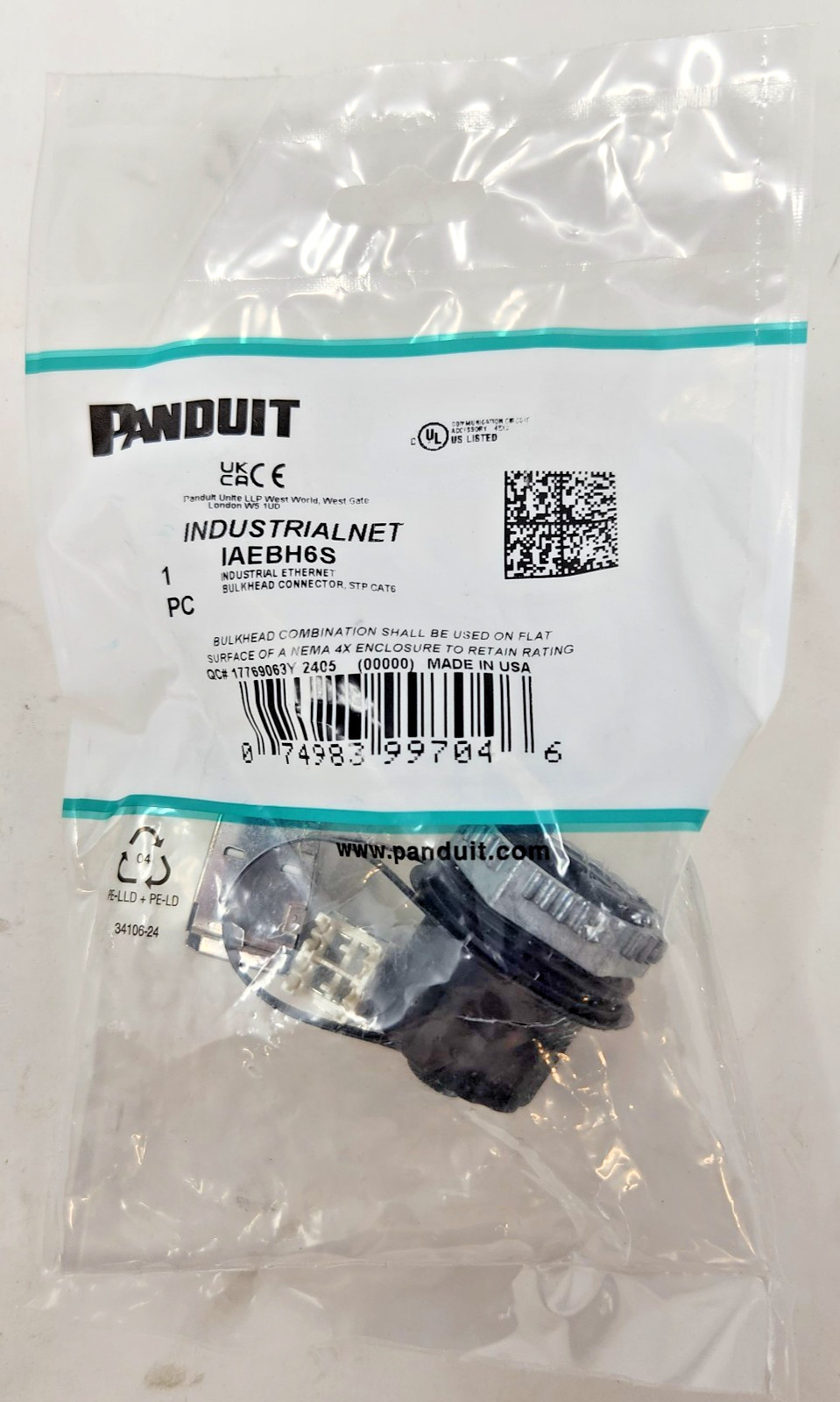

Designed for use in harsh environments, this shielded bulkhead connector provides a durable, Cat 6 connection. With tethered cap properly fastened, the connector features IP67 intrusion protection.
SpecificationsProduct TypeShielded Coupler ModuleColorBlackConnector 1 TypeRJ45Overall Width (In.)1.55Overall Width (mm)39.4Overall Depth (In.)1.67Overall Depth (mm)42.3Overall Height (In.)5.37Overall Height (mm)136.4Sub BrandIndustrialNet™Standards MetExceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO11801 Class E standards at swept frequencies 1 to 250 MH, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Meets ANSI/TIA-1096-A, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X, RoHS compliantEnvironmentHarsh IndustrialConductor Gauge26 AWGPerformance LevelCategory 6Termination StyleTG Style
