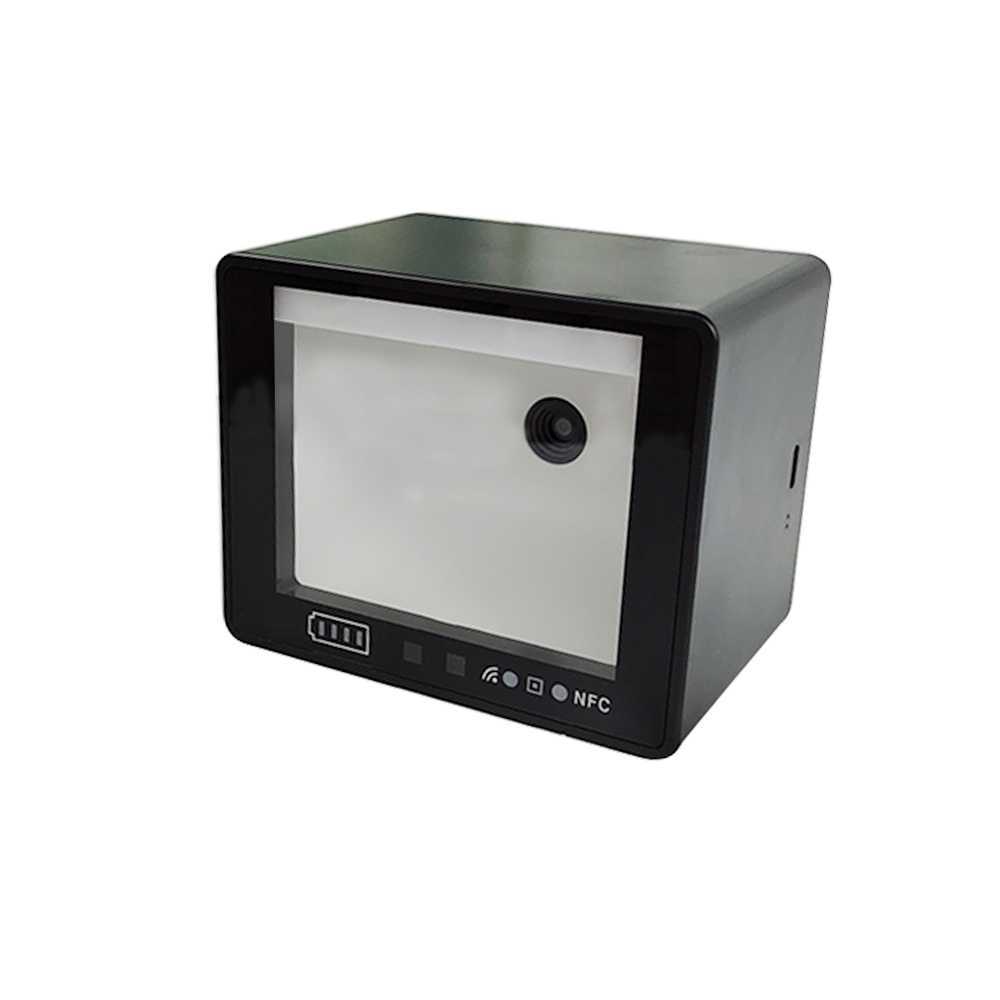

Product Description Wholesale Price Passport Reader and ID Card Scanner&passport scanner with NFC OCR MRZ Blue tooth Advantage: 1.Leading Decoding Technology Answer: Using self-developed core technology, extremely fast response,Support rapid development,and customization requirements
2.Veneer scanning Answer:Large angle, large window, bar code can be completely pasted and scanned 3.Wireless transmission Answer With battery and wireless module (optional), it can be realized,Blue tooth and 2.4G dual-mode transmission 4.NFC swipe card Answer:Optional swipe module can support 13.56Mhz contactless IC card reader 5.Application Answer:Desktop can also be embedded, conference sign-in, visitor machine, access control, identity authentication, ID card passport OCR reading, payment, medical self-service, queuing machine, etc., especially suitable for high-density paper, mobile phone code, close scanning, and identity reading Scenarios for OCR, IC card swiping, and wireless transmission applications
Product Feature Product Model:MS-DCS20
*Support both 1D & 2D codes
*Blue tooth and 2.4G dual-mode wireless
*NFC swipe card (optional)
*OCR reading (optional)
*RS232, USB, RS485, follow-up and
TTL levels are optional
*Support paper and mobile phone code
*Voice broadcast
Product Specifications
Scanning Performance Image sensor 640 X 480 Pixels Lighting White LED（6500K） Coding 2D PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin etc 1D UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal,
Korean Postal etc OCR Comply with OCR-A, OCR-B font standards (*customized version) Resolution 2D≥7mil，1D≥3.9mil
Typical reading depth
Code128 10mil paper code 0~90mm Code128 18bytes mobile code 0~120mm QR 10mil 160bytes paper code 0~55mm QR Code 20mil 0~100mm DM 15mil 100bytes Paper code 0~90mm QR 18bytes Mobile code 0~255mm Symbol Contrast ≥25% Bar code sensitivity 360° View angle 55° (H) x 45° (V) Motion tolerance ＞2m/s NFC card reader (optional） Card reader type 13.56Mhz non-contact IC card reader, supporting Type A/B card reading Reading distance ≤7cm
Mechanical/electrical parameters Interface USB Type-C、 USB COM、RS232 Optional Blue tooth and 2.4G Dimension(mm) 95mm x 75mm x 67mm weight 223g（with battery） Volatage 5V USB power supply or 5V~1A adapter (optional 2000mA built-in battery） current 250mA (working); 50mA (standby); DC 5±0.25V (charging)
Environment
Parameters Working temperature -20℃~+60℃ Storage temperature -30℃~+70℃ Working humidity 5%~95%（no condensation） Environment Light 0~100,000LUX Static Protection ±15kV (air discharge); ±8kV (direct discharge) Production Details Company Profile Shenzhen Masung Technology Co., Ltd. (Here in after referred to as MASUNG)
