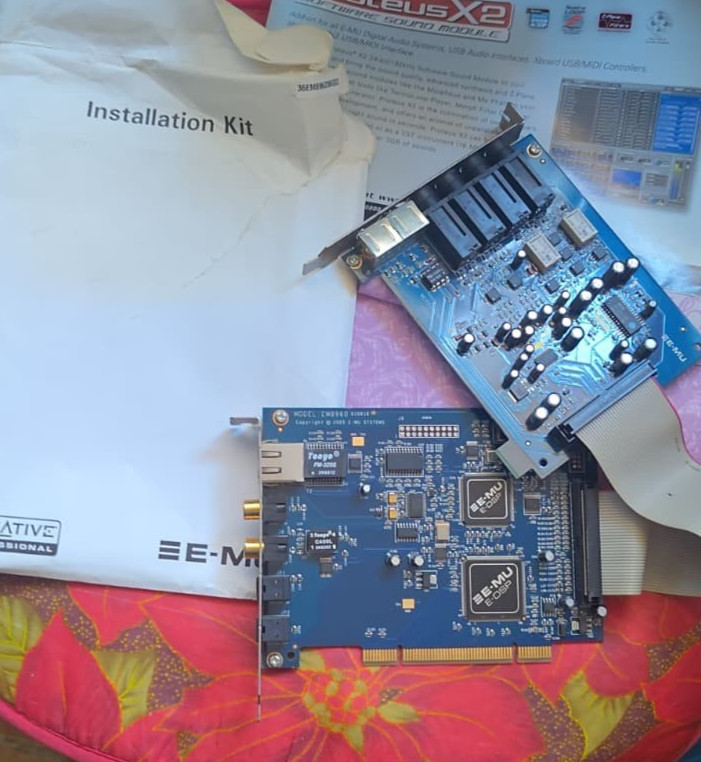

Up for sale superior,pro class/ studio PCI vintageaudio cards set : CREATIVE E-MU 1212m12 channels,best card of 2005 year!Consists of 2 cards:e-mu 1010 v2 pci card(main)*EM8060*EM8981 daughter cardBased onDSP EMU10K2(Sounblaster Audigy variation)Designed for Win 2000/XP,but works on win 7 also.From win 8 to 10 can be adopted with some skills...Ask AI help,also can be used kX project drivers!Main technical characteristics of E-MU1212m PCI - Sampling frequencies: 44.1/48, 88/96, 174/192 kHz from internal or external source
- Bit depth: 24 and 16 bits
- DSP: 32-bit with 67-bit sum register
- Hardware-accelerated mixing and effects overlay 100MIPs.
- PCI Bus-Mastering DMA support to reduce CPU load
- Hardware direct monitoring with zero latency
- Hardware support for ASIO 2.0, WDM, MME, DirectSound (DirectSound3D and EAX are not supported)
- 2 analog inputs and outputs
- SPDIF input and output (coaxial and optical, optical combined with ADAT)
- ADAT input and output (8 channels at 44.1/48 kHz, 4 channels at 88/96 kHz, 2 channels at 174/192 kHz)
Inputs - ADC - AK5394 (AKM), OA - NJM2068M (JRC)
- Professional level +4 dBu nominal, 20 dBu maximum,balanced connection
- Household level -10 dBV nominal, 6 dBV maximum,unbalanced connection
- Frequency ripple +/- .05dB, 20Hz - 20kHz
- THD+N (1kHz @ -1dBFS): -110dB (.0003%)
- Signal/noise (A-weighted, 22 kHz bandwidth): 120 dB A
- Dynamic range (1 kHz, in 22 kHz band): 120 dB A
- Channel Penetration (1 kHz @ -1dBFS): < -115 dB
Outputs - DAC - CS4398 (Cirrus Logic), OA - NJM2068M (JRC)
- Professional level +4 dBu nominal, 20 dBu maximum,balanced connection
- Household level -10 dBV nominal, 6 dBV maximum,unbalanced connection
- Frequency ripple (20Hz - 20kHz): +0.0/-0.35dB
- THD+N (1kHz @ -1dBFS): -105dB (0.0006%)
- Signal/noise (A-weighted, 22 kHz bandwidth): 120 dB A
- Dynamic range (1 kHz, in 22 kHz band): 120 dB A
- Channel Penetration (1 kHz @ -1dBFS): < -120 dB
E-MU specifically points out that the same converters are used by the more expensive ProToolsHD 192 interface fromDigidesign. DUE TO AGE-SOLD AS/IS!!!Customs fees on buyers responsibility.Ships from Latvia-to EU zone no fees!And please look at my other items.  |
|
