• This card capability allow for upgrade with additional serial or parallel cards to your computer easily. Note: Open the "CH38XDRV"file in the CD to install.
• Multi-mode IEEE 1284 compliant controller (SPP, PS2, EPP, ECP), Faster data rates up to 1.5Mbps for parallel port.
• Plug and Play, Automatically selects IRQ & IO address, Supports IRQ sharing.
• Compliant with ExpressCard/34mm Standard; Compatible to 1-Lane (x1) PCI-Express Throughput.
• Operating System: Windows 32bit 2000/XP/2003 Server/Vista and 64bit XP/2003 If there was any problem with PCIe combo serial parallel expansion card, pls feel free to contact us, we will provide a solution within 24hrs.

Product Details

Fully compliant with PCI-Express Base Specification, Revision 1.0a

PCIe Multi Function Peripheral controller with x1 Lane Interface

Support for D1, D2, D3hot and D3cold

Support PCIe Power Management

Serial Port

16C450/550/Extended 550 compatible UARTs

Supports RS232, RS485 & RS422 modes

Bi-directional speeds from 50 bps to 16Mbps/Port

Full Serial Modem Control

Supports Hardware, Software flow control

5, 6, 7, 8 and 9-bit Serial format Support

Even, Odd, None, Space & Mark parity supported

Custom BAUD Rates supported with external clock or by programming internal PLL

On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port

Supports remote wakeup and power management features

Serial Port transceiver shutdown support

Support slow IrDA on all Serial Ports

IEEE 1284 Parallel Port

Multi-mode IEEE 1284 compliant controller (SPP, PS2, EPP, ECP)

Faster data rates up to 1.5Mbps for parallel port

Operating System:

Windows 32bit 2000/XP/2003 Server/Vista and 64bit XP/2003 Included:

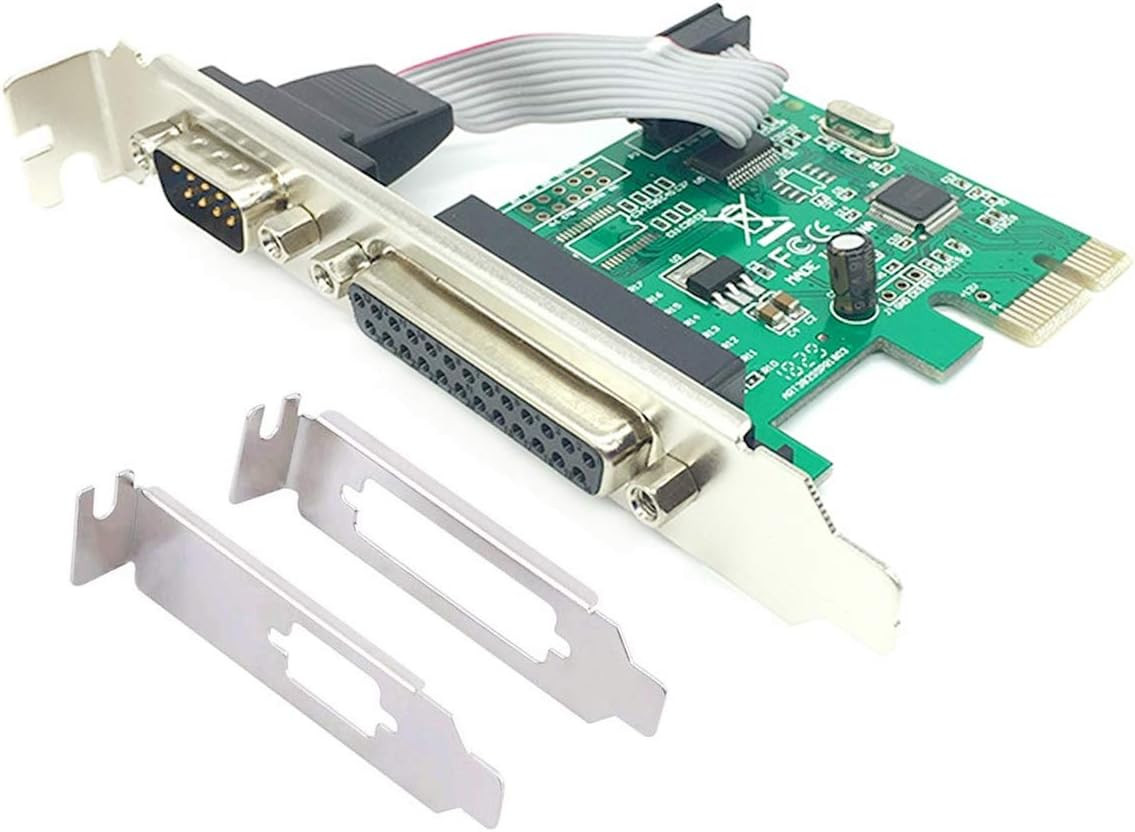

PCIe Combo Serial Parallel Expansion Card X 1

Parallel Port Bracket X 2

Driver CD X 1
