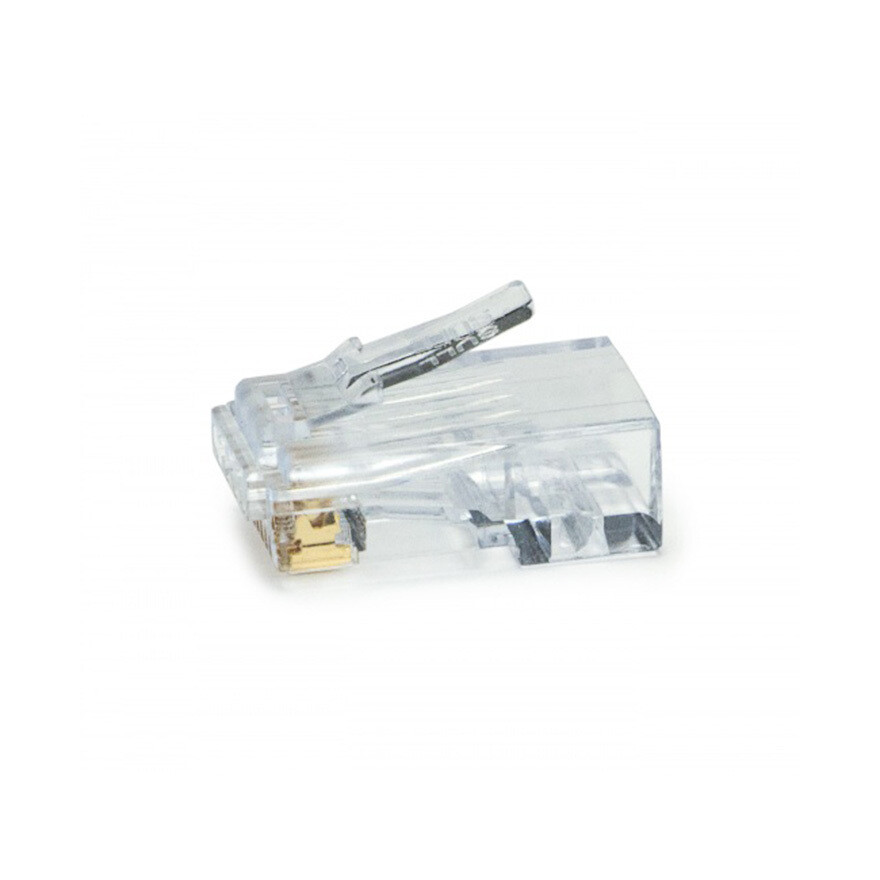

Platinum Tools® 100029C ezEX®48 – RJ45® Cat6A Connectors(Clamshell Pack of 50)
Provide greater cable-to-connector compatibility and meethigher performance demands! Designed for larger cables and conductors, thepatented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar.These connectors allow ‘big’ conductors to pass through the front end of theconnector making it easy to verify the wiring sequence before terminating. Thisconnector is typically used with Cat6A (Lg. Cat6) cabling and is recommendedfor PoE/PoE+ and Data applications. The termination tool for these connectorsis the EXO Crimp Frame and EXO-EX Die (100061C).
They are also TIA, TAA, RoHS 2, UL, and FCC compliant. Bestof all they work with solid or stranded 23-22 AWG and are made in the USA.
Platinum Tools®, founded in 1997, was created based upontwo very simple objectives. First, develop and source the absolute bestpossible solutions for the preparation, installation, and hand termination ofwire and cable. Second, implement an operational infrastructure that candeliver these products in an efficient, timely and high quality manner. All ofPlatinum Tools® products absolutely must satisfy three critical benchmarkcriteria, utility of function, quality of function, and economic value.
Specifications
Hi-Lo stagger isolates each conductor for higherperformanceSimple one piece/pass through design, no bars orlinersInsulation Diameter (Conductor) Size range: .043″ –.048″ (1.09 –1.22mm)Max outer diameter: .290″ (7.36mm)50 micron gold plated contactsSolid or Stranded 23-22 AWGTIA, TAA, RoHS, UL & FCC compliantTypically used with Cat6A & Lg Cat6Made in the USAUS Patents 9,543,729 B2; 10,116,082 B2; &10,573,990 B2. Foreign patents.Model: ezEX®48 – RJ45®MPN: 100029CPackage Weight: 1 lb.
