PLEXTOR 12/20Plex SCSI CD-ROM, modelPX-20TSi

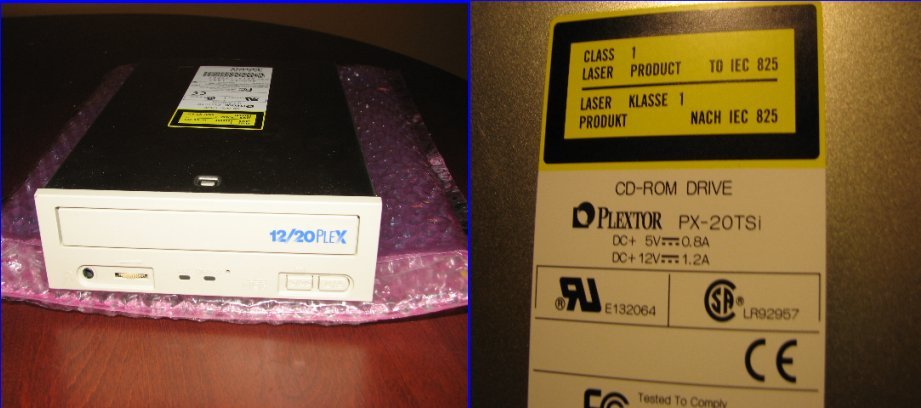

This sale is for a PlextorPX-20TSi 12/20 Plex Internal high speed SCSI CD-ROM drive.

Condition:

OEM. Excellent condition. As a free service to our customers, we have updated thesedrives with the latest Plextor firmware.

Warranty:

90 Day Warranty. We pledge to offer the best service and warranty to all of ourcustomers! We are extending a 90 day warranty on thisitem. This is our way of saying thank you for allowing us to serveyou.

Certification:

This is angenuine product from this manufacturer.

InformationSummary:

The Plextor 20PleX high-performance Fast SCSI drive is the firstprofessional quality drive designed for twenty speed performance. It isbased on the Partial CAV technology, which enables to improve theaccess time and increase the data transfer rate far above 12-speed. The20PleX offers an amazing 3000 KB/sec data transfer rate and a 95msaccess time. This will increase both multi-user and multi-taskingperformance. The buffer of 512K further enhances the CD-ROM drives'efficiency and reduces CPU utilization. The 20PleX is compatible withall major operating systems and CD media types. All packages includemanual and Plextor Manager™ software. Plextor Manager™ provides manyvaluable utilities including 12-20X speed audio capture. Thismultimedia machine is the state-of-the-art performance standard forvideo, graphic database and document imaging applications running fromCD-ROM, including the latest virtual reality and interactive multimediatools.


Features:

• 12x min/20x max read speed
• Plextor name and reliability
• 50-pin SCSI interface
• Max. 3.0MB/sec Data Transfer Rate
• Access Speeds
• Random Access 95ms
• Random Seek 90ms
• 512KB Buffer
• Fast SCSI-2 Interface
• True Plug & Play/ SCAM Compatible
• Capable of High Speed Digital Audio Extraction
• Compatible with:
  • Windows, Windows 95, Windows NT, UNIX, Novell, OS/2 Warp, Solaris& Macintosh
• MultiRead Compatible

Specifications:

Disc Usable Formats CD-DA
CD-ROM Mode 1 (IS09660)
CD-I
CD-ROM XA Mode 2 (Form 1&2)
Photo CD Multisession
Video-CD
CD+G
CD Plus
Enhanced CD
CD-RW Disc Diameter 12cm (60 min. & 74 min.) Rotational Speed at 20X Inner track: 6,360 rpm
Outer track: 4,000 rpm Performance Data Transfer Rate Sustained Max. 3.0MB/second Burst 10MB/second (synchronous)
5.0MB/second (asynchronous) Access Speeds Random Seek 90ms Random Access 95ms Full Stroke Access 220ms Data Buffer 512KB (128 Blocks) Spindle Motor Brushless
Mode 1: 1 Block/10 12 bits
Mode 2: 1 Block/10 9 bits Dimensions & Weight Dimensions (W/H/D) 146 x 41.3 x 202 mm Weight 1.1 Kg Reliability MTBF 100,000 POH Disc Loading 10,000 times
