Note:
2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment 2.5G Ethernet.
If you need the output to reach 12V/3A, the input device must the IEEE802.3BT protocol, otherwise the output can only reach 12V/1A or 12V/2A.Specifications：
Comply with IEEE802.3af/at/BT
2.5Gbps data transmission
PD 44V - 57V voltage transmission, Automatically detects power supply from PSE power supply module
12V/3A 36W power output, easy to access Poe network for non-PoE terminal
the isolation circuit protection, can effectively protect electrical equipment.
the short circuit, overvoltage protection

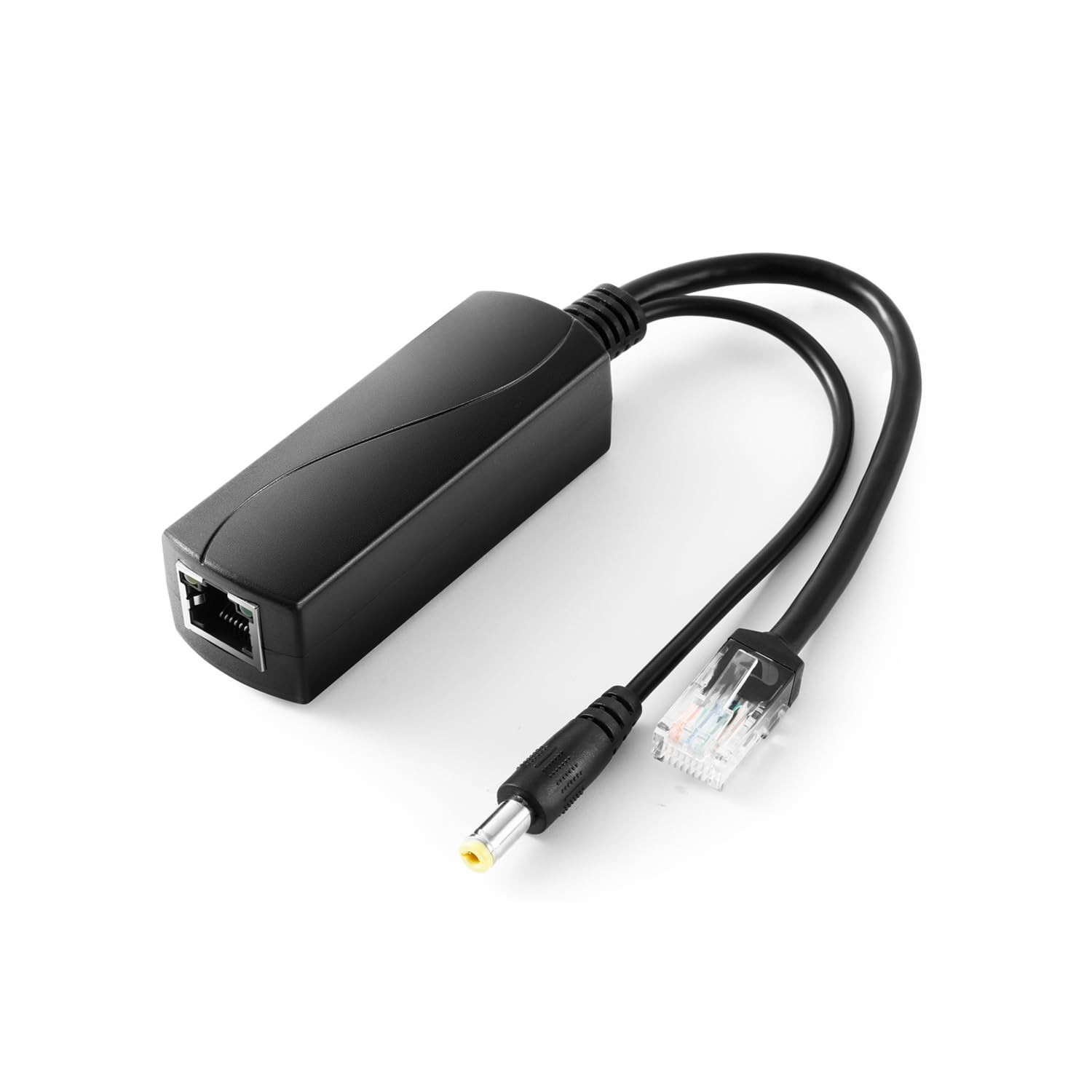

1500V high voltage isolationModel: PS5712BG
Transfer Rate: 2.5Gbps, 10/100/1000Mbps(Gigabit)
Power Input: DC 42.5-57V
Power Output: DC 12V/3A
Standard: IEEE802.3 af/at/bt
TRNF: : 1 Input RJ45 port, 1 output RJ45 port, 1 DC output（5.5x2.1mm）
: Yellow PoE lamp
Temperature: Work within -20~50°,Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
DC Plug: 5.5 x 2.1mm
Dimension: 27.5 x 2.8 x 2.3cm
Weight: 0.05kgPackage Content:
1 * POE Splitter (PS5712BG)
【DC 12V/3A Output】 IEEE802.3 BT 48V PoE power convert to DC 5.5*2.1mm Plug 12V/3A(36W) adaptive power output (input device must the IEEE802.3BT) , the DC cable only deliver power.
【2.5Gbps Speed】 up to 2.5Gbps Internet speed, enable your device run at full speed. Provide super fast Ethernet transmission without delay.
【Easy Set up】 Easy to power your device with plug and play function, Auto detect power from Power Sourcing Equipment. Auto deliver right power for terminal device.
【Multiple Protection】the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.
【How to Max 36W Output】 As IEEE802.3at max output only 30W, if you need max 36W output, need to IEEE802.3BT PSE power for this PoE splitter. Then the PoE splitter will separate PoE into power and data via RJ45 port and DC port, provides Max 36W power and data for Non-PoE terminal device like IP .
