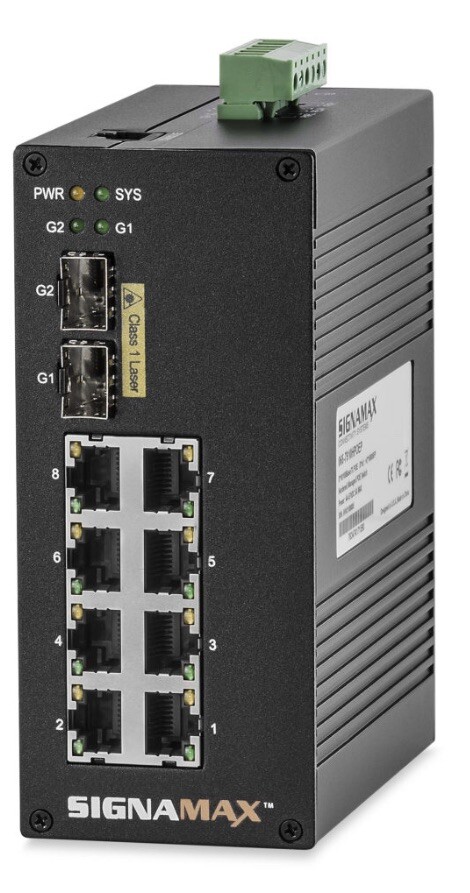

The Signamax 10/100 Managed Layer 2+ Industrial PoE+ Switches are designed to operate in rugged environments with extreme temperature conditions. They are equipped with two different 10/100BaseT/TX RJ45 port configurations, with 6 to 8-ports supporting PoE+ (30 watt) plus 3 to 2-1000Base SFP ports, depending on the part number chosen. Both models are offered in a compact, all-metal IP40 case with built-in DIN-rail mounting. This series of switches function at temperatures ranging from -40°F to 167°F (-40°C to 75°C), and they are fully managed switches, with system administrator control.
The advantage of PoE+ support allows these switches to handle Pan/Tilt/Zoom for IP security camera requirements, along with easy implementation of resilient, high-capacity network supporting critical Security and Public Safety applications over Gigabit Ethernet copper and fiber backbones. They also support rate control for individual port maximum bandwidth settings, allowing high-granularity network control. Recover-Ring II™ capability allows redundant ring network recovery in <20 ms, making these ideal switches for perimeter security requirements.
APPLICABLE STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af PoE (15.4 watt)
IEEE 802.3at PoE+ (30 watt)
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE802.1w Rapid Spanning Tree Protocol
IEEE802.1D Spanning Tree Protocol compatible
IEEE 802.1Q Tagged VLAN with GVRP
IEEE 802.3x Flow Control
IEEE 802.1x Access Control
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3ad LACP
PORTS
P/N 065-7909HPOEP: 6 – RJ-45 10/100BaseT/TX Auto-Negotiation, Auto-MDI/MDIX ports, plus 3 –1000Base SFP ports.
P/N 065-7910HPOEP: 8 – RJ-45 10/100BaseT/TX Auto-Negotiation, Auto-MDI/MDIX ports, plus 2 –1000Base SFP Storm suppression enabled.
LED STATUS INDICATORS
Per Switch: Power Status 1
Per Port: PoE+ for 10/100TX: (Amber); Link/Activity, 10/100 Speed: (Green), Link/Activity, Gigabit Speed: (Green); SFP Activity: (Green)
PERFORMANCE
Latency: <4.5 μs (LIFO).
Throughput, per port: 1.48810 million pps (64-byte packets)
Switch Fabric Speed: 8.0 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 8 K MAC addresses; Per-port programmable MAC address locking; Up to 24 Static Secure MAC addresses per port
Frame Buffer: 1 MB
Port Mirroring: Inbound and Outbound, assignable to any port
INTERNETWORKING PROTOCOLS SUPPORTED
Recover-Ring II™: Supports recovery of ring-based network architecture in <20ms. Proprietary.
Link Aggregation Control Protocol Trunking: Up to 13 LACP trunking groups; up to 8 ports for each group
GARP VLAN Registration Protocol / Generic Attribute Registration Protocol: IEEE 802.1Q with GVRP/ GARP
Multicasting: Supports IP Multicast Filtering via IGMP Snooping V1, V2 & V3
Spanning Tree Protocol / Rapid Spanning Tree Protocol: IEEE 802.1d/1w
Link Layer Discovery Protocol: IEEE 802.1AB
VLAN CAPABILITIES
Port-based VLAN; IEEE 802.1Q Tag-based VLAN; up to 255 active VLANs possible
QoS CAPABILITIES
Supports 802.1p QoS with four level priority queue
Supports two scheduling types, Strict Priority and Weighted Round Robin (WRR) with user-variable weighting.
Supports bandwidth egress rating per port; Bandwidth Egress Rate Limiting
MANAGEMENT
Access Methods: Console port access via RS-232C RJ-45 local console serial port, Telnet remote access, SNMP agent, and Web browser.
Software Upgrade Capability: Via TFTP
SNMP v1, v2c, and v3 Network Management
RFC 1213 MIB (MIB-2)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
P-Bridge MIB
Q-Bridge MIB
RSTP MIB
Ethernet-Like MIB
ELECTRICAL CHARACTERISTICS
Maximum Switch Power Consumption w/o PoE connections: 15 Watts.
Maximum IEEE 802.3at PoE+ Power Consumption:
P/N 065-7909HPOEP: Full load with 6 ports PoE+ (30W for each PoE port): 180 Watts.
P/N 065-7910HPOEP: Full load with 8 ports PoE+ (30W for each PoE port): 240 Watts.
Maximum Total Power Consumption:
P/N 065-7909HPOEP (Switch plus 6 PoE+ ports at full load): 195 Watts.
P/N 065-7910HPOEP (Switch plus 8 PoE+ ports at full load): 255 Watts.
DC Input Range: 48 – 57 V DC, connected via redundant terminal block.
ENVIRONMENTAL REQUIREMENTS
Operating Temperature: -40°F to 167°F (-40°C to 75°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Operating Humidity: 5% to 95% (non-condensing)
PHYSICAL CHARACTERISTICS
Dimensions: 2.37” W x 4.55” D x 5.45” H (60.2mm x 115.5mm x 138.5mm)
Housing: IP40 protection, metal case. Pre-attached DIN-rail and wall mounting kit included.
Weight: 1.65 lbs (750 g)
EMI: FCC; EN61000-6-3; EN55022; EN61000-3-2; EN61000-3-3
EMS: ESD Standards (IEC 61000-4-2); Radiated FRI Standards (IEC 61000-4-3); Burst Standards (IEC 61000-4-4); Surge Standards (IEC 61000-4-5); Induced RFI Standards (IEC 61000-4-6); Magnetic Field Standards (IEC 61000-4-8);
Environmental Test Compliance: Vibration Resistance (IEC 60068-2-6fc); Operation/Storage/Transport; Criterion 3 Shock (IEC 60068-2-27) Half-Sine Shock Pulse; Operation; Half-Sine Shock Pulse; Storage/Transport; Free Fall (IEC 60068-2-32 Ed)
