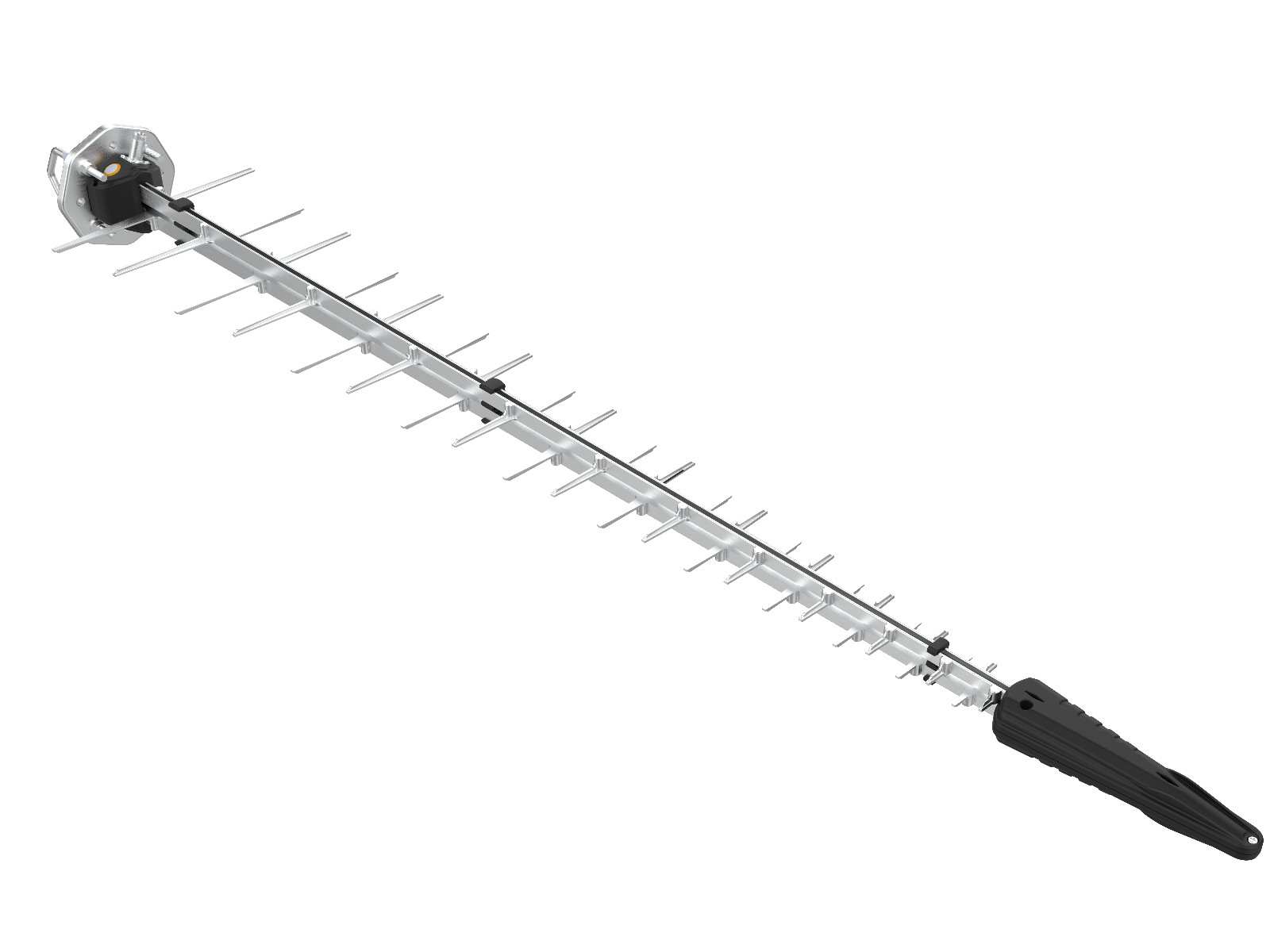

Poynting LPDA-500 Ultra-Wideband 5G Antenna
The Poynting LPDA-500 Ultra-Wideband Log-Periodic Dipole Array 5G Antenna is a high-performance directional antenna designed for ultra-wideband cellular applications. Covering 617 to 7200 MHz with up to 11 dBi gain, it supports 5G, LTE, 4G, 3G, 2G, 5G RedCap, Wi-Fi, and other wireless networking standards.
Key Features
- Ultra-wideband frequency coverage from 617 to 7200 MHz
- Supports 5G, 5G RedCap, LTE, 4G, 3G, 2G, and Wi-Fi applications
- High gain performance up to 11 dBi
- Directional LPDA design for improved signal strength
- N-Type connector for reliable RF connectivity
- Pole or wall mount installation options
- Manufacturer warranty: 3 years
Product Specifications Product Poynting LPDA-500 Ultra-Wideband Log-Periodic Dipole Array 5G Antenna Frequency Range 617 MHz to 7200 MHz Gain Up to 11 dBi Antenna Type Directional Log-Periodic Dipole Array Supported Technologies 5G, 5G RedCap, LTE, 4G, 3G, 2G, Wi-Fi Connector N-Type Mounting Options Pole Mount or Wall Mount Warranty 3 Years Manufacturer Warranty Frequency Bands Frequency Band 617-698 MHz, 698-803 MHz, 791-894 MHz, 868-915 MHz, 880-960 MHz, 1700-1900 MHz, 1900-2200 MHz, 2300-2400 MHz, 2400-2500 MHz, 2500-2700 MHz, 3400-3800 MHz, 3800-4200 MHz, 5000-6000 MHz, 6000-7200 MHz Supported 5G Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n102, n104, n106, n256
Supported LTE / 4G Bands
B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Product Box Contents
1 A-LPDA-0500-V1-01
Mounting bracket:: Econo bracket, U-bolt and fasteners suitable for pole mounting
