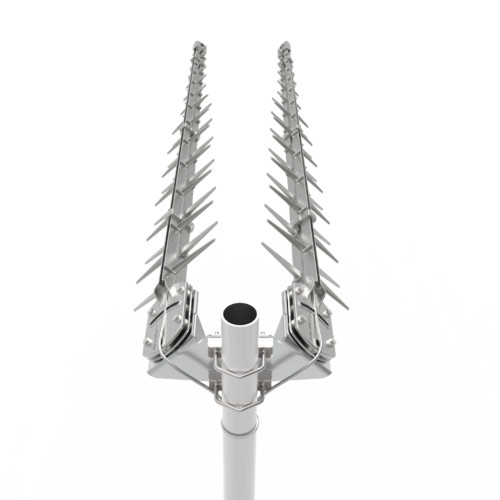

POYNTINGCELLULAR DIRECTIONAL YAGI HIGH GAIN OUTDOOR ANTENNA 698 MHZ-3800 MHZ MIMOThis high-gain all band antenna is one of our most popular products. The antenna covers virtually all of the international wireless, cellular and mobile data bands. These bands include GSM 900, GSM 1800, UMTS and LTE and therefore it can be configured for a wide variety of wireless communication systems.To further enhance the functionality of this antenna, Poynting has added a range of extended cellular and WiMAX bands. This includes the so-called Digital Divergent Bands for European markets and the USA and the licensed and unlicensed bands in the 2.3 to 2.7 GHz data bands.
The High-Gain All Band Antenna has proven highly successful in a wide variety of climates and conditions, including the tropics, desert climates and the cold of Nordic winters.
The antenna is weatherresistantand highly robust in design.Using the High-Gain All Band Antenna can support wireless data in weak signal areas and it has been successful in offering wireless services in more remote and even rural areas.
- Futureproof wideband LTE and Wi-Fi antenna covering 698 – 3800 MHz
- Compatible with 4G, 3G and 2G technologies
- Covers the CBRS Band from 3.2 GHz to 3.8 GHz
- Improves mobile network subscriber's user experience
- Increased connectivity stability
- Weather- and vandal resistant
- Used in extreme weather environment
- 11dBi is the peak gain across all bands from 698 - 3800 MHz
- Gain @ 698 - 960 MHz: 11 dBi
- Gain @ 1710 - 2700 MHz: 11 dBi
- Gain @ 3400-3800 MHz 2.3dBi
*Antenna gain measured with polarisation aligned standard antenna
Cables Length 2 x 23 feet (7 meters) with SMA Male Connectors
Mounting Bracket Included: Econo brackets, U-Bolts and fasteners which are suitable for pole mounting up to 50mm andBRKT-33±45° Polarisation Bracket for LPDA-92
