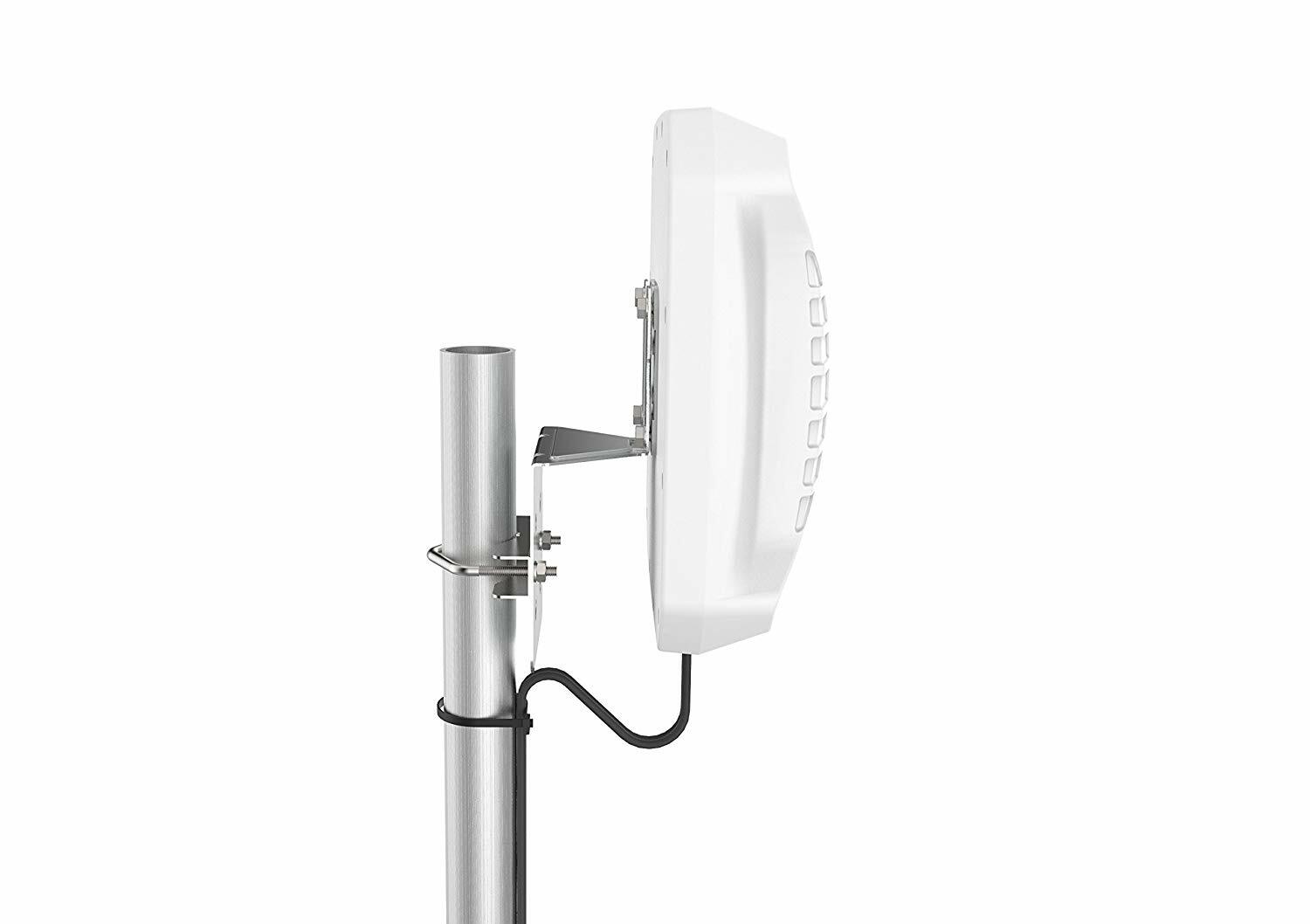

The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The XPOL-2-5G antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 2 dBi higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.

2-3 dBi higher gain over all the bands compared to “V2” and new 3400MHz-3800MHz, 5G band with 11dBi gain.

The XPOL-2-5G is suitable for the following Cellular frequency bands| 698-960 MHz | 1710-2170 MHz|2300-2500 MHz|2500-2700 MHz|3400- 3800 MHz| and the following Wi-Fi frequency bands |2400-2500 MHz|

Connectors: 2 X SMA Male
Cable Length: 5 meter / 16 feet
Coax Cable Type Twin HDF 195

Included Z-Bracket wind survival: <160km/h
