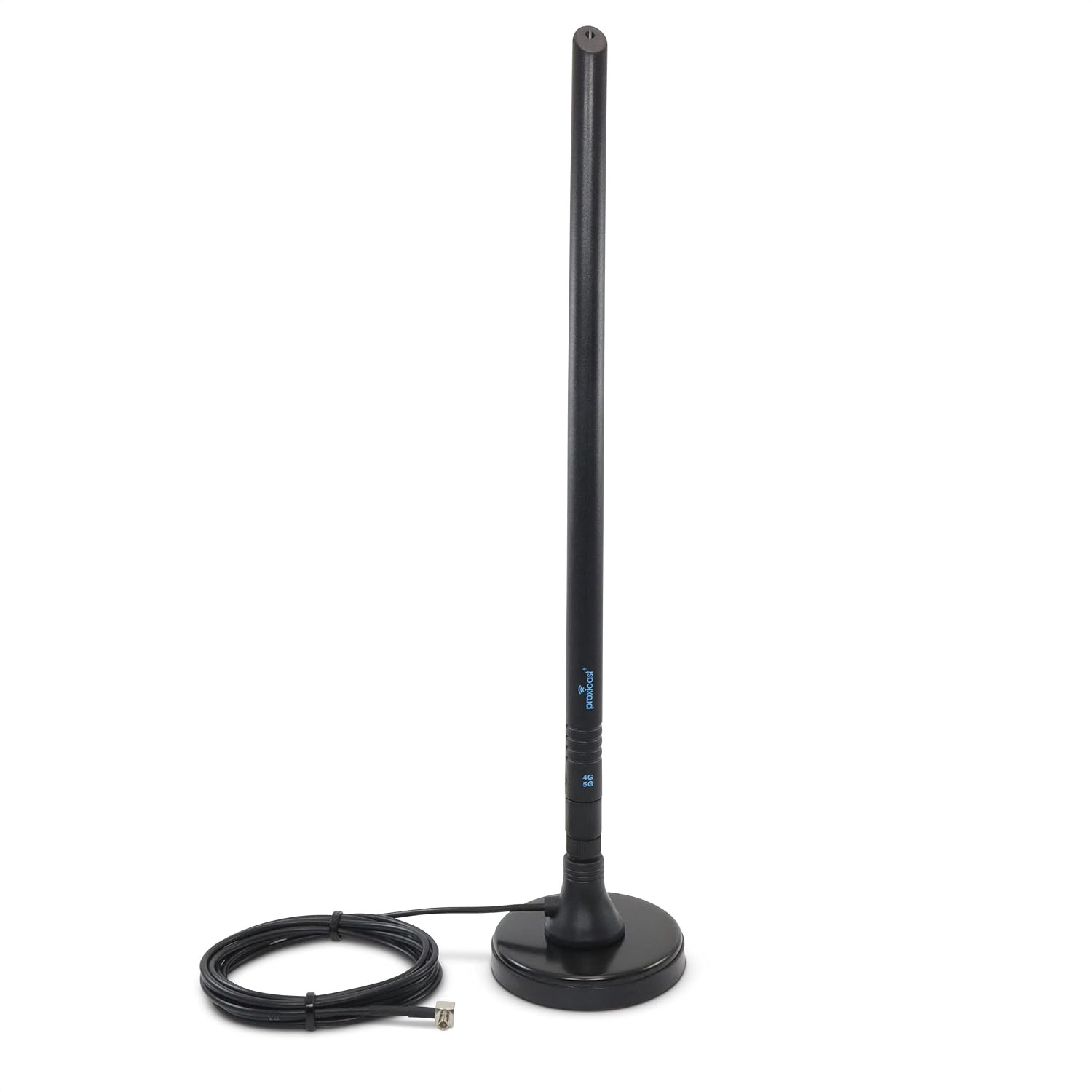

Proxicast 5-8 Dbi 4G/5G External Magnetic High Gain Antenna - TS9 MaleDescription AntennaDescription 8 dBi High Gain External Magnetic 4G/5G Antenna Brand Proxicast Manufacturer Proxicast Number of Packs 1 Unit Count 1 Count Item Highlight For AT&T Nighthawk M6/MR6110 & MR6500, M5/MR5200, Verizon JetPacks & 4G/5G Hotspots with TS9 Connectors - ANT-006-TS9 Global Trade Identification Number 00617237750129 Number of Items 1 Item Type Name Antenna Model Number ANT-006-TS9 Mfr Part Number ANT-006-TS9 Number of Channels 1 Impedance 50 ohm Maximum Range 52800 feet Color 1 Pack Antenna 8 dBi High Gain External Magnetic 4G/5G Antenna

Product description Proxicast 8 dBi High Gain External Magnetic 4G/5G Antenna Compatible with AT&T Nighthawk, Verizon Jetpacks & Devices with TS9 Jacks

Includes Proxicast's 4G/5G high-gain omni-directional antenna (ANT-120-006) + extra large 3 in. magnetic antenna base with 79 in. (6.6 ft) of low-loss coax cable and TS9 plug (ANT-120-MB9).

The detachable polycarbonate antenna swivels 90 degrees and rotates 360 degrees; magnetic base and long coax cable allow optimal positioning for maximum signal reception.

Compatible with many 4G/LTE modems having TS9 external antenna connectors including (partial list):

• AT&T Nighthawk / Netgear MR1100 / M1, MR5100 / MR5200 / M5, MR6110 / MR6150 / MR6500 / MR6550 / M6, M6 Pro, MR7400 / M7, USB800 Unite Express 2 (AC797S) Unite Express (AC779S) Unite Explore (AC815S) Unite Pro (781S) Velocity 2 / ZTE MF985 Velocity / ZTE MF861, MF923 Beam / Netgear 340U Momentum / Sierra 313U Unite / Netgear AC770s Elevate / Sierra 754S
• Verizon JetPack AC791L, MiFi 6620L, 7730L, 8800L Novatel 551L, U620L, USB730L Novatel USB760, Pantech MHS291L, MHS800L
• T-Mobile Huawei E587, Sonic, UMG366, Jet 2.0, ZTE MF61
• Netgear LB2120, LB1121, LB1120

Electrical Properties Frequency Range: 600-6000 MHz Peak Gain: 8 dBi Impedance: 50 Ohms Radiation: Omni Ground Plane: Integrated Mechanical Properties Connector: TS9 (plug) Material: Polycarbonate / Steel / Brass / Rubber Op. Temp: -30 to +75C Coax Cable: 79 in / 200 cm LMR100 Low Loss Overall Height: 13.25 in. / 33.7 cm Diameter Base: 3 in. / 70 mm Diameter Antenna: 0.51 in. / 13 mm

Small hole on the top of the antenna is by design and is not a defect.

Not intended for permanent outdoor use.

5G & LTE devices should use 2 identical antennas for best results.

High gain antennas are appropriate when signal strength without the antennas is below 60% (~2-3 bars), otherwise your signal may actually be reduced due to the automatic gain control feature that is required by the FCC in all cellular radios.

TS9 Connectors Are Delicate

TS9 connectors are compression fit - they are not intended for repeated insertions and removals. When inserting/removing the male connector, hold by the silver block and push/pull straight in/out. Pulling at an angle will loosen the male connector.

Don't Push Too Hard

The TS9 connector is *NOT* designed to fit all the way into the modem's external antenna port. Pressing the connector into the modem too firmly can damage the device.

Fix a Loose Connection

If the TS9 connector becomes loose, gently squeeze the opposing blades on the tip with tweezers or needle-nose pliers.

• BOOSTS 4G & 5G Signal Strength and Upload / Download Data Speeds and Increases Range on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers
• COMPATIBLE with Any Brand of USB Modem, Router, Gateway or Hot spot with a TS9 External Antenna Jack. Fits many Netgear, Novatel (InSeeGo), Sierra, Huawei, ZTE and other brand Mi-Fi's & Hotspots.
• ENABLES HotSpot Antenna to be Positioned for Maximum Signal Reception (more bars)
• CONNECTS Directly to Device's External Antenna Port. Use 2 to get MIMO Antenna Diversity / Improved Signal Quality.
• SUPPORTS all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (AT&T, Verizon). Also Compatible with FirstNet and CBRS Systems.
