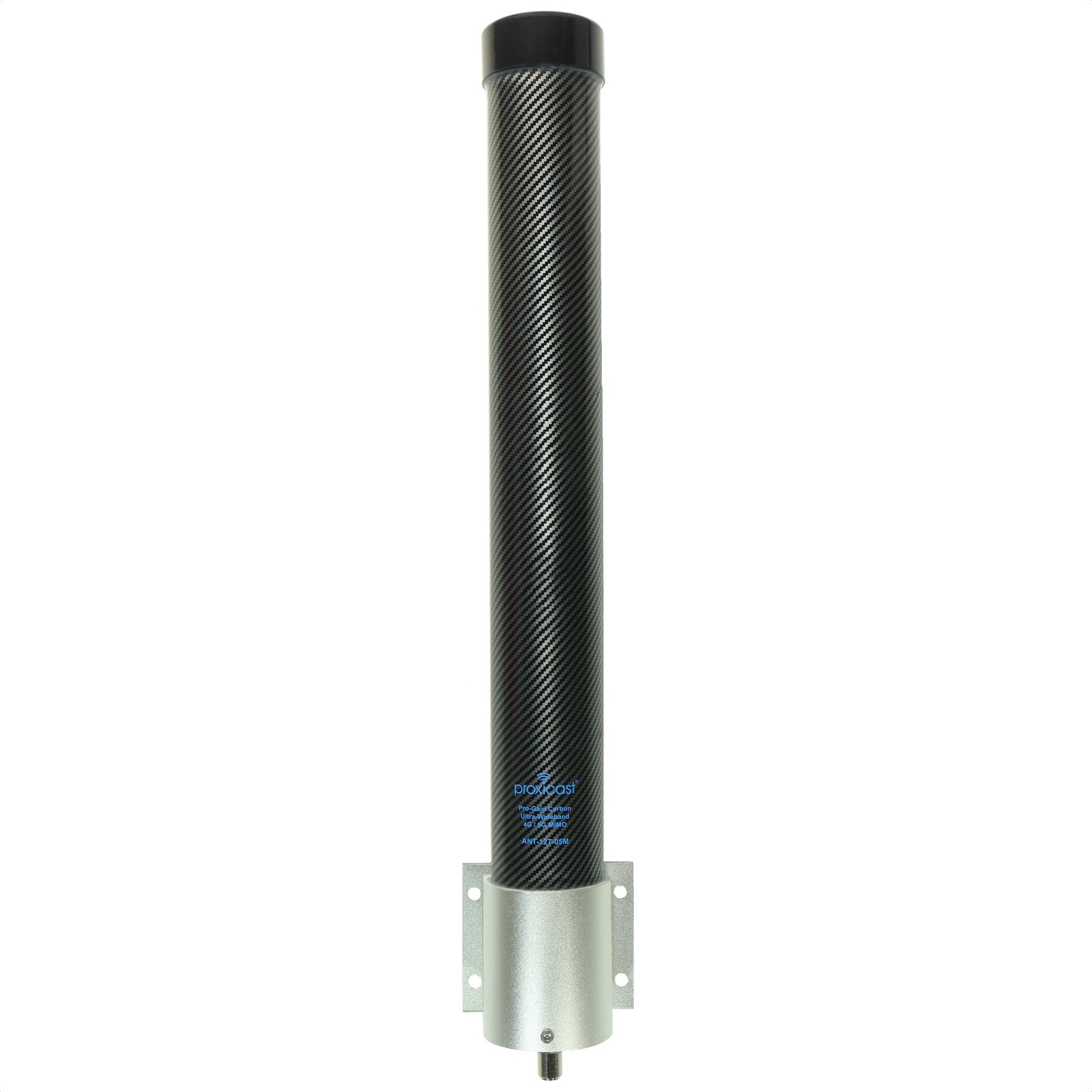

Proxicast Pro-Gain 4G / 5G MIMO Antenna - Wide-Band Omni-Directional for Cellular Modems & Routers on Verizon, ATT, T-Mobile, Telus, Bell Canada, Rogers, Movistar, Telcel, Claro (ANT-127-05M Carbon)
- MIMO PERFORMANCE from Omnidirectional Elements with 7 dBi Peak Gain on all 4G/LTE and 5G Networks Worldwide
- ENHANCES SIGNAL & DATA SPEEDS for Sites with Poor Cellular Signal Coverage
- DUAL FEMALE N CONNECTORS Integrated to Antenna Base *** REQUIRES 2 COAX EXTENSION CABLES ***
- COMPATIBLE with Any Brand of Modem, Router, Gateway or Hotspot including Cisco, Cradlepoint, Netgear, Pepwave, MoFi, Digi, Sierra Wireless
- SUPPORTS all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (A&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (ATT, Verizon). Also Compatible with FirstNet and CBRS Systems.
Now you can enjoy the benefits of 4G/LTE & 5G MIMO technology AND omni-directional coverage with a single antenna.
Proxicast's unique new commercial-grade omni-directional MIMO antenna is compatible with 4G/LTE and 5G data services from Verizon, ATT, T-Mobile, Bell Mobility, Rogers and most other cellular operators worldwide.
Two separately fed ultra wideband elements in a single housing enable multiple input / multiple output LTE connectivity, resulting in higher performance.
With appropriate adapter cables (not included), this antenna is compatible with cellular modems, hotspots and routers from Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and others.
The antenna’s rugged housing, extra heavy duty mounting hardware and corrosion-resistant materials are ideal for outdoor applications.
Electrical
• Frequency: 600-6000 MHz
• Impedance: 50 Ohm
• Gain: 4~7 dBi freq. dependent
• Beamwidth: Horiz. 360 deg, Vert. 65/45/40 deg
• VSWR: < 2.0
Mechanical
• Connectors: 2x N Female
• Dimensions: 30 x 3 in (4.7 w/ bracket)
• Weight:6.25 lb
• Op Temp: -40 ~ 65C
**IMPORTANT
This antenna is for direct wired connection to cellular data devices with 2 antenna connectors
DON’T
• Use RG59/RG6 coax (75 Ohm TV cable from the hardware store) – signal will be seriously degraded
• Use a splitter to connect 1 modem port to both antenna leads
• Focus on signal “strength” (RSSI or bars); optimize signal “quality” (SINR, RSRQ) instead
DO
• Use 50 Ohm RF coax cables. See part# ANT-140-020
• Keep cables as short as possible
• Weatherseal outdoor connections. Use Silicone Tape part# ANT-900-002
USA-based Proxicast has been designing and building innovative electronic products since 2000. Includes 12 month Warranty & US-based Technical Support.
