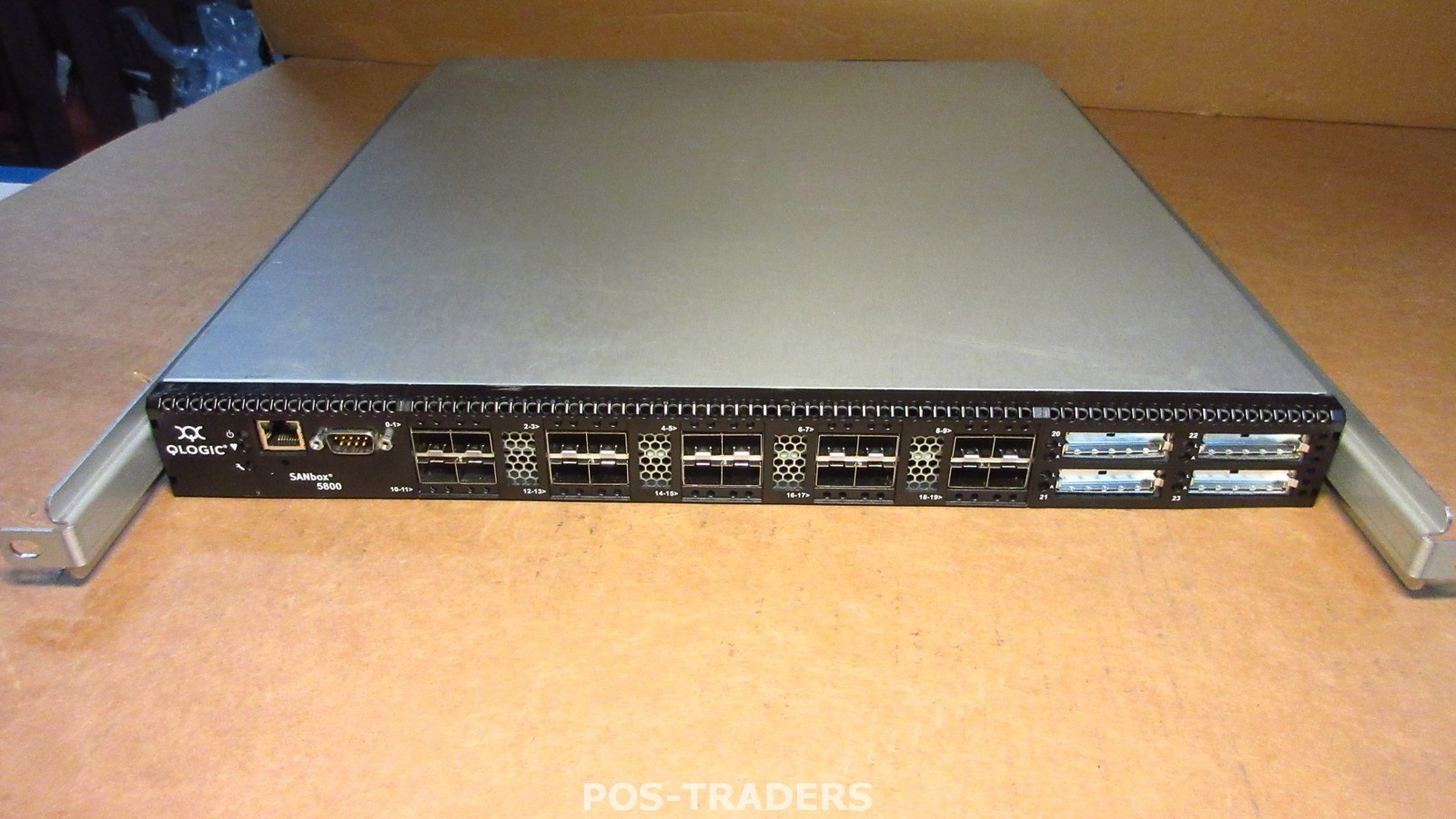

Q-Logic 31970-01 5800 Series Model 5802V SANbox Stackable Channel Switch NO SFPS
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
EXCLUDING SFP'S
See photos for actual item!
Price is for 1 item.
Speed8GbpsAggregate Bandwidth544Gbps per chassis, end-to-endOperation ModesNot Specified by ManufacturerSwitch LatencyFabric latency less than 0.2 µsMaximum Frame Size2148 bytes (2112 byte payload)ScalabilityMulti-switch fabric support for all topologies including: stack, cascade, cascaded loop, and mesh
Multiple 10/20Gb or 8Gb links between switches
Adaptive trunking, intelligent path selectionManagementProcessorNot Specified by ManufacturerManagement InterfaceQuickTools web applet
Enterprise Fabric Suite 2007
Command Line Interface
API, GS-4 Management Server (including FDMI), SNMP, RADIUS, FTP, TFTP, SMI-SGeneralForm FactorHot-pluggable, industry-standard 3.3 volt SFP + transceivers for 8-Gbps ports
Hot-pluggable, industry-standard XPAK optics or copper stacking cables for 10/20-Gbps ports
Compatible with 4-Gbps and 2-Gbps SFPsEnvironmental RequirementsOperating Temperature: 41-104°F (5-40°C)
Storage Temperature: -4-158°F (-20-70°C)
Operating Humidity: 10-90% (non-condensing) Storage Humidity: 10-95%
Operating Altitude: Up to 10,000' (3000 m)
Storage Altitude: Up to 50,000' (15,000 m)Power RequirementsAC 100-240V 50/60HzDimensions (WxHxD)17 x 1.7 x 20" (432 x 43.2 x 500mm)Weight15 lbs (6.8kg)
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
