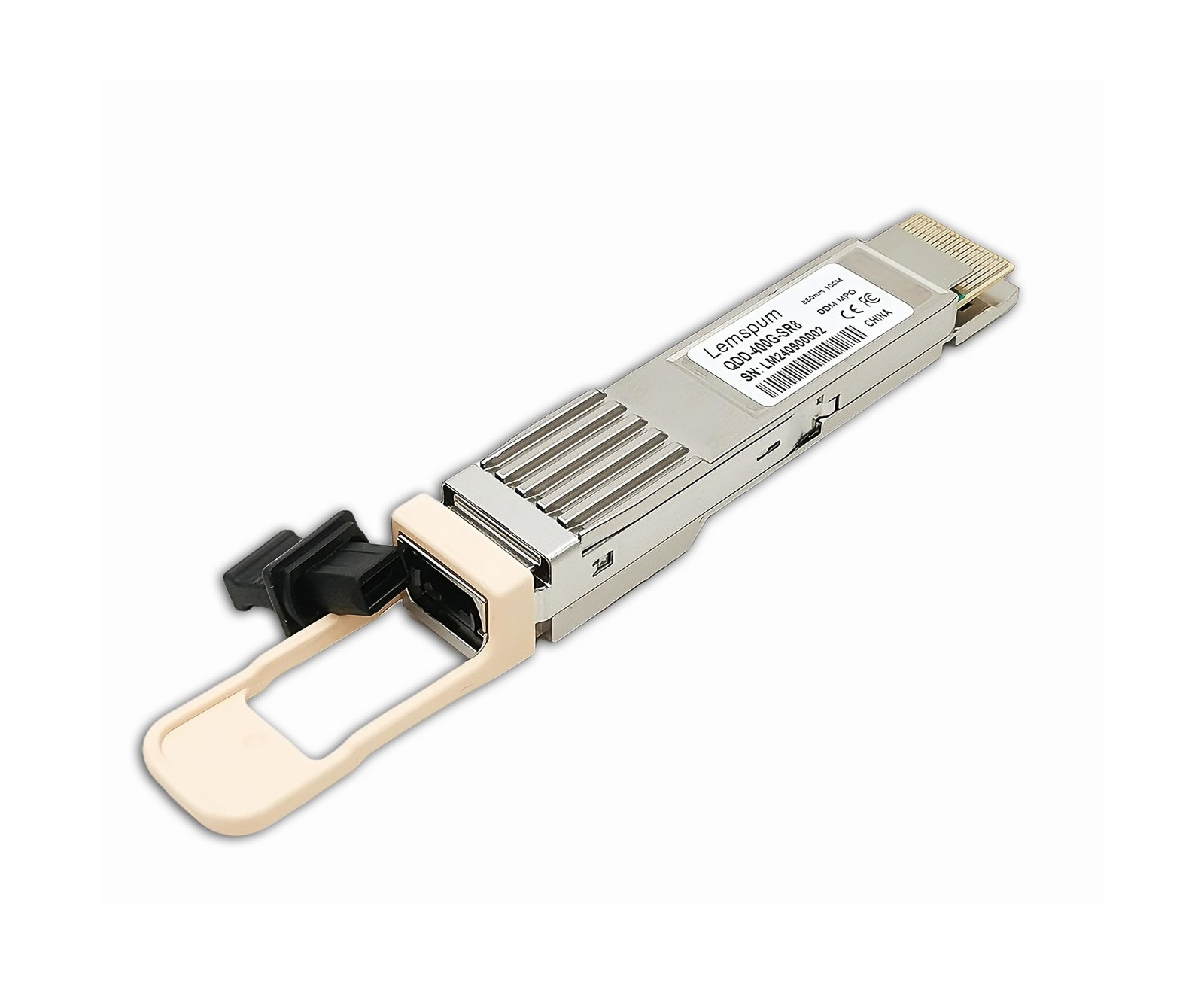

QDD-400G-SR8 400Gb Multimode QSFP-DD 400GBASE-SR8 PAM4 850nm 100m DOM MPO-16/...
Price: US $354.73
QDD-400G-SR8 400Gb Multimode QSFP-DD 400GBASE-SR8 PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module,Support 2 x 200G-SR4 and 8 x 50G-SR Product Details
Product Dimensions: 4.9 x 0.7 x 0.47 inches
Item Weight: 1.76 ounces
Manufacturer: Splensun
Item model number: 400GBASE-QDD
Date First Available: September 14, 2024
400G QDD SR8 is a QSFP-DD Optical transceiver for 8 x 26.56GBaud (53.12 Gbps with PAM4 modulation) optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber
Wavelength: 850nm. Flexible breakout options allow for 2 x 200G-SR4 and 8 x 50G-SR configurations, enhancing versatility in various network setups
Connector: MTP/MPO-16 (APC) .Max reach: 100m, over multimode OM4(MMF) fiber
Form factors: QSFP-DD. Monitors for VCSEL bias, transmitted, received power , module temperature, and module supply.
Modulation format: PAM4. 850nm VCSEL laser and PIN receiver. High speed I/O electrical interface (400GAUI-4).
400GbE Multimode QSFP-DD (Quad Small Form Factor Pluggable Double Density)Data rate(Gb/s): 425Gb/s (8 x 53.12Gbps); Modulation format: PAM4 Opticalconnectivity via industry standard MPO/MTP terminated fiber ribbon MPO-16 APCOptical Receptacle Type Optical return loss tolerance (max): 12dB Averagereceive power, each lane: -6.5~4dBm DDM Support: Yes Power Consumption:
