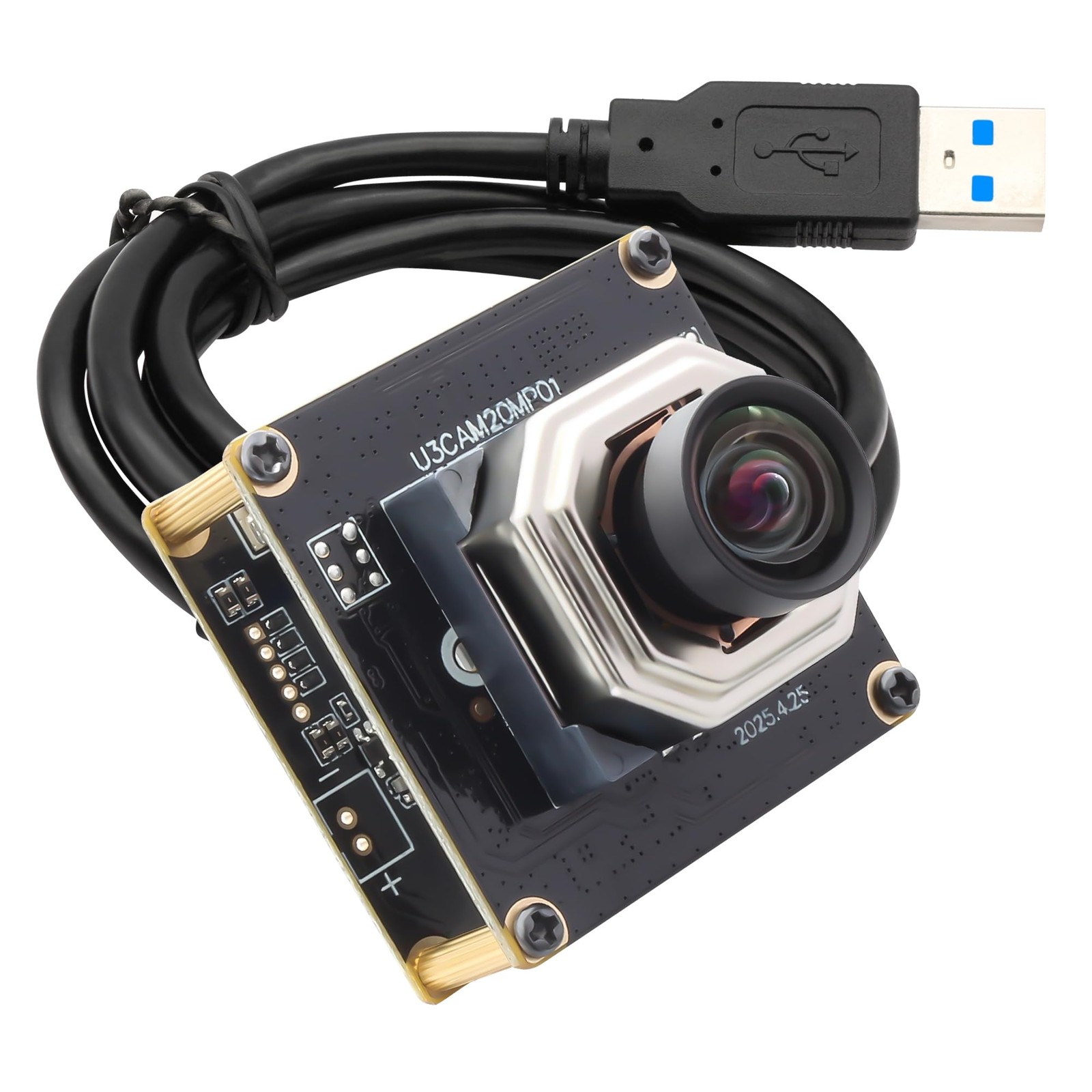

1. Ultra HD 20MP Resolution
Supports up to 5120(H)×3840(V) for both video recording and still images.
2. Lens Type
Autofocus Wide view angle Lens, the fast autofocus ensures your subject stays sharp and clear at all times. M12 No Distortion Lens, HFOV approx. 85 degree.
3. Frame Rate
MJPEG 27.5fps@5120x3840, 30fps@3840x2160, 30fps@1980x1080, ideal for capturing fast‑moving objects with smooth, lag‑free footage.
4. USB 3.0 High‑Speed Interface
Features USB 3.0 for fast data transfer, backward compatible with USB 2.0.
5. Image Sensor
Equipped with a 1/1.8” Onsemi AR2020 image sensor for superior picture performance; minimum illumination of 0.1 lux ensures clear imaging even in low‑light conditions.
6. Compact Design for Embedded Devices.
With a compact size of just 38×38 mm, this module is ideal for integration into a wide range of embedded devices.
7. UVC Compliant Plug & Play
Compatible with Windows, Linux, Mac OS, Android, Raspberry Pi, Ubuntu, OpenCV, VLC, and more. No additional drivers required; simply connect via USB and use.
8. Wide Range of Applications
Suitable for home surveillance, dash cams, baby monitors, 3D printer monitoring, video recording, barcode/QR code scanning, laser engraver/cutter (LightBurn) cameras, and other machine vision tasks that demand high resolution.
High Resolution: This camera adopts a 20MP Onsemi AR2020 sensor for sharp image and accurate color reproduction, Max. still resolution 5120H x 3840V.
Fast Autofocus Lens & Wide View: No more waiting or manual tuning—the fast autofocus ensures your subject stays sharp and clear at all times, whether it's moving or stationary. 85° HFOV No Distortion Lens, field of view covers more area, idea for surveillance, conference rooms, machine vision.
Frame Rates: MJPEG 27.5fps@5120x3840, 30fps@3840x2160, 30fps@1980x1080.
USB3.0 Plug & Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Full Parameter Control & Wide Applications: Supports manual adjustment of full parameters such as Exposure, Brightness, Contrast, Gamma, and White Balance (WB) for precise image quality tuning. It has a wide range of applications, including Barcode Scanning, Industrial Inspection, Security Monitoring, Video Conferencing, Medical Imaging, Embedded Vision, etc.
