Technical Specifications Manufacturer: QNAP Systems Brand Name: QNAP Model Number: RAIL-B02 Universal Product Code (UPC): 885022008698 Product Type: Ball Bearing Sliding Mounting Rail Kit Primary Target Form Factor: Form-fit for 2U Rackmount Enclosures (Also services select 1U and 3U variations) Packaging Status: Full Commercial Retail Box Packaged Country of Origin: Taiwan
Physical Dimensions & Weight Constants Rack Fitment & Structural Constraints A. Minimum Mounting Post Internal Width: $\ge$ 17.8 in. / 451 mm B. Front Cabinet Panel clearance Width: $\ge$ 19.1 in. / 485 mm C. Mounting Post Depth Adjustment Range: 18 in. to 32 in. / 443 mm to 815 mm D. Center-to-Center Post Distance (Square Holes): 18.3 in. / 465 mm Chassis Interface Acceptance: Standard 9.5 mm x 9.5 mm Square Holes OR 7.1 mm Round Holes
Package Contents Left and Right QNAP RAIL-B02 Sliding Rail Assemblies Complete Structural Mounting Hardware and Screws Kit Retail Quick Start Installation Manual

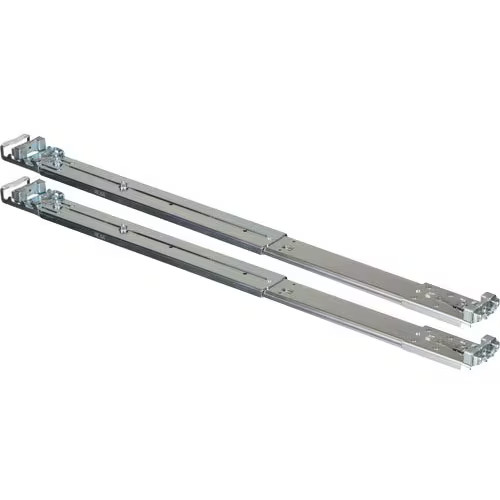

QNAP RAIL-B02 Ball Bearing Sliding Rail Kit for Rackmount NAS Simplify your server room maintenance and infrastructure scaling with the QNAP RAIL-B02 ball bearing sliding rail kit. Specifically designed for QNAP's 1U, 2U, and 3U rackmount NAS models, this commercial-grade mounting chassis lets server administrators completely slide the storage array out of the server rack for seamless, hot-swappable drive replacements or physical component upgrades. Built out of heavy-duty structural steel, it ensures flawless, friction-free movement while securely supporting high-density multi-bay network storage enclosures under maximum payload capacities. Key Features Frictionless Sliding Action: Outfitted with industrial ball bearing slides that deliver smooth linear movement, reducing physical strain when servicing heavily populated multi-bay enterprise NAS systems. Broad Rack Optimization: Natively mounts into standard 19-inch server racks with 9.5 mm x 9.5 mm square holes or 7.1 mm diameter round holes, adapting effortlessly to modern datacenter furniture configurations. Deep Telescoping Range: Features fully adjustable mounting post depth rails spanning from 18 inches up to 32 inches (443 mm to 815 mm), ensuring immediate compatibility with standard shallow edge-compute racks or deep datacenter server cabinets. Toolless Integration Footprint: Engineered for rapid configuration, allowing IT squads to snap the deployment rails securely into position without spending hours on precision panel assembly.
Technical Specifications Manufacturer: QNAP Systems Brand Name: QNAP Model Number: RAIL-B02 Universal Product Code (UPC): 885022008698 Product Type: Ball Bearing Sliding Mounting Rail Kit Primary Target Form Factor: Form-fit for 2U Rackmount Enclosures (Also services select 1U and 3U variations) Packaging Status: Full Commercial Retail Box Packaged Country of Origin: Taiwan
Physical Dimensions & Weight Constants Rack Fitment & Structural Constraints A. Minimum Mounting Post Internal Width: $\ge$ 17.8 in. / 451 mm B. Front Cabinet Panel clearance Width: $\ge$ 19.1 in. / 485 mm C. Mounting Post Depth Adjustment Range: 18 in. to 32 in. / 443 mm to 815 mm D. Center-to-Center Post Distance (Square Holes): 18.3 in. / 465 mm Chassis Interface Acceptance: Standard 9.5 mm x 9.5 mm Square Holes OR 7.1 mm Round Holes
Enterprise Hardware Compatibility Matrix The QNAP RAIL-B02 rail kit is fully validated to fit a vast portfolio of storage ecosystems, including but not limited to: TVS & TS Series High-Performance Storage: TVS-471U(-RP), TVS-871U-RP, TVS-872XU(-RP), TVS-972XU(-RP), TVS-1271U-RP, TVS-1272XU-RP, TS-869U-RP, TS-1269U-RP, TS-1270U-RP, TS-853U, TS-1253U(-RP), TS-870U-RP. Modern Generation Arrays & SMB Nodes: TS-1231XU(-RP), TS-1232PXU-RP, TS-1232XU(-RP), TS-1232BU(-RP), TS-1253DU-RP, TS-1263U(-RP), TS-1263XU(-RP), TS-1273AU-RP, TS-1273U(-RP), TS-1277XU-RP, TS-1283XU-RP, TS-1673AU-RP, TS-1886XU-RP, TS-431U, TS-431XU(-RP), TS-431XeU, TS-432PXU-RP, TS-432XU(-RP), TS-451DeU, TS-453BU(-RP), TS-453DU(-RP), TS-463U(-RP), TS-463XU(-RP), TS-831XU(-RP), TS-832PXU(-RP), TS-832XU(-RP), TS-853BU(-RP), TS-853DU-RP, TS-853U(-RP), TS-863U(-RP), TS-863XU(-RP), TS-873AU(-RP), TS-873U(-RP), TS-877XU(-RP), TS-883XU(-RP), TS-977XU(-RP), TS-983XU(-RP), TS-435XeU, TS-x64U, TS-x64eU, TS-855eU(-RP). ZFS Enterprise Cloud & Core Expansion Inclosures: TS-h1886XU-RP, TS-h977XU-RP, TS-h1277XU-RP, TS-h1277AXU-RP, TS-h1677AXU-RP, QGD-1600P, TR-004U, UX-1200U-RP, UX-800U-RP. TL-Series JBOD Storage Expansion Cabinets: TL-R1200C-RP, TL-R1200S-RP, TL-R1220Sep-RP, TL-R1620Sep-RP, TL-R400S, TL-R1620Sdc, TL-R1200PES-RP, TL-R1600PES-RP.
Primary Applications Scalable Storage Expansion Arrays: Secures large TL-series SAS or SATA JBOD storage enclosures to server frames, organizing the expansion infrastructure while conserving valuable U-space. Edge Cloud Deployments: Offers structured, standard 19" rack installation for small branch offices and local server closets using adjustable-depth cabinets.
