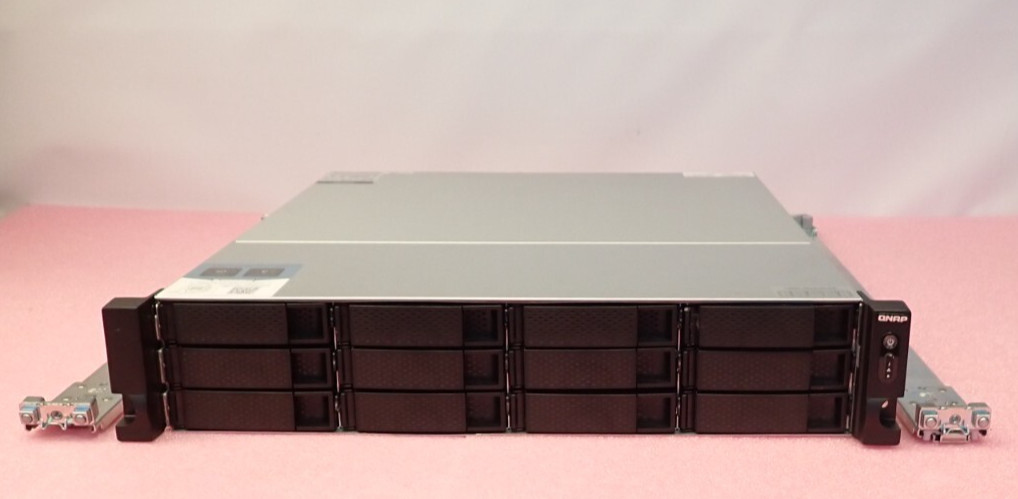

QNAP TS-1232PXU-RP 12x 3.5" SATA Bay 2U Rackmount Network Attached Storage NASModel No:TS-1232PXU-RP
In Good Condition, Full Working OrderTested2 Year WarrantyIncludes Rails12x 3.5" Caddies + Screws IncludedIncluded

• 1 xQNAP TS-1232PXU-RP 12x 3.5" SATA Bay 2U Rackmount Network Attached Storage NAS
• 12 x 3.5" SATA Hard Drive Bays & Caddies
• 2 x 250W Power Supplies
• 1 x Set Of Rails

Overview:
With 10GbE SFP+ and 2.5GbE network ports, the TS-1232PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-1232PXU-RP supports file backup and synchronization, secure snapshot protection, and Google™ Workspace and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-1232PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor

CPU Architecture: 64-bit ARM

Floating Point Unit: Yes

Encryption Engine: Yes

System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)

Maximum Memory: 16 GB (1 x 16 GB)

Memory Slot: 1 x UDIMM DDR4

Flash Memory: 512 MB (Dual boot OS protection)

Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s

• Drive Compatibility:
• 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable: Yes (Not supported M.2 SSD)

M.2 Slot: Optional via a PCIe adapter

SSD Cache Acceleration Support: Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port: 2 x 10GbE SFP+

Wake on LAN (WOL): Yes (Only the 2.5GbE port)

Jumbo Frame: Yes

PCIe Slot: 1xPCIe Gen 2 x2 (PCIe bandwidth limitations will restrict the NAS 10GbE performance.)

USB 3.2 Gen 1 port: 4

Form Factor: 2U Rackmount

LED Indicators: HDD 1-12, Status, LAN, Storage expansion

Buttons: Power, Reset

Dimensions (HxWxD): 88.6 × 432 × 511 mm (Excludes ear hook and the protruding part of the Power Supply Unit.)

Weight (Net): 12.94 kg

Weight (Gross): 14.94 kg

Operating Temperature: 0 - 40 °C (32°F - 104°F)

Storage Temperature: -20 - 70°C (-4°F - 158°F)

Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit: 250W (x2) PSU, 100 - 240V

Power Consumption: Operating Mode, Typical: 83.57 W (Tested with drives fully populated.)

Fan: 2 x 70mm, 12VDC

System Warning: Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 700

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£1200 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS318419
