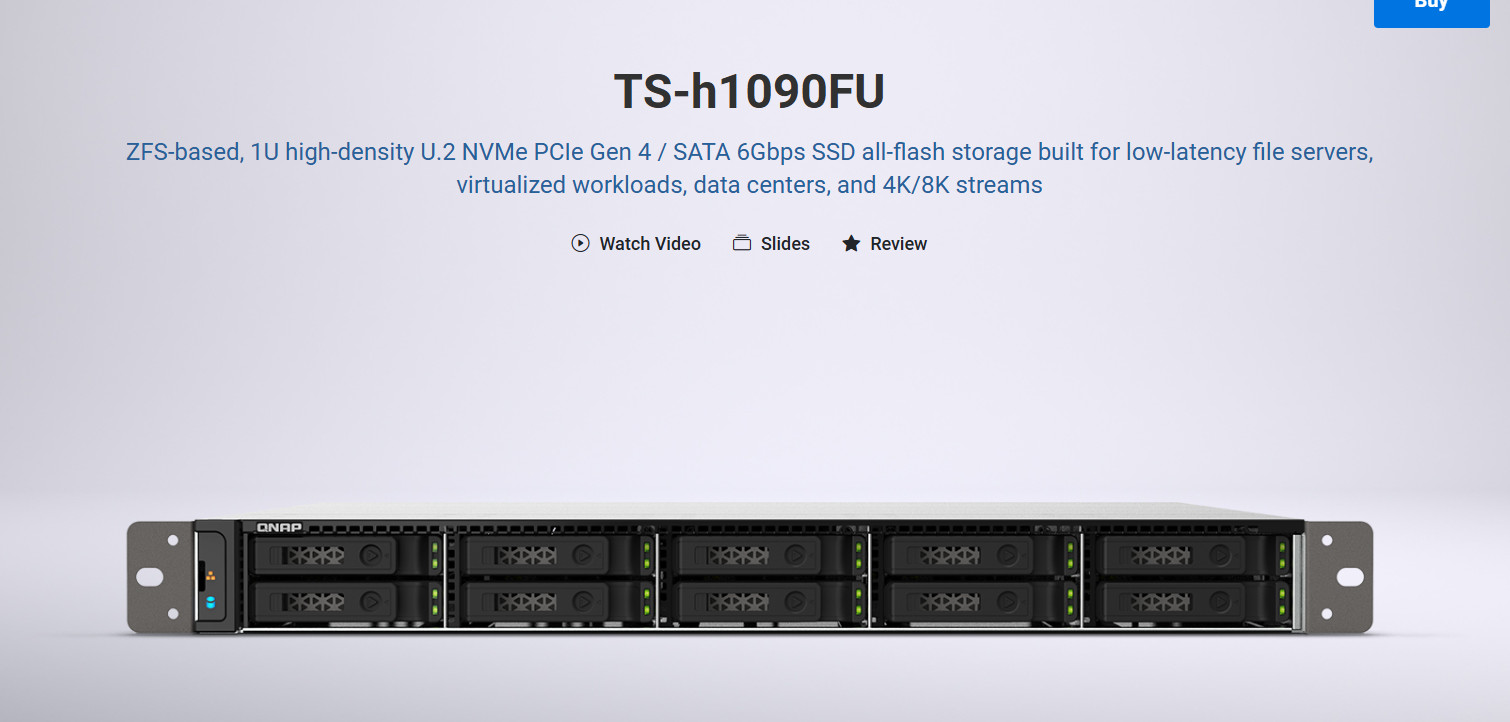

QNAP · All-Flash U.2 NVMe NAS TS-h1090FU-7302P-64G
Enterprise ZFS all-flash storage on AMD EPYC. Ten U.2 NVMe Gen4 bays, dual 25GbE SFP28, and 64GB ECC memory in a compact 1U rackmount chassis.
EPYC 7302P · 16C / 32T 10 × U.2 NVMe Gen4 2 × 25GbE SFP28 64GB ECC RDIMM Redundant PSU ProcessorEPYC 7302P16C / 32T · up to 3.3GHz Memory64 GB ECCDDR4 RDIMM · max 1TB Drive Bays10 × 2.5"U.2 NVMe / SATA Networking2 × 25GbESFP28 + 2 × 2.5GbE Form Factor1U RackDual 550W PSU
The TS-h1090FU is QNAP's all-flash enterprise NAS built on the QuTS hero (ZFS) operating system. With a 16-core AMD EPYC processor, ECC memory, and ten dedicated U.2 NVMe slots, it's designed for high-IOPS virtualization, database, and backup-target workloads that need low latency and data integrity.
Why this unit All-flash U.2 NVMe
Ten hot-swappable 2.5" bays accept U.2 NVMe Gen4 x4 or SATA SSDs, with SSD cache acceleration support.
25GbE built in
Two 25GbE SFP28 SmartNIC ports plus dual 2.5GbE — SR-IOV and jumbo frames supported out of the box.
Server-grade platform
AMD EPYC 7302P with AES-NI encryption engine and 64GB DDR4 ECC RDIMM, expandable to 1TB across 12 slots.
Redundant power
Dual hot-swappable 550W PSUs and 5 × 60mm fans keep the 1U chassis running through a supply failure.
Full specifications Processor & Memory CPUAMD EPYC 7302P, 16-core / 32-thread, up to 3.3 GHz Architecture64-bit x86 Encryption engineAES-NI System memory64 GB RDIMM DDR4 ECC Maximum memory1 TB+ (12 × 128 GB) Memory slots12 × RDIMM DDR4 Flash memory5 GB (dual boot OS protection) Storage Drive bays10 × 2.5" U.2 PCIe NVMe / SATA 6 Gbps Drive compatibility2.5" U.2 NVMe Gen4 x4 SSD · 2.5" SATA SSD Hot-swappableYes SSD cache accelerationSupported SSD includedNo — system ships without SSD Networking 25GbE ports2 × 25GbE SFP28 SmartNIC 2.5GbE ports2 × (2.5G / 1G / 100M / 10M) SR-IOVSupported Wake on LANYes (2.5GbE port only) Jumbo frameSupported Expansion & Ports PCIe slotsSlot 1: PCIe Gen4 x16 · Slot 2: PCIe Gen4 x16 (low-profile cards only) Slot 1 card size198 × 68.9 × 18.76 mm (7.8 × 2.71 × 0.74 in) Slot 2 card size250 × 68.9 × 18.76 mm (9.84 × 2.71 × 0.74 in) USB3 × USB 3.2 Gen 1 LED indicatorsDisk, Status, LAN, storage expansion port status ButtonsPower, Reset Chassis & Power Form factor1U rackmount Dimensions (H×W×D)1.73 × 16.93 × 22.91 in Weight (net / gross)25.57 lbs / 29.54 lbs Power supply550W PSU × 2 (redundant), AC 100–240 V Power consumption157.97 W typical (drives fully populated) Cooling5 × 60mm, 12 VDC fans System warningBuzzer Environment Operating temp0 – 40 °C (32 – 104 °F) Storage temp−20 – 70 °C (−4 – 158 °F) Relative humidity5–95% RH non-condensing, wet bulb 27 °C Max concurrent connections10,000 (CIFS, with max memory) Memory note: QNAP recommends using QNAP memory modules of identical specification to maintain performance and stability. Using unsupported modules may degrade performance, cause errors, or prevent the OS from starting. Please refer to the hardware user manual before installing memory. What's included & shipping
- QNAP TS-h1090FU-7302P-64G NAS unit (64GB ECC memory installed)
- Ships without SSD — see QNAP's compatibility list before purchasing drives
- Unit is tested and functional before dispatch; firmware updated to the latest stable release prior to shipping
- Carefully packed for safe rackmount transport
- Fast, tracked shipping — please review handling and delivery times above
Questions? Message us before buying if you need the SSD compatibility list, a specific configuration, or a shipping quote to your location. We're happy to help. Product images are for illustrative purposes and may differ from the actual product. Specifications are subject to change without notice by the manufacturer. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. QNAP is a trademark of QNAP Systems, Inc. All trademarks are the property of their respective owners.
