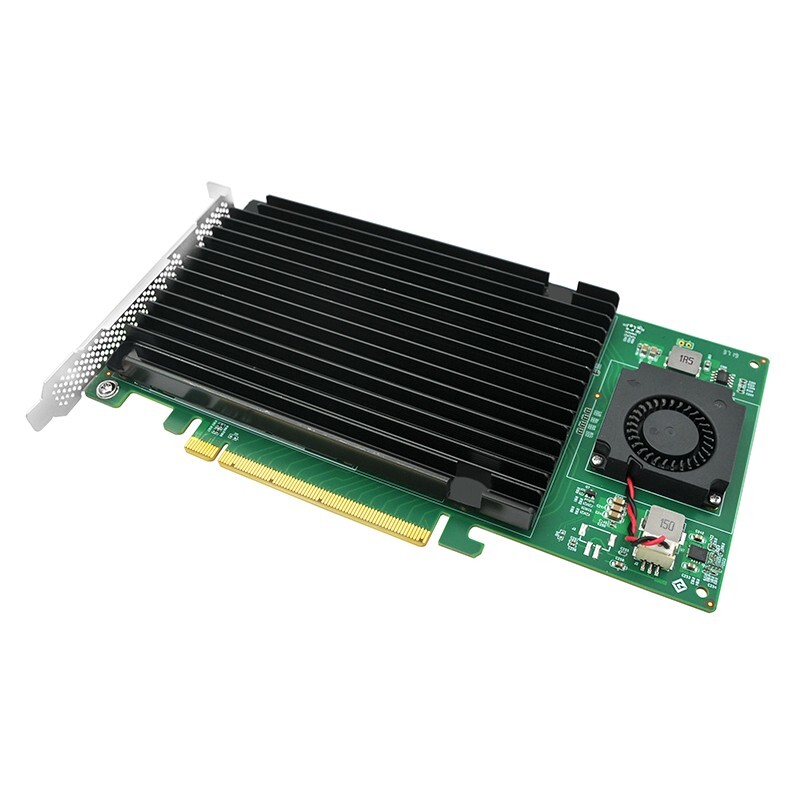

Quad PCIe 3.0 x16 M.2 NVMe Switch Controller

Price: CN $198.00

Product Name:PCIe 3.0 x16 Quad M.2 NVMe Switch Card
Chipset: PLX 8747
Interface Type:4*M.2 Connectors
Support Equipment: 4*NVMe SSD for 2242,2260,2280 and 22110mm
Host Bus Type: PCIe 3.0 x16

9547-4I is a PCI Express x16 Gen3 PCIe switch Card provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M.2 SSD, and unlocks the true performance potential of NVMe based storage configurations. Ideal for servers & high-end desktop/workstation platforms,The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.

PLX PEX8747 SwitchController has a PCIe 3.0 x16 upstream port as well as four PCIe 3.0 x4 downstream ports.

Dedicated PCIe 3.0 x16 bus bandwidth fully maximizes NVMe SSDs performance, And dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD

This card does not rely on PCIe bifurcation supported by CPU or PCH

Independent, Stand Alone NVMe SSD Solution

Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later

Applications
Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9547 can be configured for a variety of graphics applications.

Advantages
Suitable for small sized M.2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.2 SSD installed.

4 Internal

PEX8747

PCI Express 3.0 x16Compatible Device Type

Interface

4*M.2

4* M.2 Connectors

PCIe x16

Operating SystemOS supported list

Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux,

15% – 90%

5°C (41°F)
