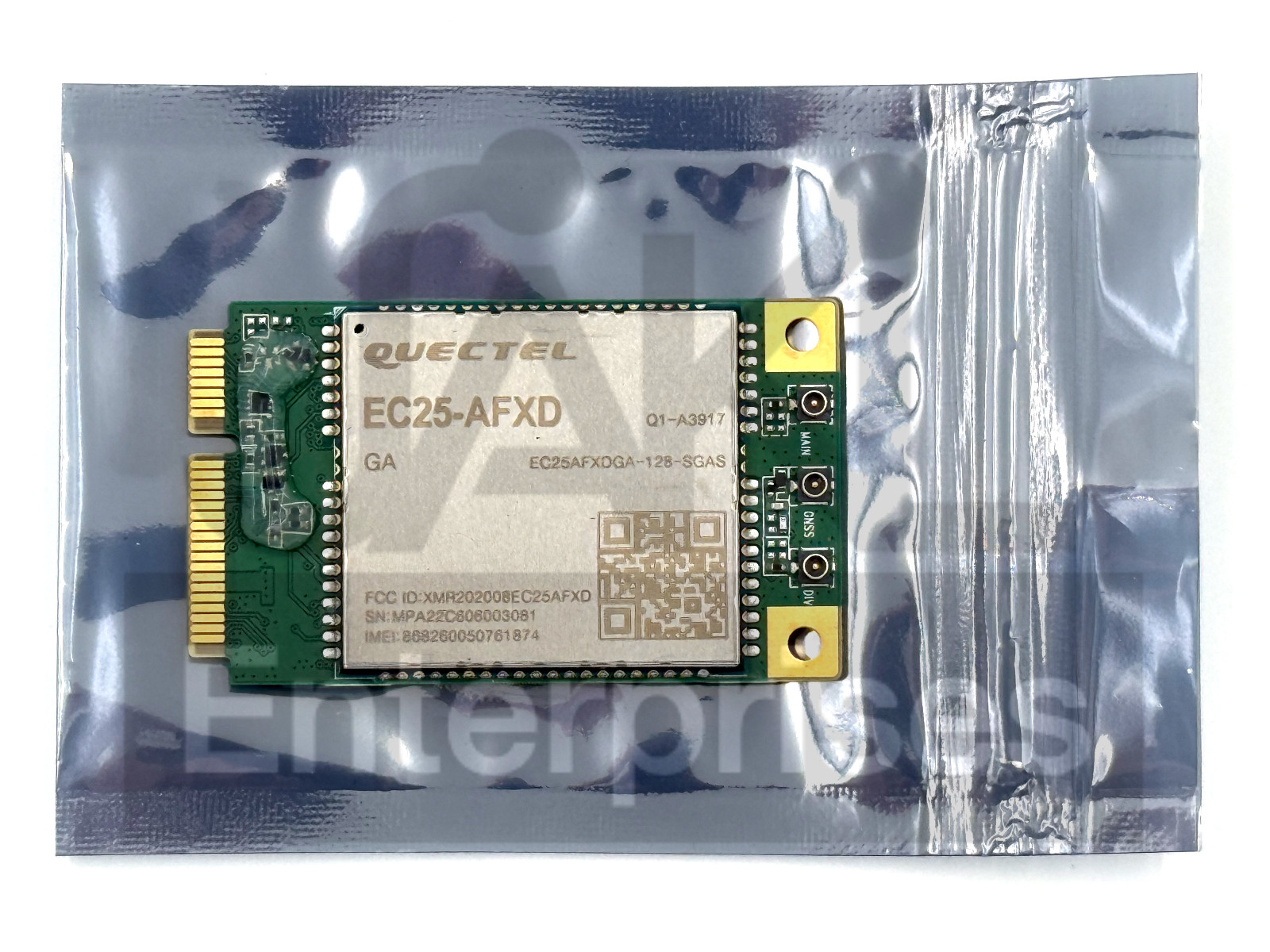

The Quectel EC25 Mini PCIe is a series of LTE Cat 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It isoptimized for M2M and IoT applications, and delivers 150 Mbps downlink and 50 Mbps uplink data rates.
TheMini-PCIeEC25-series contains 14 variants. This is the EC25-AFXD variant which is a Data-Only module, no voice or text capability. The module also supports GPS/GLONASS/BDS/Galileo/QZSS
This is a North American 4G LTE module, and is a qualified modem for AT&T, Verizon, T-Mobile and others. It is NOT a global modem. Bands WCDMA:B2/B4/B5
These units are new, unused modules repackaged from factory bulk packaging for individual shipping. This is excess inventory from a cancelled internal platform.
- Ships from USA (Texas)
- We are NOT an authorized distributor.Manufacturer's Warranty does NOT apply.
- We will replace any defective units.
- There is a restocking fee of 20% on no-defect returns.
Specifications:
EC25-AFXD
Mini PCIe (Data-only)
Frequency Bands
LTE
Category 4
LTE-FDD
B2/4/5/12/13/14/66/71
Region/Operator
North America
LTE-TDD
-
Dimensions (mm)
30.0 × 51.0 × 4.9
WCDMA
B2/4/5
GSM/EDGE
-
GNSS (Optional)
Voice
Certifications
Speech Codec Modes
-
Carrier
America: Verizon/AT&T/T-Mobile/U.S. Cellular
Canada: Rogers*/Telus
Echo Arithmetic
-
Regulatory
Global: GCF
North America: PTCRB
America: FCC
Canada: IC
VoLTE (Optional)
-
Others
RoHS/WHQL
Enhanced Features
Max. Data Transmission Rates
DTMF
-
LTE-FDD (Mbps)
150 (DL)/50 (UL)
DFOTA
●
LTE-TDD (Mbps)
-
QMI/ RmNet
●
DC-HSPA+ (Mbps)
42 (DL)/5.76 (UL)
Audio Playback*/
Audio Recording*
Optional
WCDMA (kbps)
384 (DL)/384 (UL)
QuecFile®
●
EDGE (kbps)
-
(U)SIM Card Detection
●
GPRS (kbps)
-
SMS
●
Interfaces
Drivers
(U)SIM
× 1
USB Serial Driver
Windows 7/8/8.1/10/11,
Linux 2.6–6.5,
Android 4.x–13.x
USB 2.0
× 1
GNSS Driver
Android 4.x–13.x
Digital Audio (PCM)
× 1
RIL Driver
Android 4.x–13.x
I2C
× 1
USB NDIS Driver
Windows 7/8/8.1/10/11
LED_WWAN#
× 1
USB MBIM Driver
Windows 7 /8/8.1/10/11,
Linux 3.18–6.5
W_DISABLE#
× 1
USB GobiNet Driver
Linux 2.6–6.5
UART
× 1
USB QMI_WWAN Driver
Linux 3.4–6.5
PERST#
× 1
Electrical Features
Temperature Range
Supply Voltage Range
3.0–3.6V, 3.3V Typ.
Operating Temperature
-35 °C to +75 °C
Power Consumption (Typ.)
1.67mA @ Sleep
22mA @ Idle
Extended Temperature
-40 °C to +80 °C
