DESCRIPTION
Quectel EM060K-GL Module, LTE-A Cat 6 Module With M.2 Form Factor, Global Multi-Band GNSS Positioning Quectel EM060K-GL Module

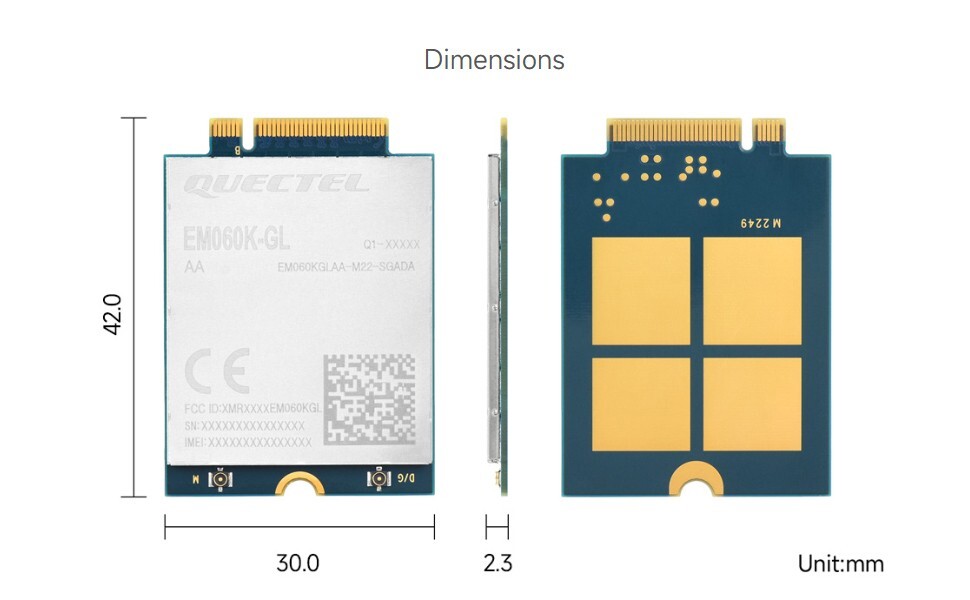

Specifications LTE CAT 6 EM06-E EM060K-GL Region / Provider EMEA/APAC①/Brazil Global Operating temperature -30 °C ~ +70 °C Extension temperature -40 °C ~ +85 °C Dimensions 42.0 × 30.0 × 2.3 (mm) Power supply 3.135~4.4 V, typical 3.7 V Power consumption 50 μA @ shutdown
4.1 mA @ hibernate, typical
22.1mA @ idle 62 μA @ shutdown
2.71 mA @ hibernate, typical
16.57mA @ idle FREQUENCY BAND LTE-FDD B1, B3, B5, B7, B8, B20, B28, B32② B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29③, B30, B32③, B66, B71 LTE-TDD B38, B40, B41 B34, B38, B39, B40, B41, B42, B43, B46③ (LAA), B48 (CBRS) 2xCA B1+B1, B5, B8, B20, B28;
B3+B3, B5, B7, B8, B20, B28;
B7+B5, B7, B8, B20, B28;
② For EM06-E, B32 is only used for receiving in LTE-FDD, and is only for secondary component carrier in 2×CA.
③ For EM060K-GL, LTE-FDD B29/B32 and LTE-TDD B46 are used for receiving only, and are only for secondary component carrier.
Application Scenarios

Weight:0.006 kg

This is an M.2 module without antenna or base board, it is recommended to used with the4G antenna,LTE-A HATand4G/5G DONGLE HAT.

EM060K-GL x1
