RAM Tough-Tray Double Ball Mount with Double ...

RAM-101-DAN1U

Genuine RAM Products!

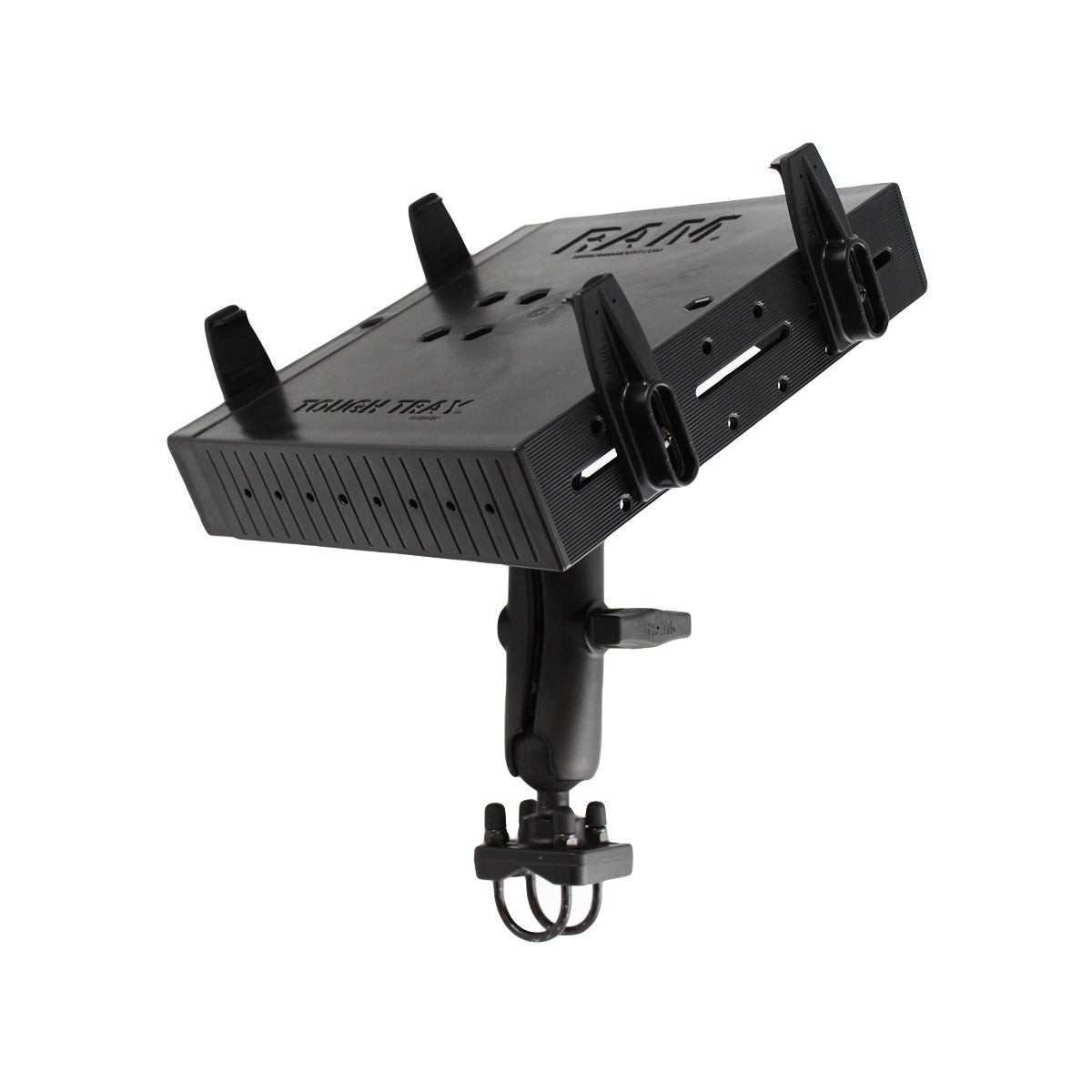

The RAM-101-DAN1U consists of the RAM Tough-Tray with flat retaining arms, STANDARD length 6 INCHES double socket arm and 1.5 INCHES diameter ball double u-bolt base. The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, phones or other electronics.hardware included Assembly Hardware(2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Capstray dimensions Width Range: 10 INCHES - 16 INCHES Side Arm Clamp Height: .5 INCHES - 1.75 INCHES Tray Depth: 10 INCHES Tray Thickness: 2.125 INCHES clamp range 1 INCHES - 1.25 INCHES diametersocket to socket length 4.66 INCHES ball size C Size (1.5 INCHES )weight capacity Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 4.15 lbhardware included
Assembly Hardware(2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Capstray dimensions
Width Range: 10 INCHES - 16 INCHES Side Arm Clamp Height: .5 INCHES - 1.75 INCHES Tray Depth: 10 INCHES Tray Thickness: 2.125 INCHES clamp range
1 INCHES - 1.25 INCHES diametersocket to socket length
4.66 INCHES ball size
C Size (1.5 INCHES )weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
4.15 lb
