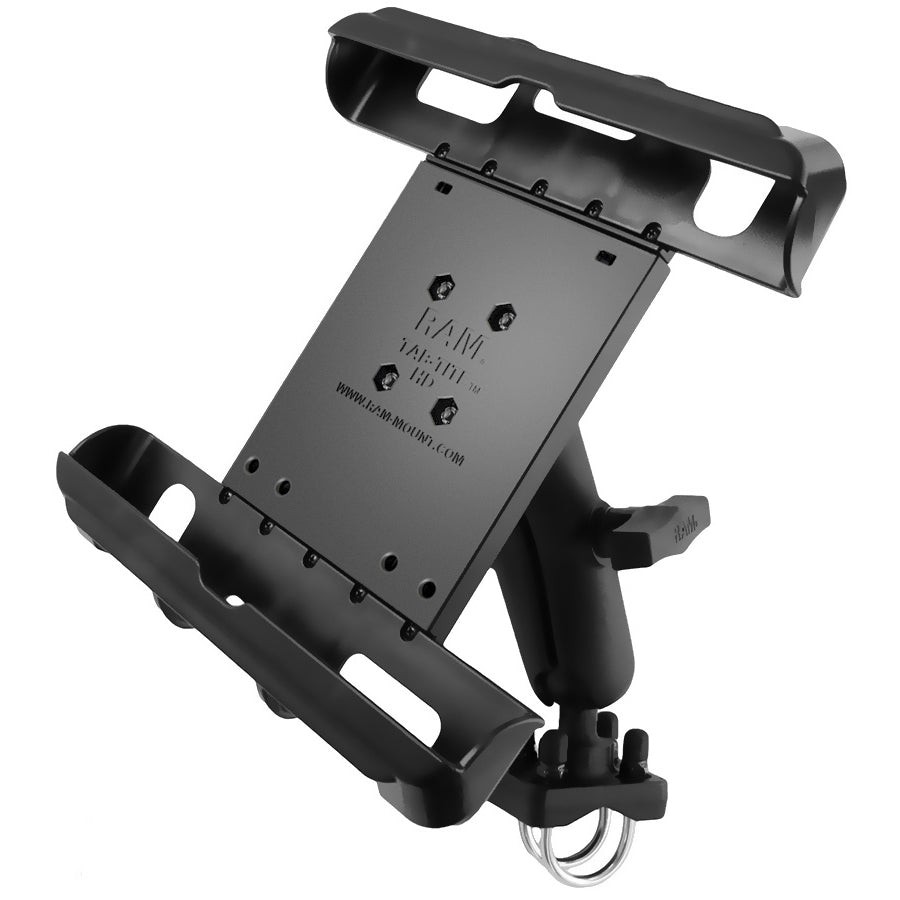

RAM Tab-Tite Large Tablet Holder with Double RAM Products!

The RAM-138-235-TAB17U consists of a double u-bolt base with 1.5 INCHES dia. ball, double socket arm and Tab-Tite universal clamping cradle. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.hardware included Assembly Hardware(2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Capsholder dimensions Height Range: 9.5 INCHES - 11.75 INCHES Width Range: 6.375 INCHES - 8.25 INCHES Depth Range: .13 INCHES - 1.1 INCHES clamp range 1 INCHES - 1.25 INCHES diametersocket to socket length 4.66 INCHES ball size C Size (1.5 INCHES )weight capacity Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 1.58 lbhardware included
Assembly Hardware(2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Capsholder dimensions
Height Range: 9.5 INCHES - 11.75 INCHES Width Range: 6.375 INCHES - 8.25 INCHES Depth Range: .13 INCHES - 1.1 INCHES clamp range
1 INCHES - 1.25 INCHES diametersocket to socket length
4.66 INCHES ball size
C Size (1.5 INCHES )weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
1.58 lb
