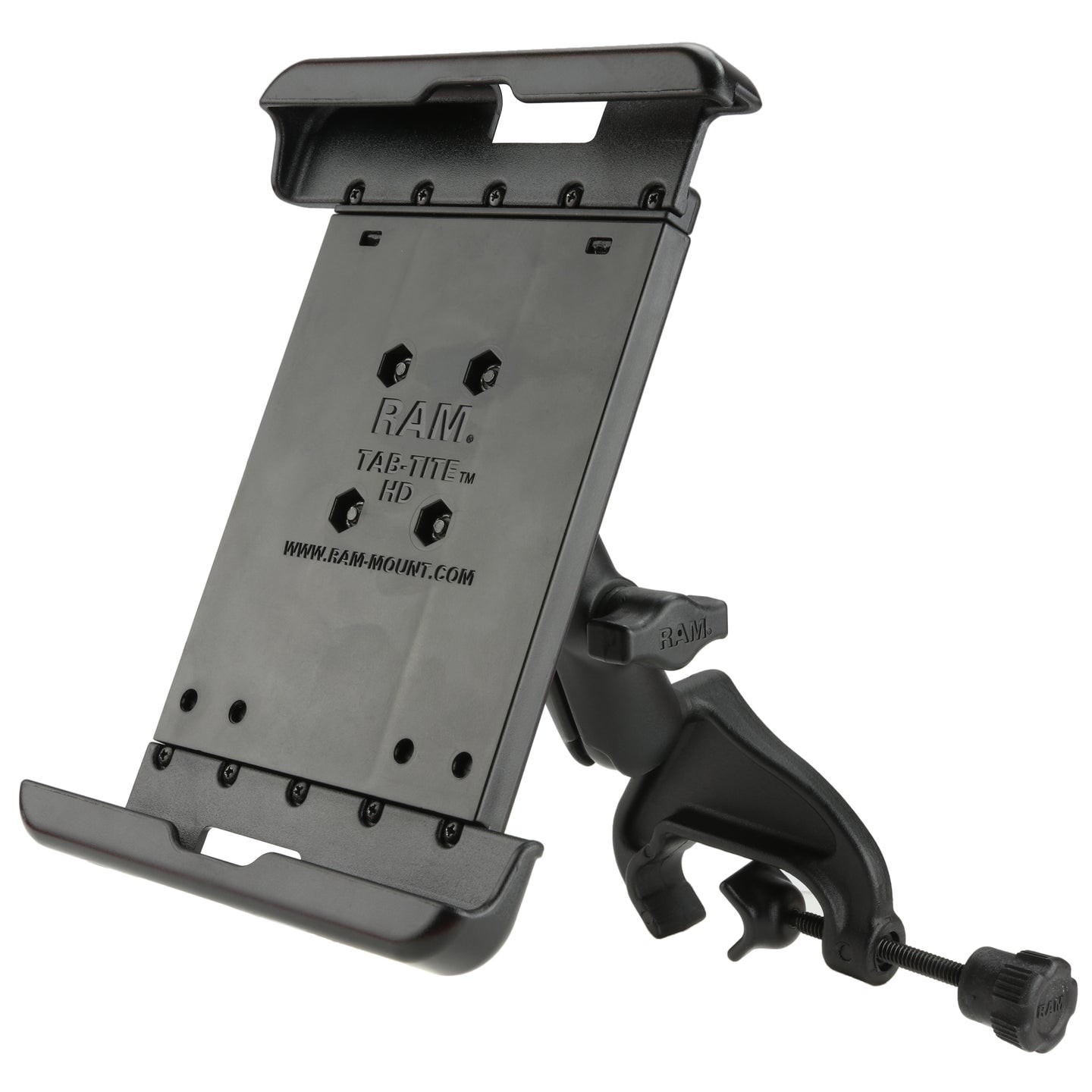

RAM Tab-Tite Yoke Clamp Mount for 8" Tablets RAM Products!

This ideal airplane yoke mount includes a spring-loaded holder that secures most 8 INCHES tablets with a case, and consists of a yoke clamp base, B size medium length double socket arm and round 2.5 INCHES base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625 INCHES to a maximum of 1.25 INCHES . The 1 INCHES rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.hardware included Assembly Hardwareholder dimensions Height Range: 8.25 INCHES - 11 INCHES Width Range: 5 INCHES - 5.88 INCHES Depth Range: .3 INCHES - .67 INCHES clamp range .625 INCHES - 1.25 INCHES socket to socket length 3 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 2.78 lbhardware included
Assembly Hardwareholder dimensions
Height Range: 8.25 INCHES - 11 INCHES Width Range: 5 INCHES - 5.88 INCHES Depth Range: .3 INCHES - .67 INCHES clamp range
.625 INCHES - 1.25 INCHES socket to socket length
3 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
2.78 lb
