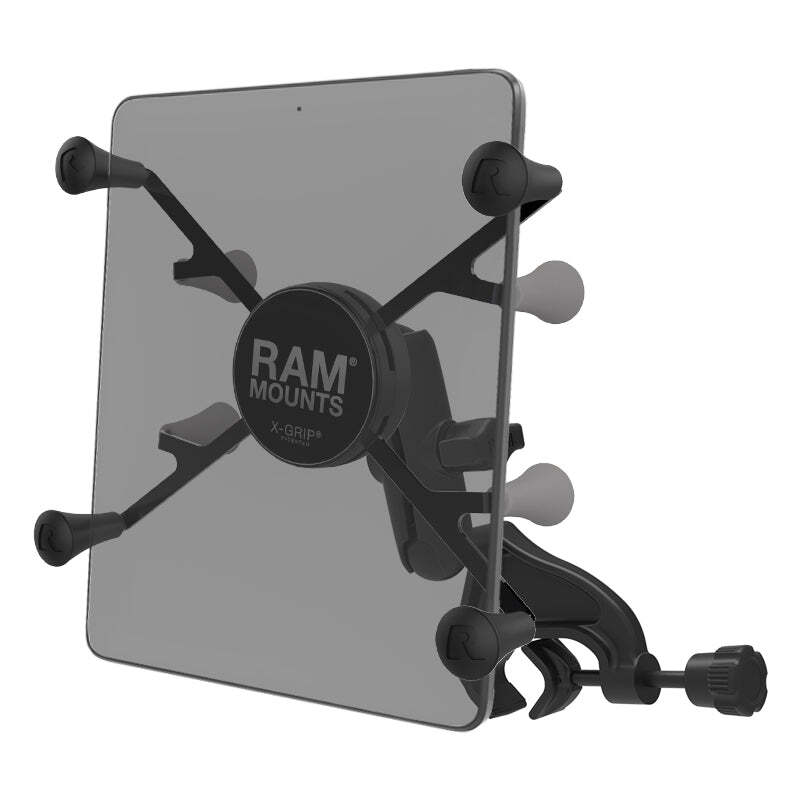

RAM X-Grip Mount with Yoke Clamp Base for RAM Products!

The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip cradle for 7 INCHES -8 INCHES tablets. The yoke clamp base will fit rails from 0.625 INCHES to a maximum of 1.25 INCHES . The 1 INCHES rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1 INCHES diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7 INCHES tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.hardware included (1) Optional Tether(1) Glue Tube for Rubber Capsholder dimensions Width Range: 2.5 INCHES - 5.75 INCHES Depth Range: .875 INCHES maxclamp range .625 INCHES - 1.25 INCHES socket to socket length 3 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 0.91 lbhardware included
(1) Optional Tether(1) Glue Tube for Rubber Capsholder dimensions
Width Range: 2.5 INCHES - 5.75 INCHES Depth Range: .875 INCHES maxclamp range
.625 INCHES - 1.25 INCHES socket to socket length
3 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
0.91 lb
