RAM X-Grip Mount with Yoke Clamp Base for RAM Products!

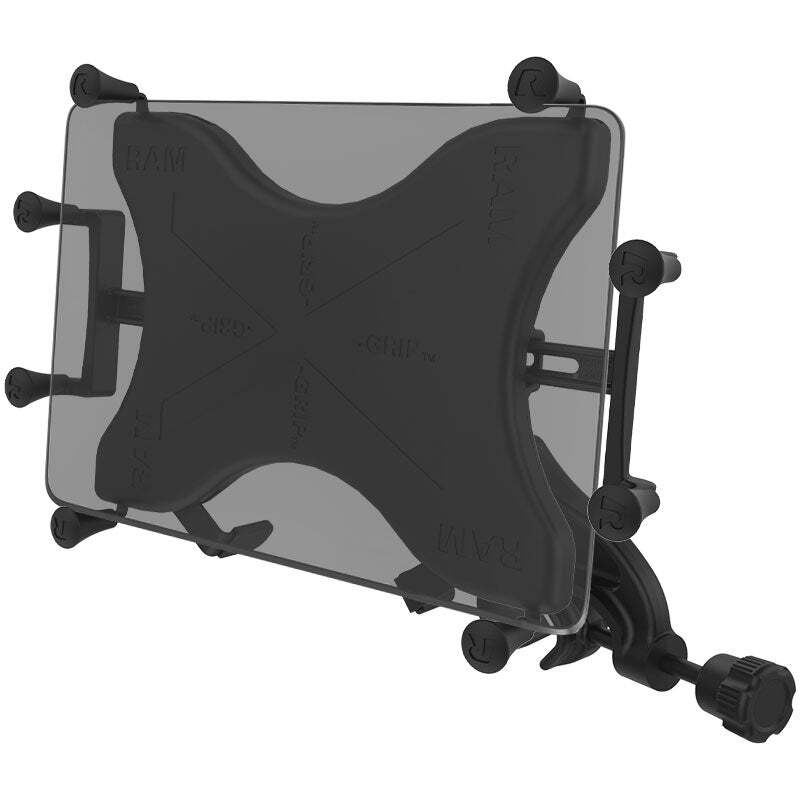

The RAM-B-121-UN9U consists of a yoke clamp base, double socket arm, round adapter base and universal X-Grip III clamping cradle for 10 INCHES tablets. The RAM yoke clamp mount will fit rails from 0.625 INCHES to a maximum of 1.25 INCHES . The 1 INCHES rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip III clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip III clamping cradle expands and contracts for perfect fit of most 10 INCHES tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip III.hardware included Assembly Hardwareholder dimensions Max Height: 10.25 INCHES (using optional supports)Width Range: 6.25 INCHES - 8.1 INCHES Max Depth: .875 INCHES clamp range .625 INCHES - 1.25 INCHES socket to socket length 3 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 1.8 lbhardware included
Assembly Hardwareholder dimensions
Max Height: 10.25 INCHES (using optional supports)Width Range: 6.25 INCHES - 8.1 INCHES Max Depth: .875 INCHES clamp range
.625 INCHES - 1.25 INCHES socket to socket length
3 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
1.8 lb
