RAM Large Marine Electronics Mount - D Size S...

RAM-D-111U-C

Genuine RAM Products!

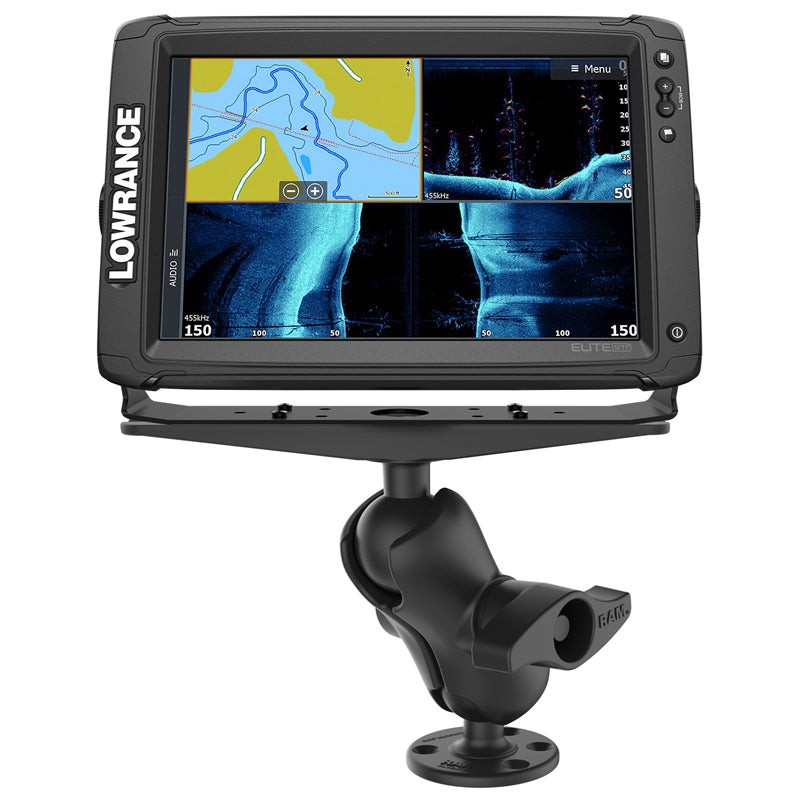

The RAM-D-111U-C consists of a short double socket arm, 3.68 INCHES diameter round base, and 11 INCHES x 3 INCHES rectangle base. The round base includes a 2.25 INCHES D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25 INCHES D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.hardware included (4) .312 INCHES x .187 INCHES Shoulder Washersproduct dimensions Overall Length: 8.125 INCHES socket to socket length 3.6 INCHES hole pattern See Drawingsplate size Top Plate: 3 INCHES x 11 INCHES Bottom Plate: 3.68 INCHES Diameterball size D Size (2.25 INCHES )weight capacity Standard Use: 6 lbsHeavy-Duty Use: 5 lbsmaterials Marine-grade aluminumpackaging type Poly BagWeight 3.58 lb Additional Information The 11 INCHES x 3 INCHES rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.hardware included
(4) .312 INCHES x .187 INCHES Shoulder Washersproduct dimensions
Overall Length: 8.125 INCHES socket to socket length
3.6 INCHES hole pattern
See Drawingsplate size
Top Plate: 3 INCHES x 11 INCHES Bottom Plate: 3.68 INCHES Diameterball size
D Size (2.25 INCHES )weight capacity
Standard Use: 6 lbsHeavy-Duty Use: 5 lbsmaterials
Marine-grade aluminumpackaging type
Poly BagWeight
3.58 lb
