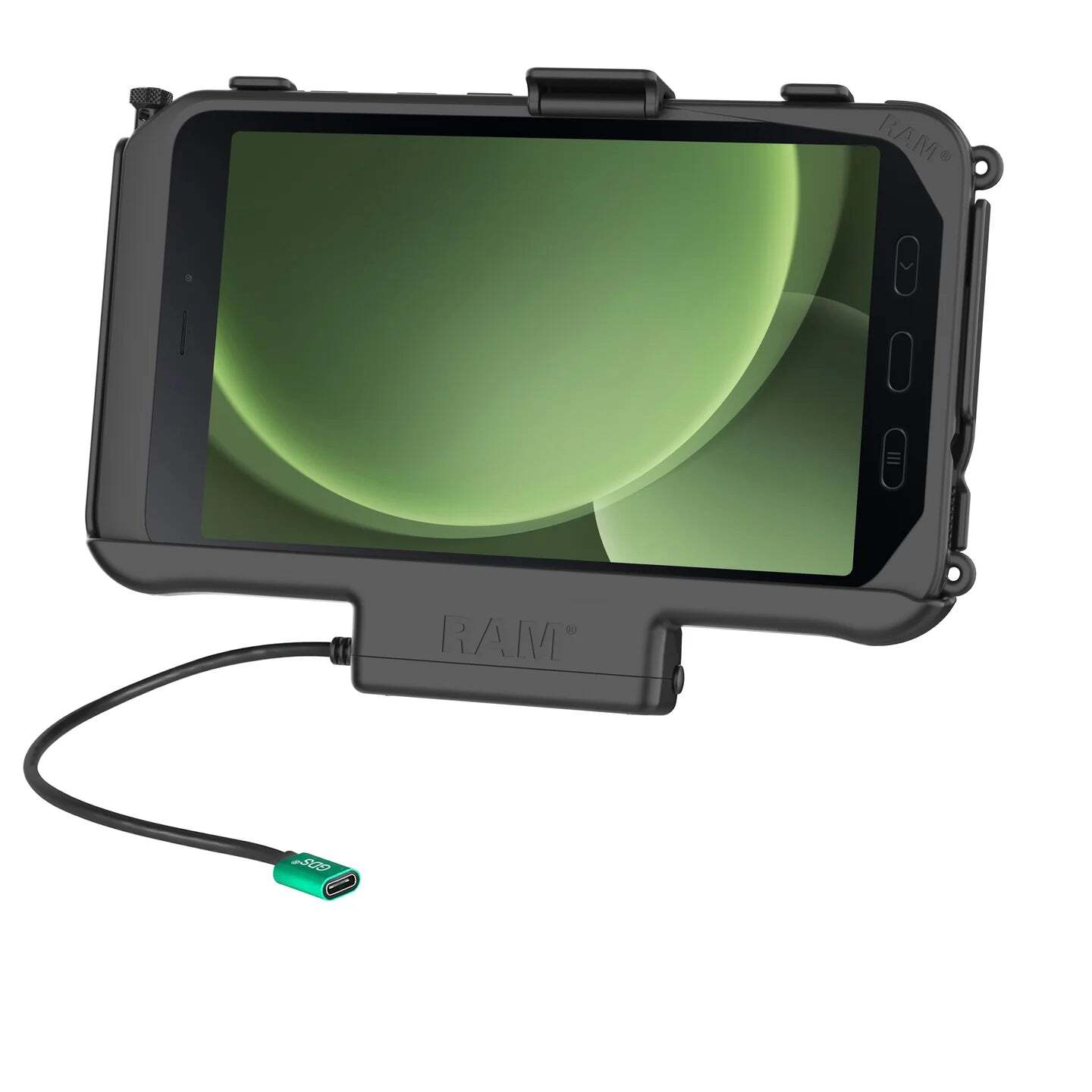

RAM-HOL-SAM60CPU RAM USB-C Powered Dock for Samsung Tab Active5 - 3 - 2
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
BALL FOR BACK OF CRADLE IS SOLD SEPARATELY.
SPECIAL NOTES:
- RAM SKIN FOR SAMSUNG TAB ACTIVE 5 IS NEEDED FOR CHARGING
-The RAM-HOL-SAM60CPU requires you use either a Samsung OEM skin or the compatible RAM® Skin™for your tablet. It will not fit properly without a skin.
COMPATIBLE DEVICES:
SAMSUNG
Tab Active5
Tab Active3
Tab Active2
Features
- RAM®EZ-Roll'r™form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM®Skin™; built-in cavity in the back allows for to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS®shoulder strap loops on RAM®Skin™
- Backed by a 3-year warranty
The RAM®USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS®pogo pins. This modular dock is compatible with the RAM®Skin™, factory device skin, and GDS®Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM®components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
product dimensions
Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.71 lb
Additional InformationThis product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options.Questions & Answers:
Does this require a skin or can it be used with just the tablet and no skin/case?
The RAM-HOL-SAM60CPU requires you use either a Samsung OEM skin or the compatible RAM® Skin™for your tablet. It will not fit properly without a skin.
Does this in fact come with the ball shown in the picture? I only ask because it is greyed out, like the tablet.
The RAM-202U (round base) is in fact not included with the RAM-HOL-SAM60CPU and would need to be purchased separately.
What case do I need that will work for the charger?
The case you'll need is our RAM Skin™ for Samsung Tab Active5.
