Manufacturer Description

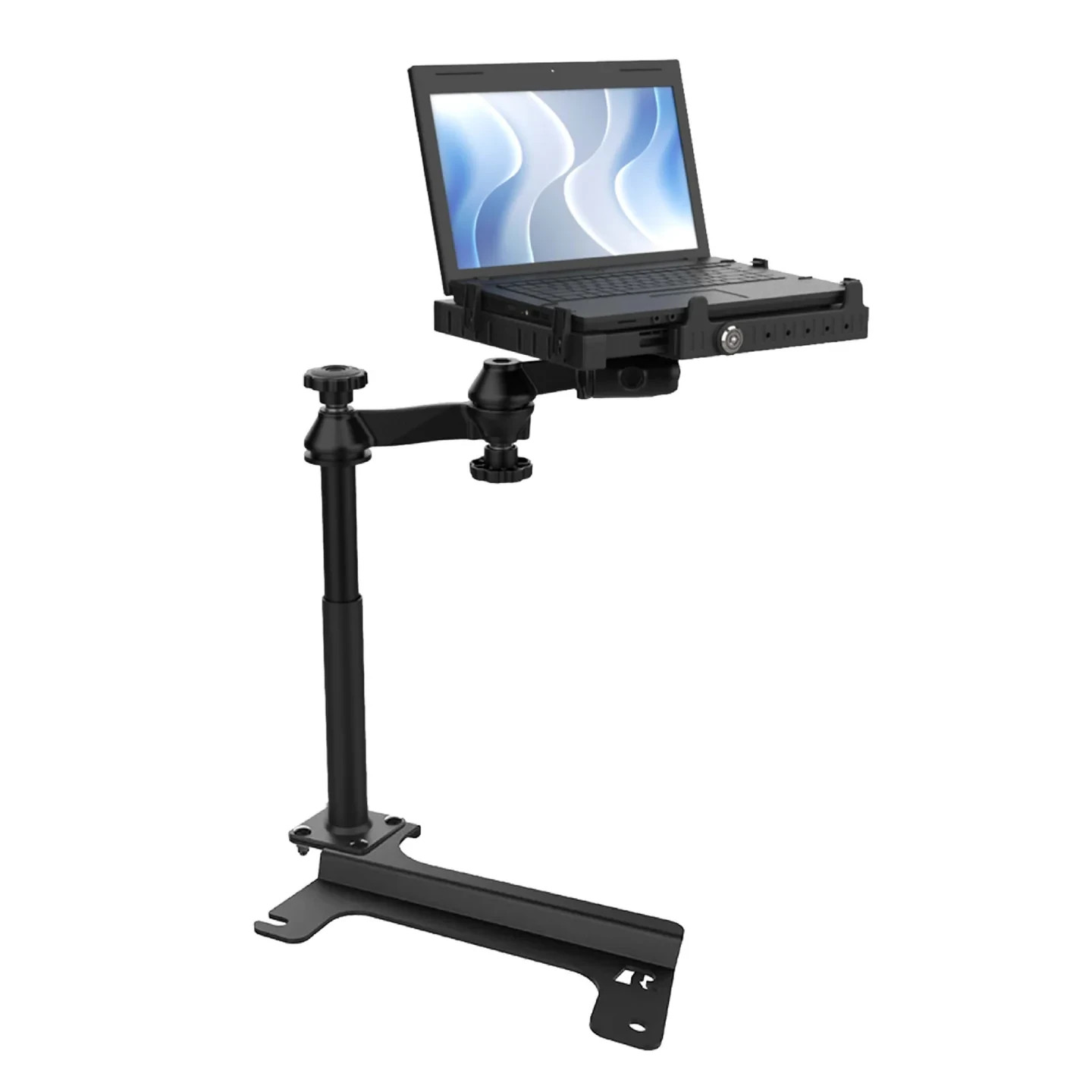

The RAM® No-Drill™ Laptop Mount for Ford Explorer, Ranger, Bronco + More (RAM-VB-202-A-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms with grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.

• Custom laptop vehicle mount installs using passenger seat bolts; no drilling required
• Dual articulating swing arm provides a high-level of adjustability
• Universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

What's Included In The Box?The RAM Mount No-Drill Laptop Mount for Ford Explorer Ranger Bronco and More ships with the following items included:

• RAM Mount No-Drill Vehicle Base for 2020 Ford Explorer
• RAM Mount Tele-Pole 12 inch Long Female Base RAM-VP-TBF12U
• RAM Mount Round Plate with 1.5 inch Ball RAM-202U
• RAM Mount Double Swing Arm with Socket RAM-VB-110-4U
• RAM Mount Tele-Pole 8 inch Long Male Tube
• RAM Mount Tough-Tray III Spring Loaded Laptop Tray

Features

• HARDWARE INCLUDED:
• Assembly Hardware
• Foot Stabilzier
• (2) M10-1.5 x 75mm Hex Bolts
• (2) 1.68" Stand-Offs
• (2) 3/8" Fender Washers
• TRAY DIMENSIONS:
  • Width Range: 10" - 15.25"
  • Side Arm Clamp Height: 0" - 1.875"
  • Depth Range: 7.625" - 10.625"
  • Tray Thickness: 1.26"
• HOLE PATTERN:Seat Bolt Distance: 12" center to center
• BALL SIZE:C Size (1.5")
• MATERIALS:Powder coated steel; Marine grade-aluminum; High strength composite
• PACKAGING TYPE:Box
• COMPATIBILITY:
  • Ford
  • Bronco (2021-2025)
  • Explorer (2020-2025)
  • Ranger (2019-2025)
  • Jeep
  • Compass (2019-2025)
