RGB2HDMI Amiga 500 UltraLong (Accelerator Friendly) HDMI Games, non-RTG A500
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
RGB2HDMI Amiga 500 UltraLong (Accelerator Friendly) HDMI Games, non-RTG A500
Price: US $50.00
New High-quality RGB2HDMI Ultra-Long for the Denise socket (Raspberry Pi Zero 1/2 required). This is probably the best quality flicker-free video possible from an Amiga. Box / Installation instructions areincluded. This is the ultra long version designed to allow extra space around the CPU in an Amiga 500.
High-quality Ultra-Long board with CPLD.
If this does not meet your spatial requirements check alternate designs: Best FlickerFixer RGB2HDMI Amiga HDMI Games, non-RTG A500 / A500 plus CPLD v2 | RGB2HDMI Amiga HDMI Games, non-RTG A500 / A500 plus | RGB2HDMI Amiga HDMI Games, non-RTG A2000 / A500 / A500 plus | Best FlickerFixer RGB2HDMI Amiga HDMI Games, non-RTG A2000CPLDSlot v2.2 | External RGB2HDMI Amiga Mac Atari Commodore & more Retro HDMI Games, non-RTG |
  • Fully assembled, Brilliant "Commodore blue" premium PCB with Xilinx CPLD.
  • CPLD version for maximum configure-ability/programmability and to avoid "sparkling pixel" artifacts.
  • button included* (see pictures)
  • works great for non-RTG standard display modes such as Games, boot screen, etc.
  • Pre-flashed and ready, but you will still need to install the software on the SD Card for the Pi.
  • All high-quality hardware components installed
  • on-screen menu that enables adjusting video including auto-calibration, flashing firmware, profiles, and more.
  • connect your monitor to the Raspberry Pi's HDMI port.
  • works with low-cost Raspberry Pi Zero and Raspberry Pi Zero 2 (with the latest software).
  • works with a small and economical SD Card in the Raspberry Pi Zero, like 1GB; the software only takes approx. 30MB (depending on version)
  • works well with most any expansion such as a PiStorm and Accelerators. Basically, it works independently.
  • automatically boots/shutoff with the Amiga

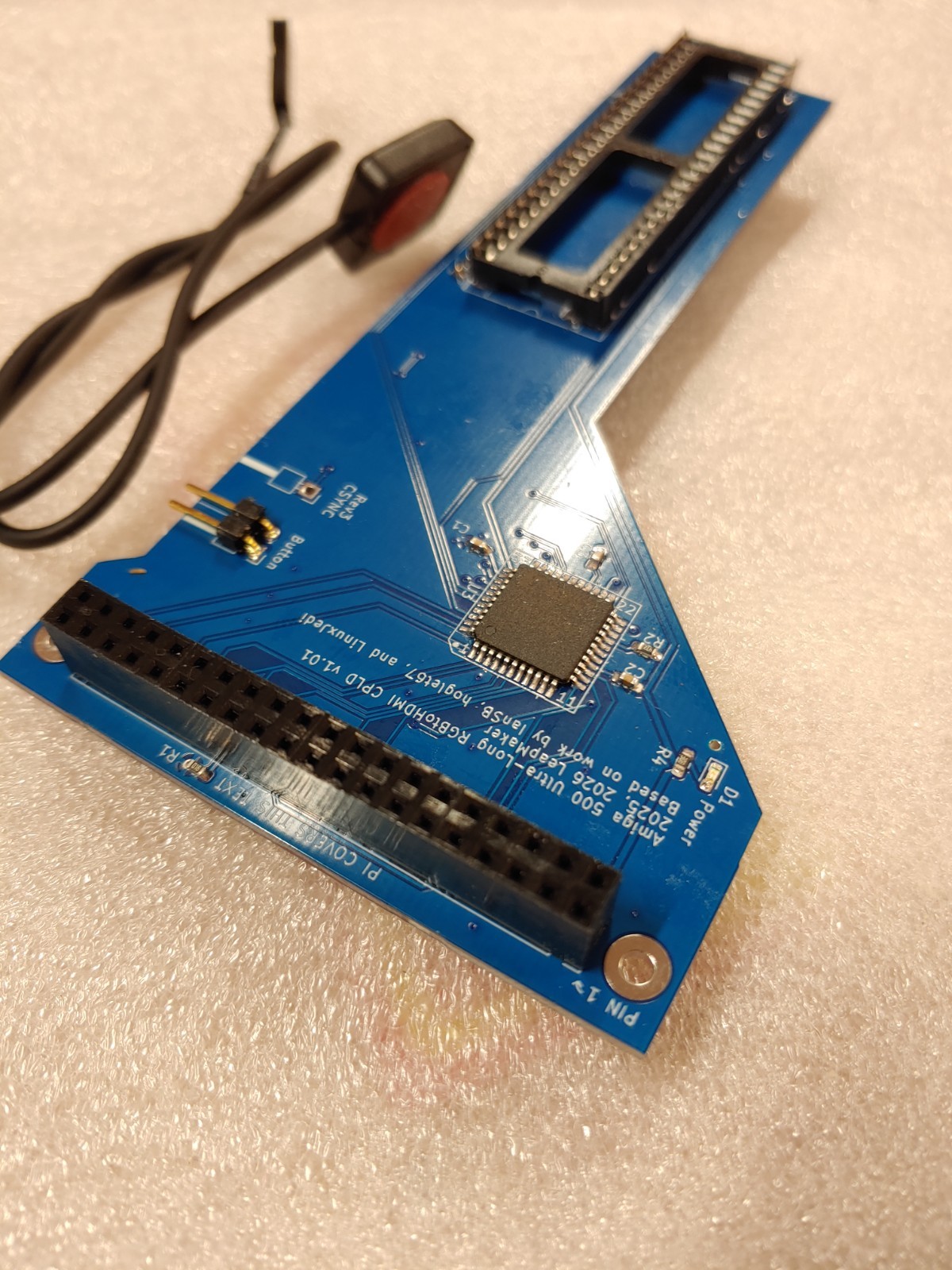

A500 CPLD board (plugs directly into the Denise socket and Raspberry Pi Zero)
What you will need (not included):
  • Raspberry Pi Zero, Raspberry Pi Zero 2, or Raspberry Pi 3/4 with Header Pins installed
  • SD Card to install the software.
  • Mini-HDMI cable or adapter to connect to a monitor.
  • You may need to modify your case to install the button and/or HDMI port, but this is up to you.
We reserve the right to change the shipping type/carrier when free shipping is selected to improve speed and/or cost
