Description:

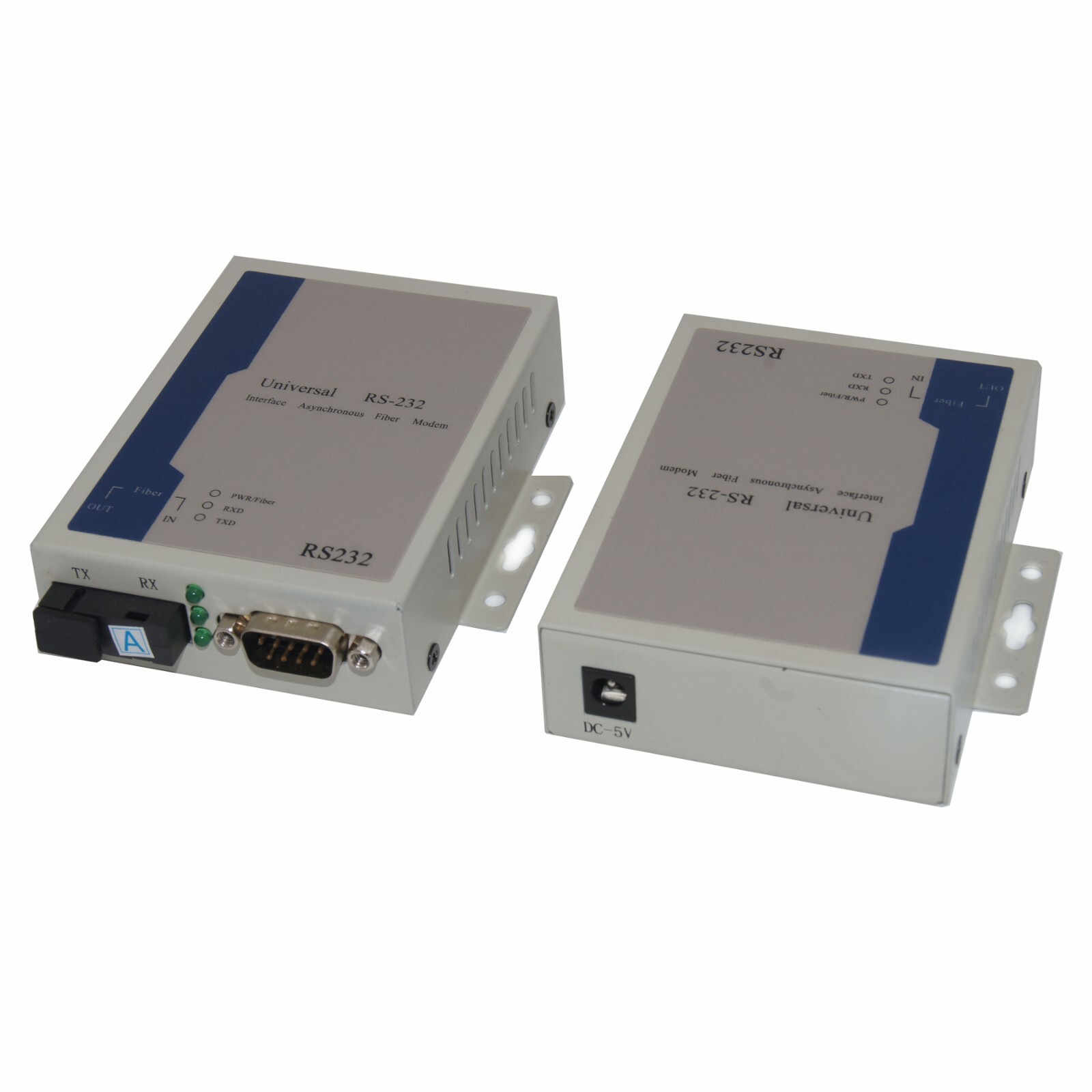

the item is a universal offerirectional RS-232 data over fiber optic extender. It is best choice for connecting a remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controller. The product uses optical fiber as the transmission medium, improve the transmission performance of the system, effectively avoid the harsh environment of lightning, surge and electromagnetic interference on the threat of communications equipment.

Features:

1. Zero delay automatically forwards

2. Asynchronous transmission, point to point use, RS232 data interface and fiber conversion

3. Automatically detect the serial port rate, identify and control the direction of data transmission

4. Communication rate: 120Kbps max.

5. Simplex SC optical port (FC is optional)

6. Fiber wavelength: 1310nm/1550nm.

7. Anti surge protection 1500W, 15KV electrostatic protection

8. Working distance: single-mode 20 km, Multi-mode 0~500m.

9. RS232 data transmission distance: 15 meters

Environmental requirements

Ambient temperature: -25 ℃～+70 ℃

Storage temperature: -45 ℃～+95 ℃

Relative humidity: 0～95% (no condensation)

Other specification:

Power supply: AC100~240V,DC5V (US/EU/UK/AU standard plug is optional)

Power consumption: 2.5 w

Weight: 0.8Kg/pair.

Package contents:

1x RS232 data Transmitter.

1x RS232 data Receiver.

2 x power supply adapter (US/EU/UK/AU standard plug is optional).

1x 3M fiber patch cord.

1 x User manual
