RackSolutions 122-2413 (also known as Raven 100-A)
1U Dry Slide Rail Kit for HP/HPE ProLiant servers

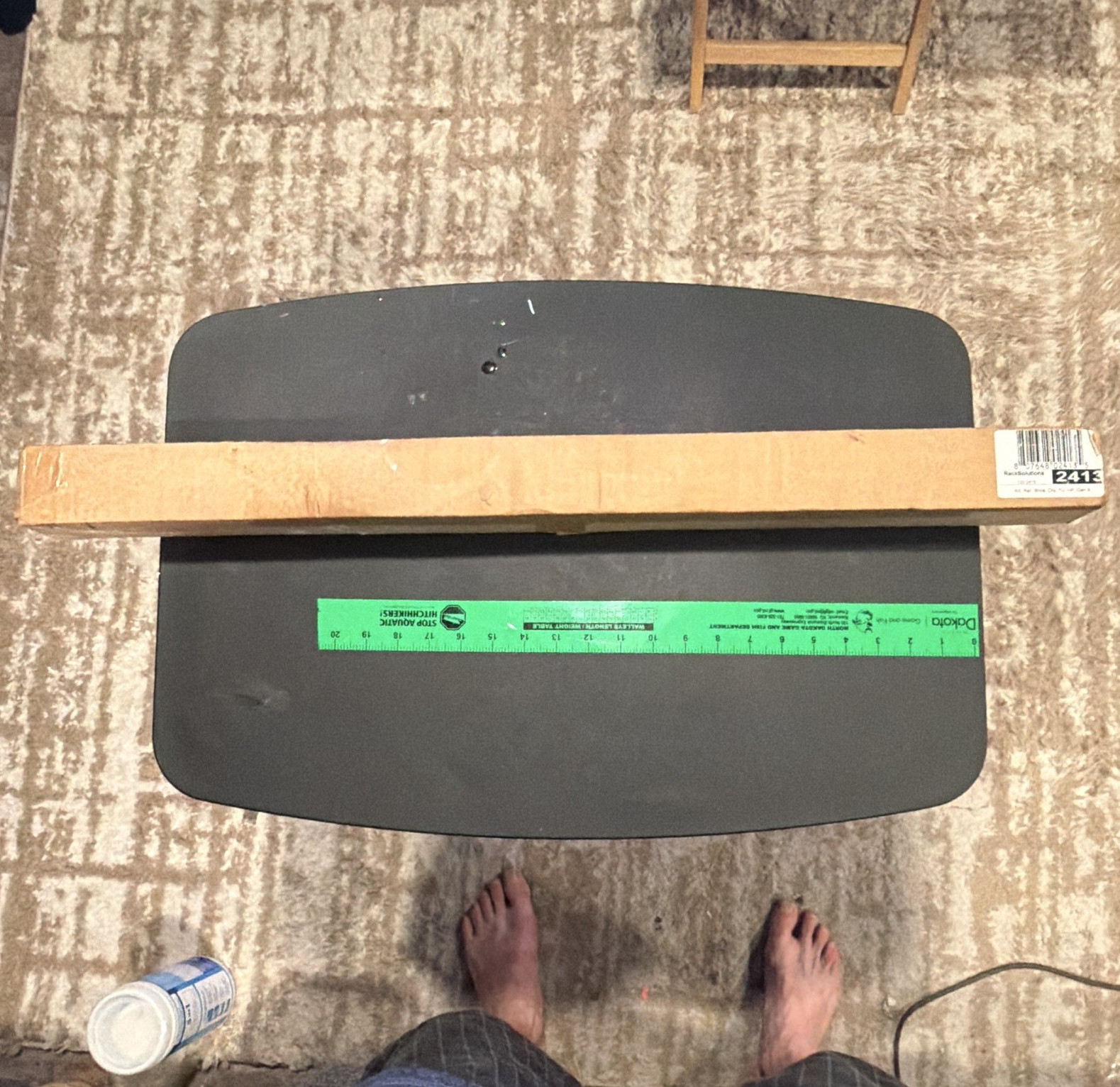

Original packaging with label:
Kit, Rail, Slide, Dry, 1U, HP, Gen 8
Part #: 122-2413
UPC: 807648024135
These are non-ball-bearing (dry slide) rails that allow the server to slide in and out of the rack. They are a direct alternative to the OEM HPE rail kits.
Compatible servers include:
• HPE DL320 Gen8
• HPE DL360 Gen8
• HPE DL360 Gen9
• HPE DL360 Gen10
• DL360e Gen8
• DL160 Gen8 / Gen9 / Gen10
• DL120 Gen9 / Gen10
• DL60 Gen9
• DL325 Gen10
(and similar 1U ProLiant models)
Key features:
• Adjustable mounting depth: 18” – 34.5”
• Works in both 2-post and 4-post racks
• Compatible with square, round, and threaded holes
• Supports L, C, Z and similar rack uprights
• TAA compliant / made in the USA
Note: These are dry slides (no ball bearings) and do not have a stop/catch mechanism, so the server can slide all the way out when servicing.
