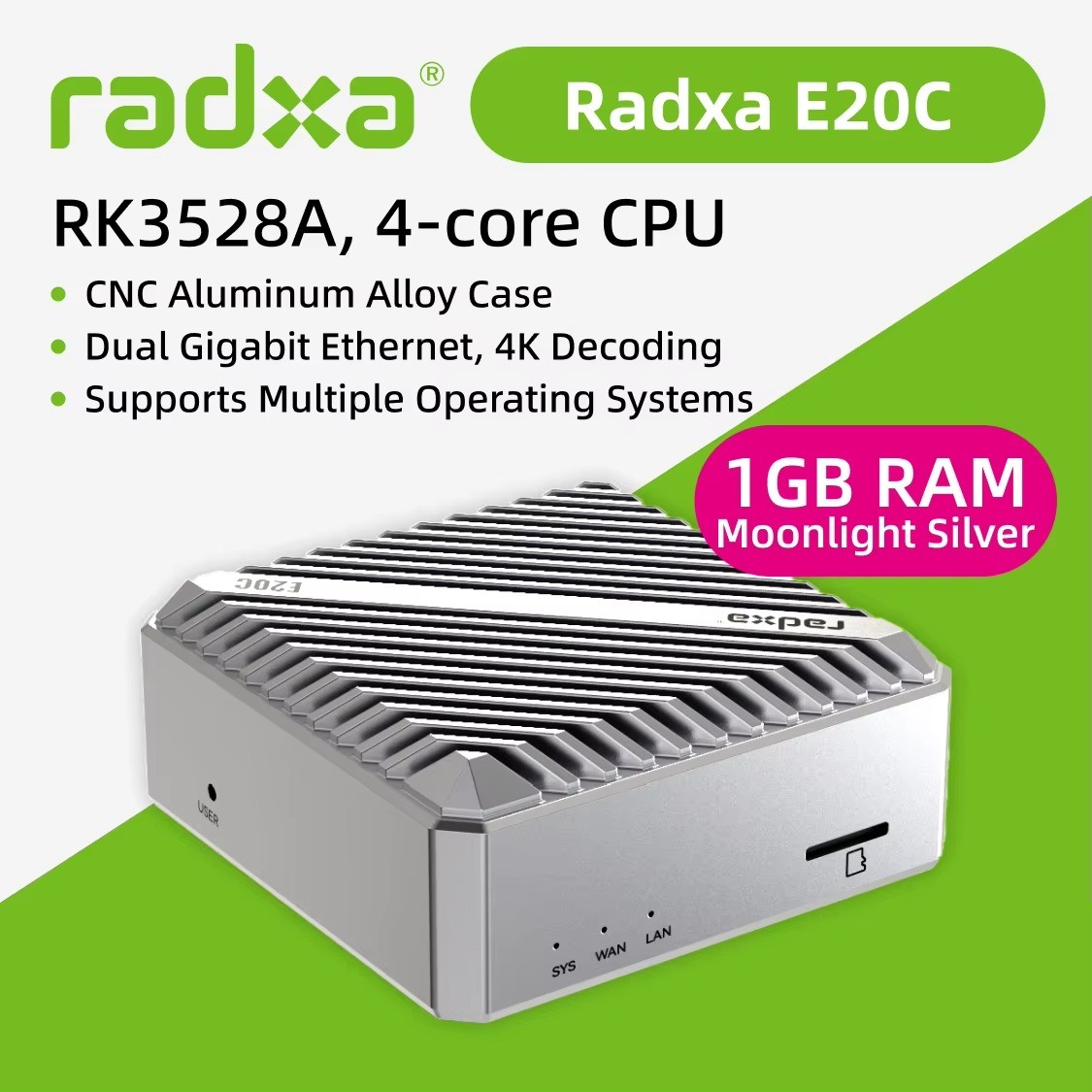

Radxa E20C Single Board Computer

Quad-Core CPU, Dual Gigabit Ethernet, CNC Aluminum Case, 4K Decoding

🚀 Key FeaturesQuad-Core Performance

Powered by the Rockchip RK3528A SoC with a quad-core ARM Cortex-A53 CPU and Mali-450 GPU for reliable edge computing.

Dual Gigabit Ethernet

Two independent Gigabit Ethernet ports make this board ideal for routing, NAS, and network appliance projects.

4K Video Decoding

Hardware decode of H.264, H.265 and AVS2 up to 4Kx2K@60fps, plus H.264/H.265 encoding at 1080p60.

Rugged Aluminum Case

Housed in a CNC-machined aluminum alloy enclosure that acts as a passive heatsink for silent, fanless operation.

📋 SpecificationsModelRadxa E20CSoCRockchip RK3528ACPUQuad-Core ARM Cortex-A53GPUARM Mali-450NPU1 TOPS @ INT8MultimediaH.264/H.265/AVS2 decode 4Kx2K@60fps; H.264/H.265 encode 1080p@60fpsRAMLPDDR4 (1GB/2GB/4GB options)StorageOnboard eMMC (8GB/16GB/32GB options) + microSD slotUSB1x USB 2.0 OTG Type-C (debug/data), 1x USB 2.0 Host Type-AEthernet2x Gigabit EthernetButtons1x Maskrom, 1x UserLEDsSystem, WAN, LANDimensions67mm x 67mm x 15mm🖼️ Product Images❓ FAQQ: What RAM/storage combinations are available?

A: Choose from 1GB/8GB, 2GB/16GB, or 4GB/32GB variations, in Black or Silver, with some options including a power adapter.

Q: Does this include a power adapter?

A: Only the variations labeled with 'Adapter' in their name include a power adapter. Other variations include the board only.

Q: What is this board best suited for?

A: Edge computing, network appliances (router/firewall/NAS), and lightweight media decoding tasks thanks to dual Gigabit Ethernet and 4K decode support.
