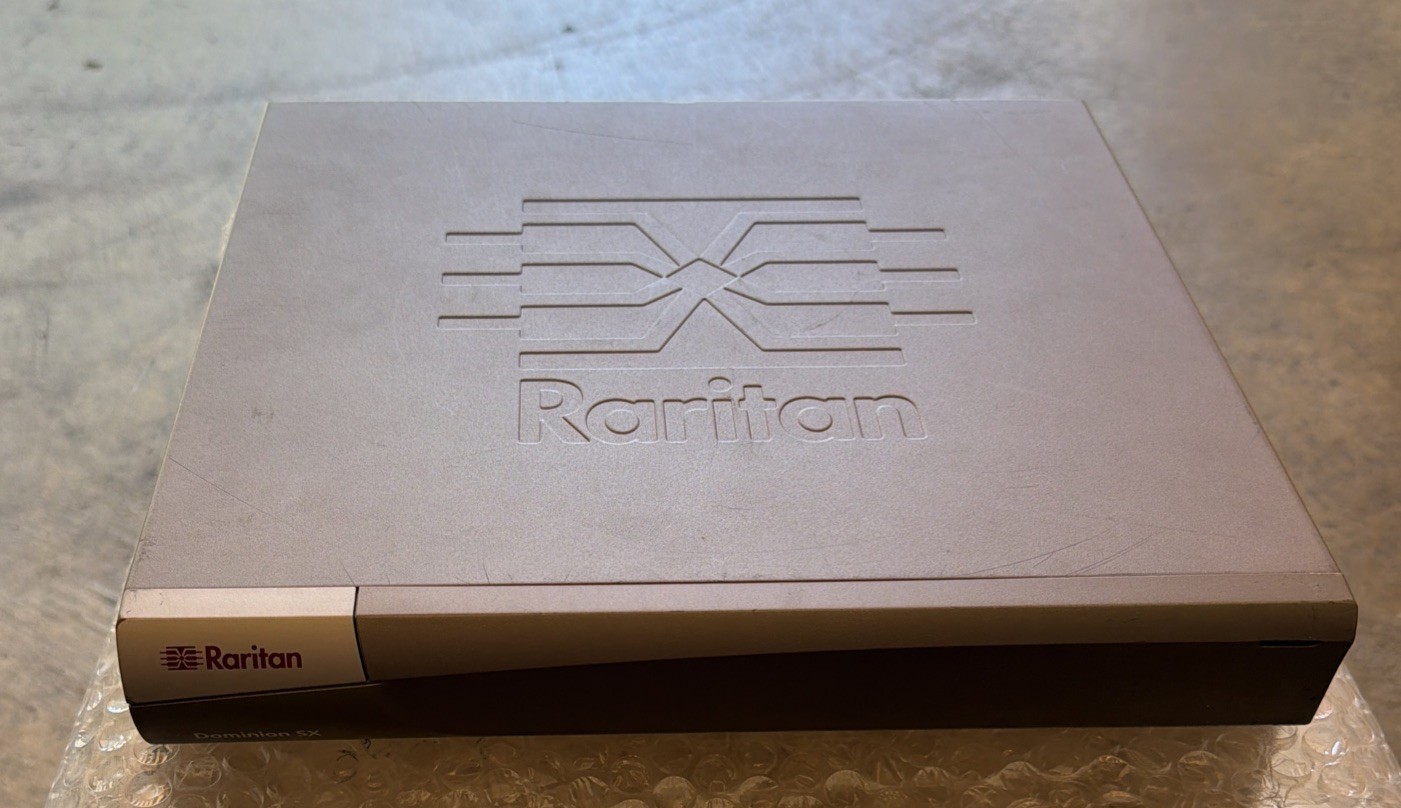

Lot of 2 Raritan Dominion DSXB-4-M(with internal model) 4x port RJ45 Serial Console Server with a Single AC port.
Pooled from the working environment for liquidation reasons. Verified and tested by network engineers, ready to use.SN WAL8700006

The Raritan Dominion DSX4 is a single-feed AC power, 4-port secure console server with 2 console ports. The DSX4 console server provides remote access to serially managed servers and other network devices anytime and anywhere via any Web browser. Up to 4 devices-including servers, routers, switches, VPNs and power strips-can be accessed and controlled via Dominion SX4. It is scalable for hundreds of users and thousands of devices. It's easy to install simple to use, secure and scalable.

With the Raritan DSX4, you get one point of control to manage users, serial servers and other IT devices including:

• Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
• WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
• Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
• Power Control: All serially controlled power strips and UPS

Dominion SX Installation Diagram

Raritan Dominion SX Features and Benefits:

• Intelligent auto-failover on dual-LAN models
• Single appliance - No additional software
• Access via web browser/SSHv2/Telnet
• Standard built-in modem
• RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
• Local console port for at the rack access
• Secure appliance - user has no access to operating system
• Local and remote buffering/logging
• Broadest range of supported browsers: IE, Firefox, IE
• SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
• Dynamically resizable VT100 windows with dynamic font-resizing
• Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
• HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
• Full modern CLI- GUI equivalence
• IPMI support- Allows for discovery and management of IPMI enabled servers
• Port keyword monitor and alert
• VT220/320/ANSI Support
• NFS logging
• Single IP Address for administration and target connection

DSX Security & Authentication:

• Fully featured firewall
• Man In The Middle (MITM) attack mitigation
• TCP port addressing for Telnet and SSHv2
• Local user groups
• Flexible strong password support
• Customizable login & consent banner
• Enhanced encryption options
• Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
• Primary and secondary servers are supported
• User defined and installable security certificates
• Target server disconnection option
• Disabling authentication and authorization
• Disable local authentication option
• SSL with RC4 encryption
• User ID and Password

Raritan DSX4 Specifications:

MechanicalHeight1.75 in. (44 mm.)Width11.34 in. (288 mm.)Depth10.7 in. (270 mm.)Form factor1U, rack mountable (bracketsnotincluded)Weight4.61 lbs. (2.08 kg.)PortsSerial ports4EnvironmentalOperating Temperature32°F (0°C) to 104°F (40°C)Humidity20% - 85% RH non-condensingAltitudeOperates properly at any altitude between 0 to 10,000 feetPower110/220V auto-switching: 50-60 Hz; 36-72V DCRemote ConnectionNetwork10/100 Ethernet (RJ45) port - one or twoProtocolsTCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMPModem ConnectivityDedicated Modem PortApprovalsCE, FCC Part 15 Class A, US and Canadian UL, VCCI-A
