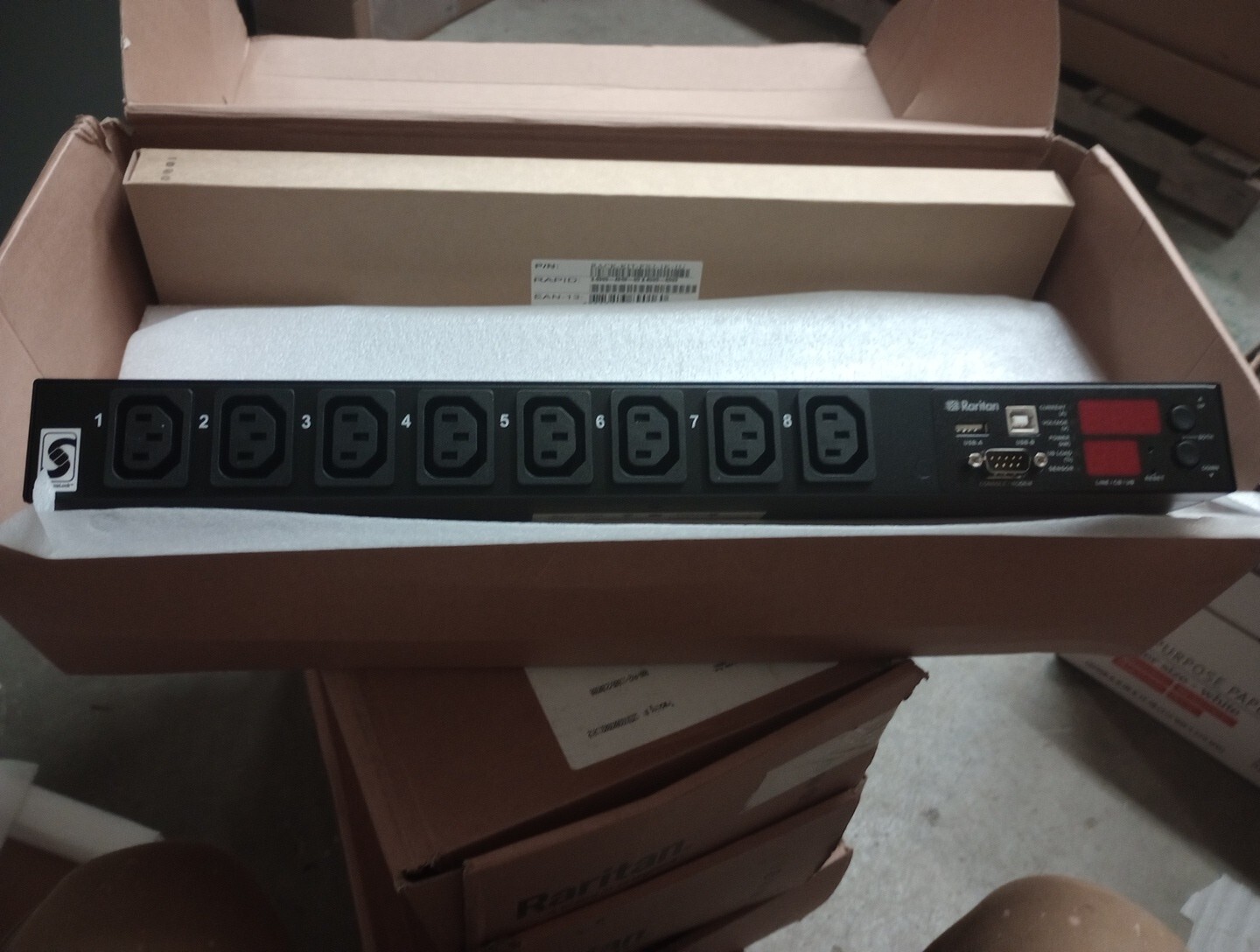

Raritan PX2-1180R Rackmount Monitored 8-Outlet Power Distribution Unit PDU - New

Product Description

The Raritan PX2-1180R is a part of the PX-1000 family of high-quality rack power distribution units (PDUs). These PDUs offer real-time remote unit-level power monitoring of current (amps), voltage, power (kVA, kW), power factor and energy consumption (kWh) with ISO/IEC +/- 1% billing-grade accuracy. The PX2-1180R also supports Raritan's plug-and-play environmental sensors. Users can define thresholds and receive alerts when thresholds are crossed for both power and environmental events.

The PX-1000 series is available in Zero U (vertical mount) and 1U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. Precise power information can be monitored, and the PX-1000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-1000 series is fully compatible with Raritan's Power IQ energy management software solutions.

Raritan PX2-1180R's Input:

• Nominal voltage: 208V AC

• Maximum line current per phase: 20A

• Rated current: 16A per phase

• Load capacity: 3.3 kVA

• Frequency: 50-60 Hz

• Plug type: NEMA L6-20P

Raritan PX2-1180R's Output:

• Nominal voltage: 208V AC

• Maximum current draw: 20A per circuit

• Unswitched receptacles: 8 x IEC C-13

Raritan PX2-1180R's Technical Specifications:

Inlet

Kilowatt hours (kWh), current (Amps), voltage, power (kVA, kW), power factorRack Environment ManagementOptional temperature and humidity sensors (RJ-12 connector)Interface and Protocol Support10-100 Mbps Ethernet (RJ-45 connector)

RS-232 serial (DB9 connector)

Feature/KVM (RJ-45 connector)

USB-A (host). USB-B (device)

SNMPv2, v3 TRAPs, GETs, SETs

Web browser and command line interface accessMechanical Rack space:

1UMounting:Rack mount brackets includedDimensions (WxDxH):17.3" x 5.2" x 1.7"; 440 x 133 x 44mmWeight:7.8 lbs; 3.6 kgDisplay panel:Autoflip LED for PDU current (A), voltage, power (kW)Sensor indicator

 Line cord:10 ft / 3 mColor:Black powder coatShipping dimensions (WxDxH):22.8" x 17.2" x 14.0"; 580 x 437 x 355mmShipping weight:10.7 lbs; 4.9 kgEnvironmental Requirements Operating temperature:5-60 degrees CelsiusHumidity:5-90% RH non-condensingAltitude:10,000 ft
