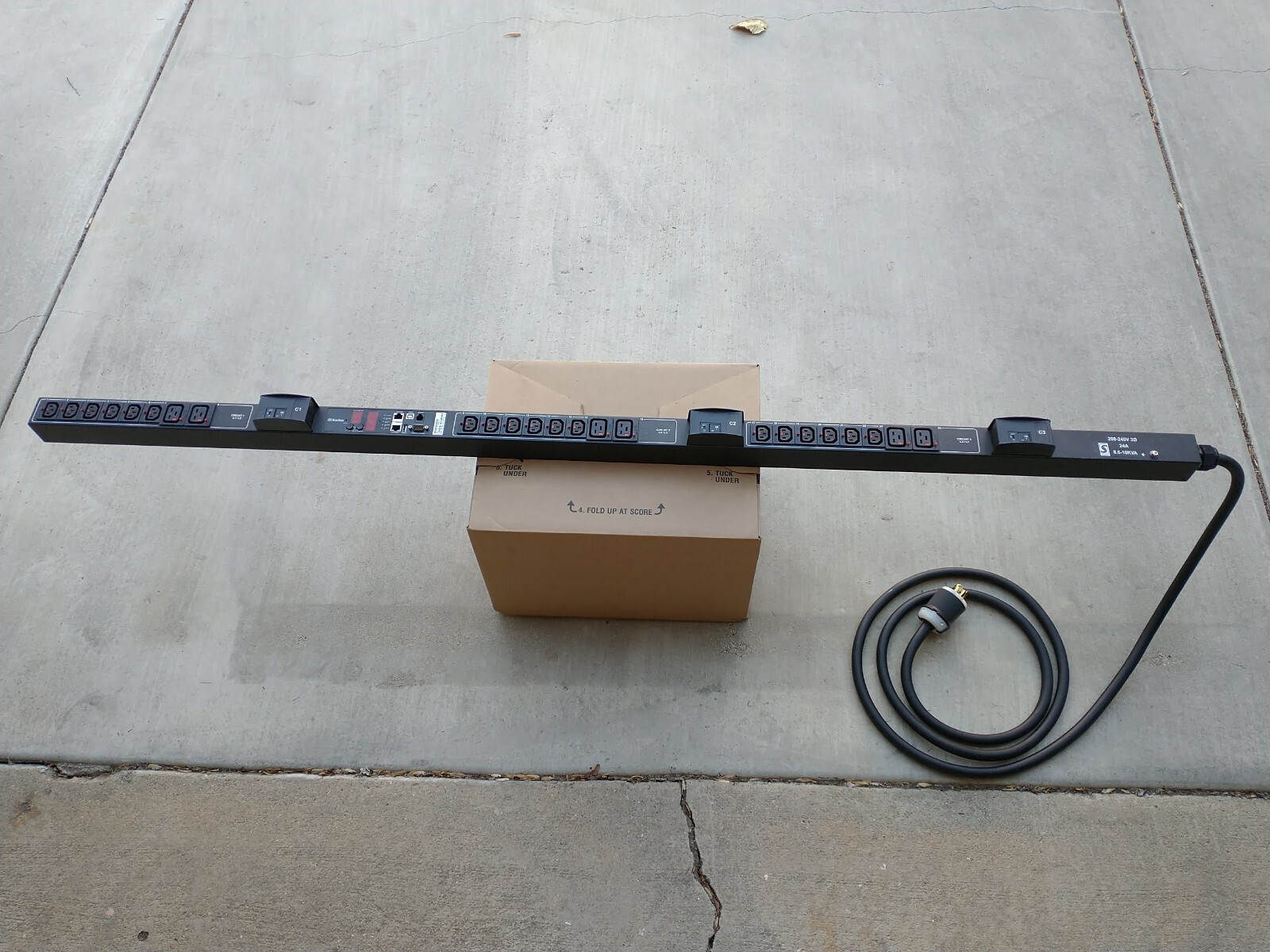

Raritan Rack Distribution Unit PX2-1525V-E2Used - good condition
Note: Technicial specifications and diagrams can be downloaded at the Raritan website. Below is a excerpt from the website.
Technical SpecificationsRaritan Model Number: PX2-1525V-E2208V, 3Φ Delta24A, 8.6kVA
FEATURESEnergy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA),Energy (kWh), Power FactorMetering Accuracy ISO/IEC 62053-21 1%Metering per Input Line YesMetering per Branch Circuit Breaker YesMetering per Output Receptacle NoRemote Outlet Switching NoEnvironmental Sensor Ready YesReplaceable Controller NoCompatible Sensors Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact ClosureNetworking (10/100 BaseT) Ethernet port. Optional WiFi (802.11a/b/g/n)Remote Management HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPCCascading Yes, Max 8 PDUs can be daisy chained using USB connectionOnboard Display 3-digit LED user-selectable display : Voltage, current, or active power(per line or per breaker); Auto-flip orientationEmbedded Processor ARM9 400MHZ (Atmel SAM9G20), 16MB NOR Flash, 64MB SDRAM
INPUTInput Plug NEMA L15-30P (3P4W)Cord Length 3 meters (9.84 feet) standardCord Entry Bottom-bottom feedCable Type IP44("splashproof")Number of Power Cords 1Maximum Input Current 30ANominal Input Voltage 208V 3 phaseRated Input Voltage 208 - 240V 3 phaseInput Frequency 50/60HzPower Capacity 8.6kVA at 208V, 10.0kVA at 240V
OUTPUTNominal Output Voltage 208VRated Output Voltage 208 - 240VReceptacles (Output Connections) (18) IEC60320 C13 Locking, 12A(6) IEC60320 C19 Locking, 16ASecurelock Support YesCord Retention NoOverload Protection (3) LEGBX66-20
PHYSICALColor Black powder coat (custom colors available)Unit Dimensions (WxDxH) 2.1" x 2.1" x 70.1" ; 52mm x 53mm x 1780mmUnit Weight 7 kgShipping Weight 9 kgShipping Dimensions (WxDxH) 11.02" x 4.53" x 80.91" ; 280mm x 115mm x 2055mmMounting Tool-less button mount
ENVIRONMENTALOperating Temperature 60°COperating Relative Humidity 85%Operating Elevation 0-10000ft
CONFORMANCERegulatory Approvals UL Listed, Canada ICES-003, Part 15 Class A of the FCC rules,RoHS compliant
